24S 10AMP ACTIVE BALANCER (DALY) (4a31)

24S/10AMP ACTIVE BALANCER (DALY)

Product Data Sheet

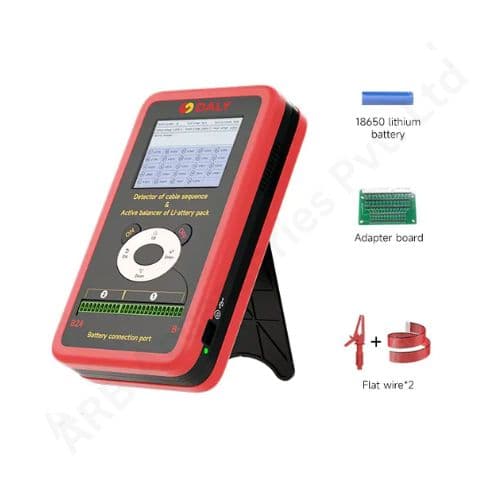

• •Product Name: Detector of cable sequence & active balancer of Li- battery Pack
• •Li-ion battery: 18650 3AH
• •Active balance current: 10A
• •Voltage range of battery cells to be tested: 4.25V
• •Voltage difference for starting balance: 3000mV
• •Storage temperature: -40°C~85°C

At present, EV batteries and energy storage batteries are widely used. Inspection and maintenance of the above batteries can effectively prolong battery life. This product plays an important role in protecting battery pack and BMS. It can quickly detect the voltage of up to 24 batteries at the same time and automatically analyze and compare the voltage of each battery. Also, it can perform cable sequence detection and active balance with balancing current up to 10 amps. With the function of cable sequence detection, it can effectively identify the sequence of sampling cable. It has the characteristics of high acquisition accuracy and fast balance. And it has a clear LCD and is easy to operate, practical, reliable, portable, and cost-effective. Therefore, considering the above features, it is suitable for battery manufacturers, dealers, repair shops, and DIY individual users to conduct multi-cell batteries detection, analysis, and maintenance.
