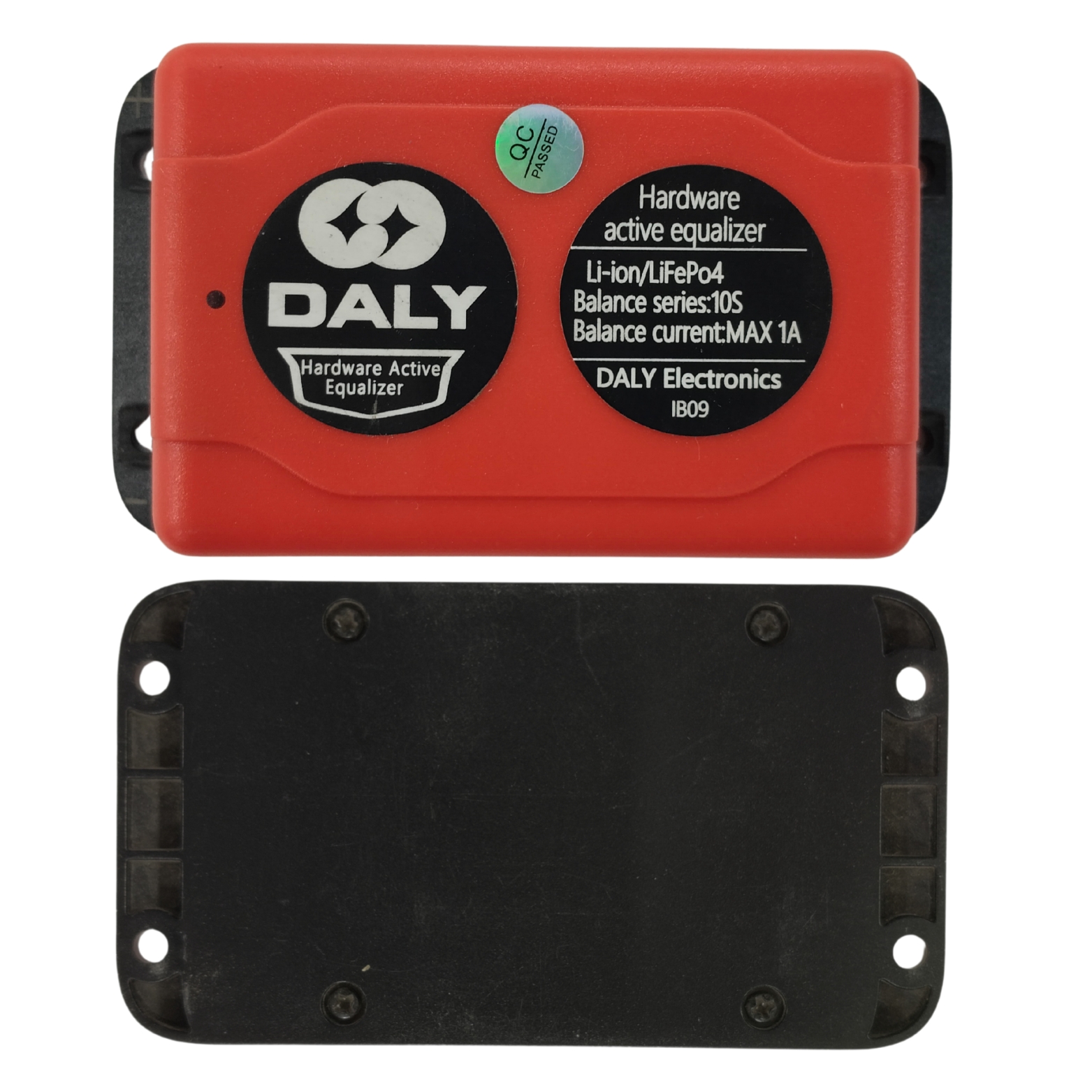

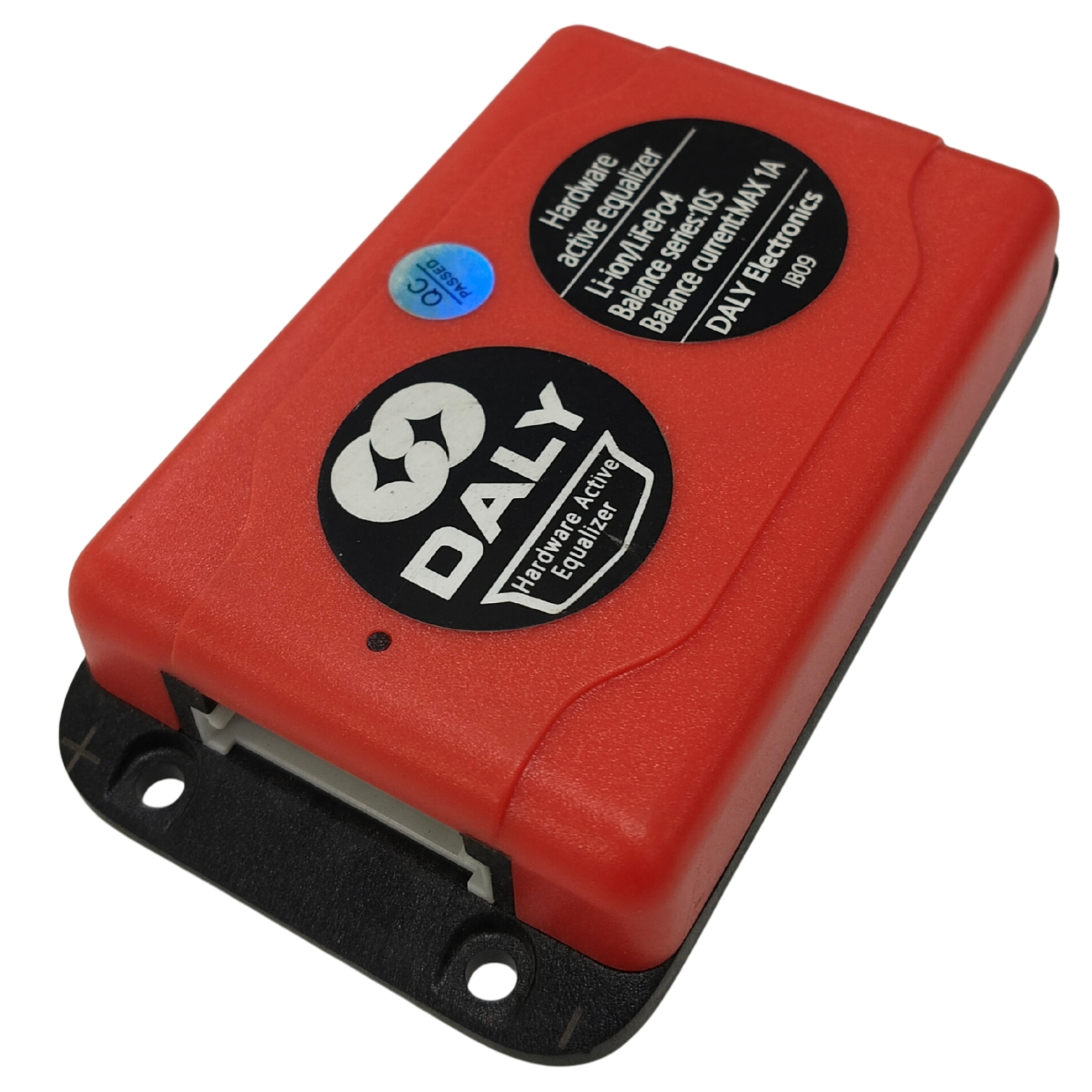

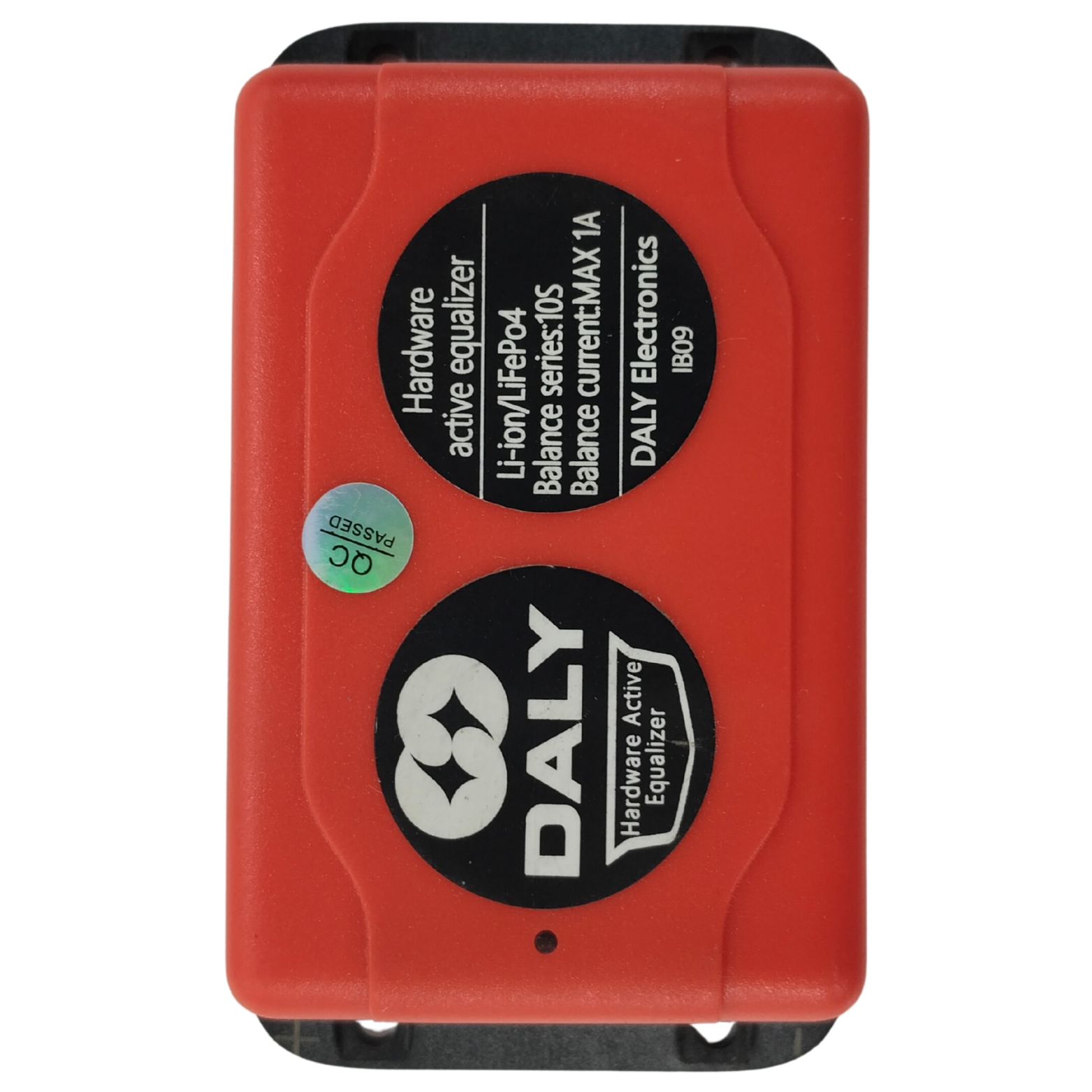

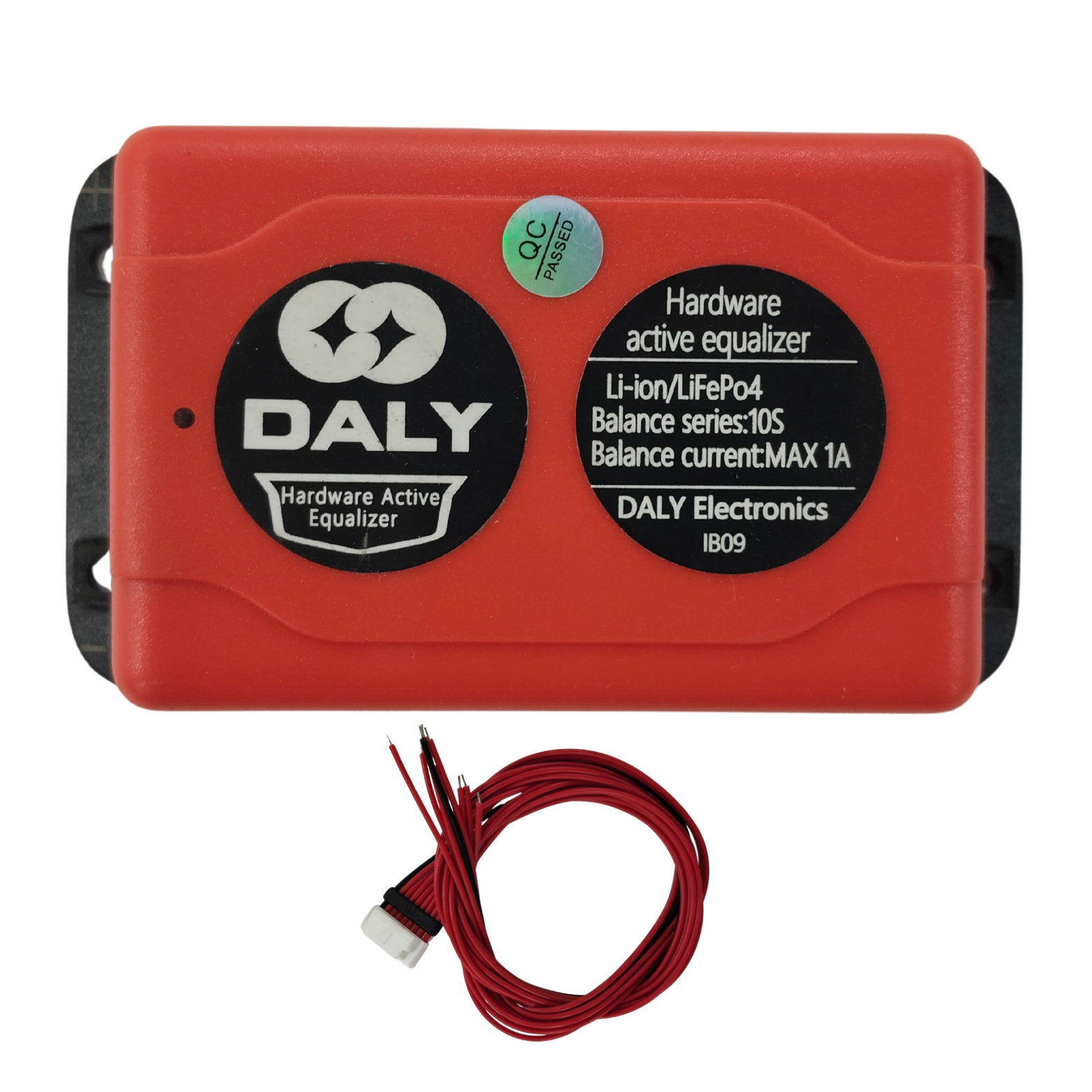

ACTIVE BALANCER 10S 1A H/W DALY (48ec)

DALY 10S 1A Hardware active Balancer

Product Data Sheet

• •Hardware active equalization specification
• •Number of battery pack strings - 10S
• •Balance current ≤1A
• •Balance mode - Active equilibrium
• •working temperature -20°C~60°C

Because the battery capacity, internal resistance, voltage and other parameter values are not completely consistent,this difference causes the battery with the smallest capacity to be easily overcharged and discharged during charging, and the smallest battery capacity becomes smaller after damage, entering a vicious cycle. The performance of single battery directly affects the charge and discharge characteristics ofthewhole battery and the reduction of battery capacity.BMSwithout balance function is just a data collector,which is hardly a management system.BMS active equalization function can realize the maximum continuous 1Aequalization current.Transfer the high-energy single battery to the low-energy single battery, or use thewhole group of energy to supplementthe lowest single battery.During the implementation process,the energy is redistributed through the energy storage link, so as to ensure the battery consistency to the greatest extent, improve the battery life mileage and delay the battery aging.
