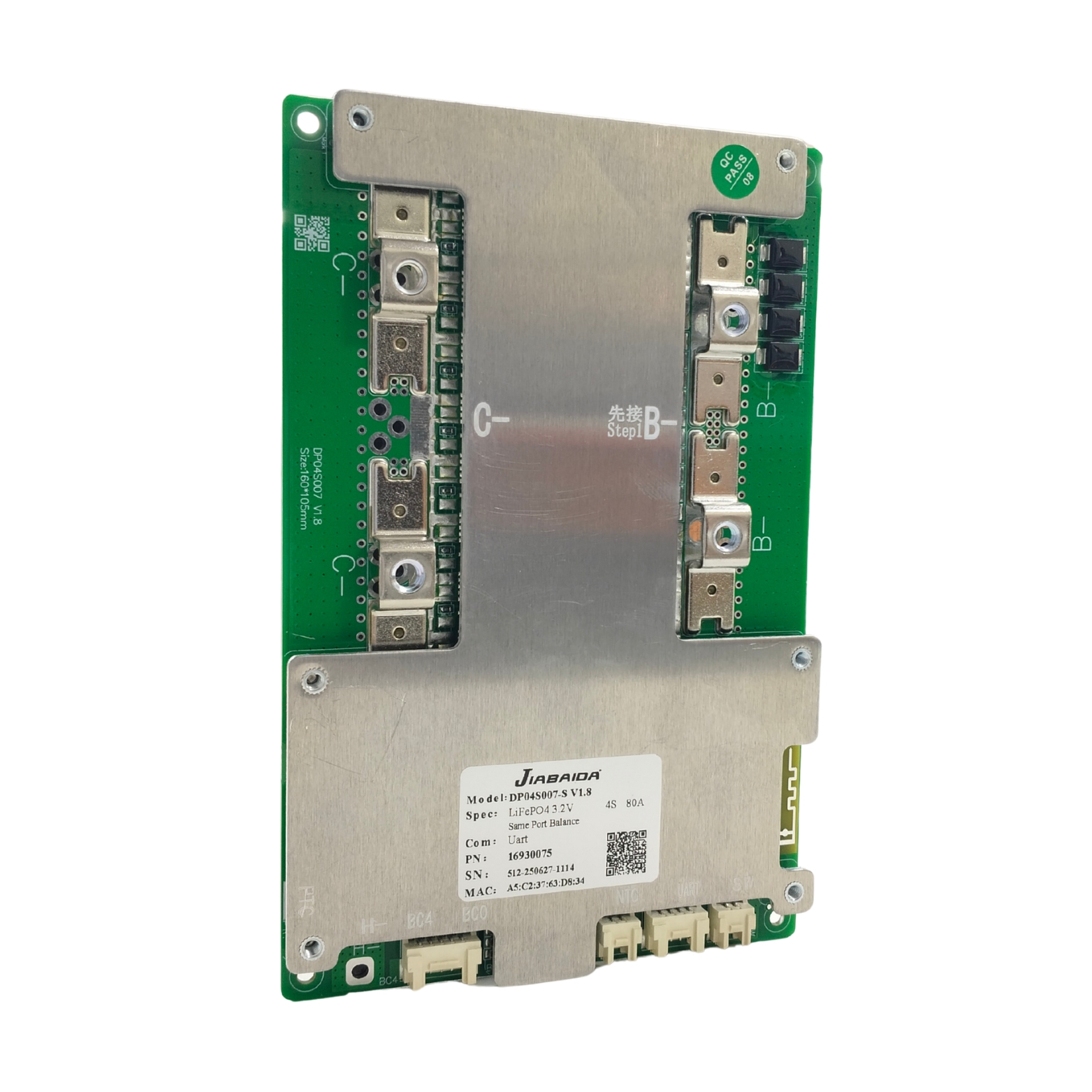

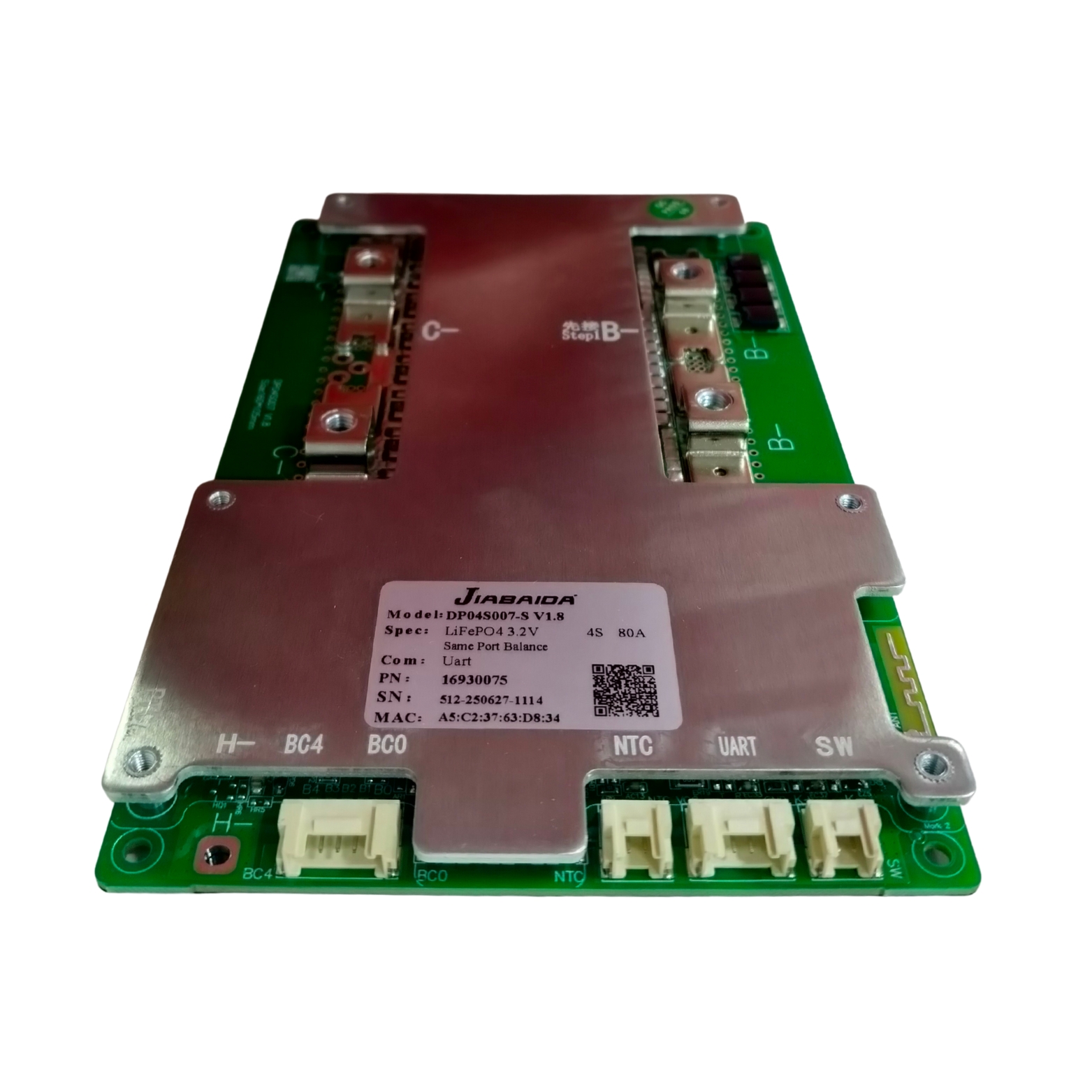

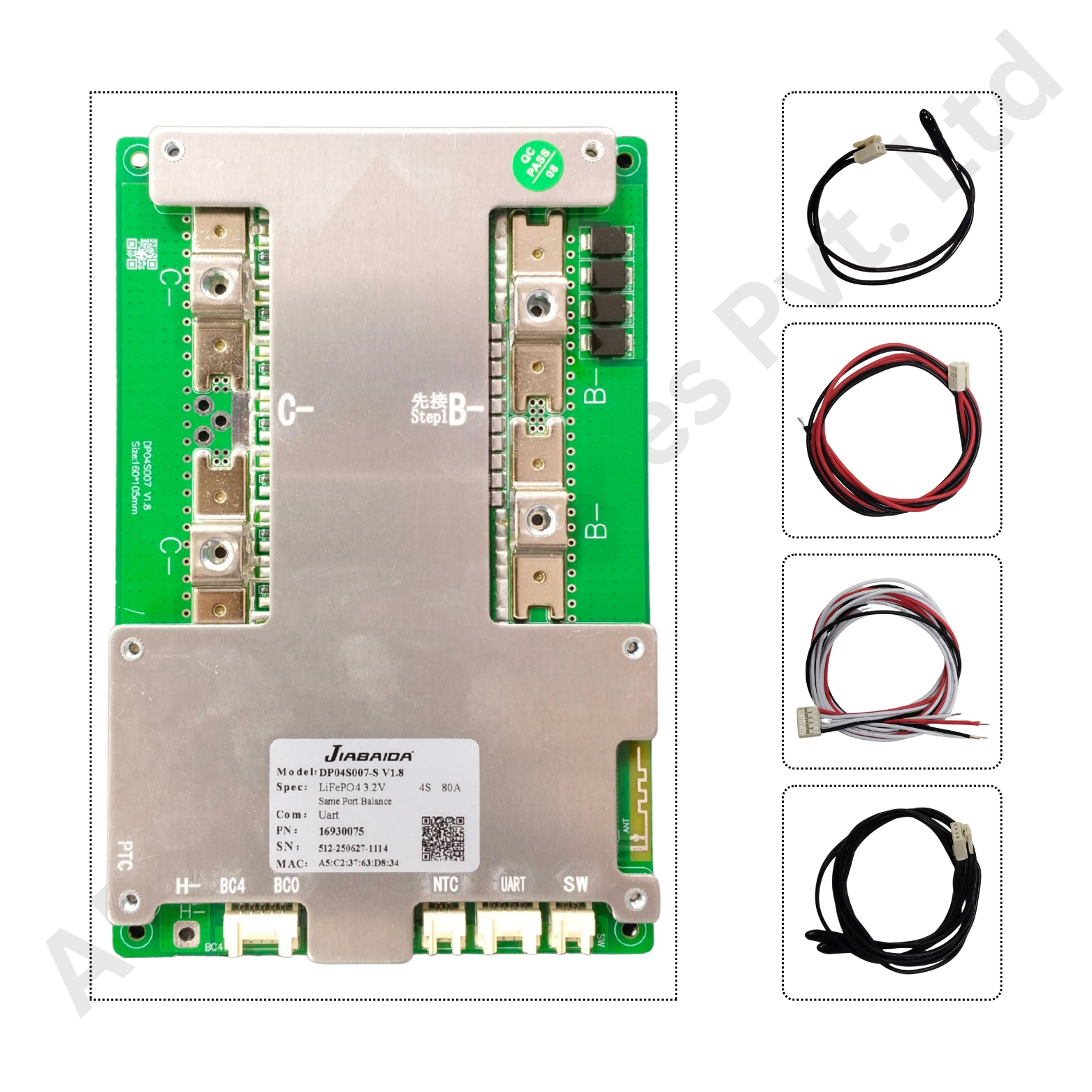

JBD Smart BMS 3-4S 80A (DP04S007) Charge and discharge are both at the same port

Product Data Sheet (DP04S007)

• •Cell specifications: 3~4 strings of LiFePO4 battery
• •Continuous current: 80A
• •Balance detect Voltage 3.8
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.6V*Number of strings
• •Cell voltage range: 2.30~3.75V
• •Continuous charging current: 80A
• •Continuous discharging current: 80A

The JBD SMART BMS 80A DP04S014 (3-4S) is a robust Battery Management System designed for lithium-ion and LiFePO4 battery packs with 3 to 4 series cells. It supports a continuous discharge current of 80A, making it suitable for moderate to high-power applications, including electric vehicles, power tools, and portable energy storage systems. The BMS offers critical protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature management, ensuring safe and efficient operation. It also includes active cell balancing to maintain uniform voltage across all cells. With UART, RS485, and CANBUS communication support, along with Bluetooth for real-time monitoring and diagnostics, it provides effective management and flexibility for various applications.
