BMS ACCESSORIES -BT (JBD) (b159)
Minimum Quantity: 1 PCS
Product Description
The Bluetooth Module is a communication interface accessory for JBD (Jiabaida) BMS units. It allows users to wirelessly connect their Li-ion or LiFePO4 battery packs to mobile apps, making battery monitoring and parameter tuning fast, easy, and intuitive.
Ideal for e-bike batteries, solar energy storage systems, portable power stations, and more — this Bluetooth dongle puts control in the palm of your hand.
Key Features
- •
Wireless Communication via Bluetooth Easily pair your smartphone with your JBD BMS system. Monitor voltage, temperature, SOC, charge/discharge status, and more in real-time.
- •
App Compatibility (Android/iOS) Fully supported by the official Xiaoxiang BMS or JBD BMS mobile app, available on Google Play and the App Store.
- •
Plug-and-Play Interface Simply connect to the UART/COMM port of your JBD BMS. No external power supply or complex wiring needed.
- •
Compact and Lightweight Ultra-compact PCB design with a protective plastic housing included. Ideal for embedding in battery enclosures.
- •
Stable Signal & Low Power Consumption Uses BLE (Bluetooth Low Energy) for reliable, efficient communication with minimal battery drain.
- •
Real-Time Data & Parameter Editing Configure overcharge/undercharge protection, cell balancing, temperature thresholds, and more — all wirelessly.
Technical Specifications
| Parameter | Details |
|---|---|
| Compatibility | JBD Smart BMS (Li-ion/LiFePO4) |

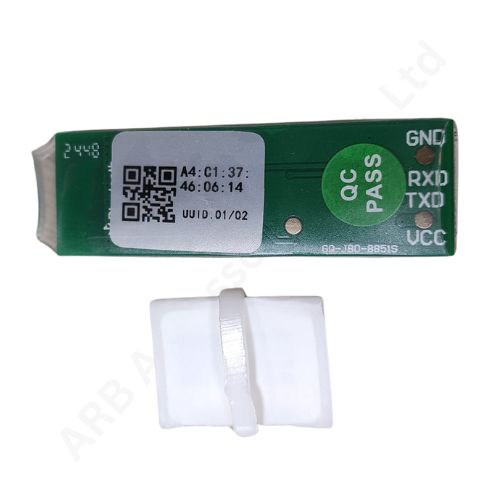

| Interface Type | UART (4/5-pin connector) |
| Bluetooth Version | BLE 4.0 / 5.0 (varies by chipset) |
| Supported Apps | Xiaoxiang BMS, JBD Tools |
| Input Voltage | 3.3V – 5V (powered by BMS) |
| Operating Range | Up to 10 meters (open space) |
| Dimensions | Compact PCB, ~25mm length |

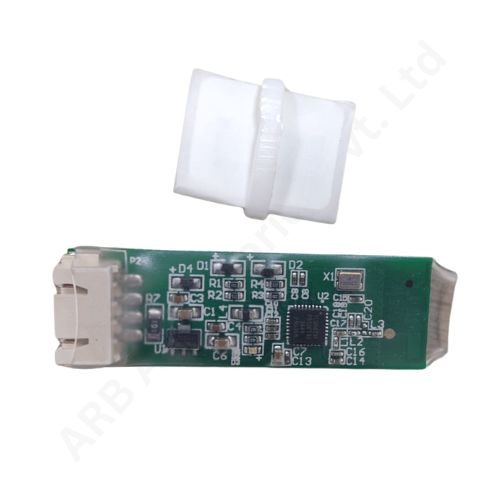

| Included | BT Module PCB + White connector shell |
How to Use
- •Plug the module into the UART/COMM port of your JBD BMS.
- •Download the Xiaoxiang BMS or JBD app on your phone.
- •Power on your battery pack.
- •Open the app and search for the Bluetooth device.
- •Connect and start monitoring or configuring instantly.
Ideal For
- •E-bike and e-scooter battery packs
- •Solar energy storage systems
- •DIY lithium battery builds
- •Portable power stations
- •Backup battery systems
SEO Tags & Search Phrases
Tags: jbd bluetooth bms, jbd b159 module, bluetooth bms adapter, xiaoxiang bms module, smart bms communication, jbd uart bluetooth
Search Phrases:
- •Buy JBD BMS Bluetooth module online
- •B159 Bluetooth adapter for lithium battery BMS
- •Wireless monitoring for JBD Smart BMS
- •Connect JBD BMS to phone via Bluetooth
- •JBD BMS communication module for Android/iOS
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- b159
- Product Name
- BMS ACCESSORIES -BT (JBD) (b159)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Similar Products

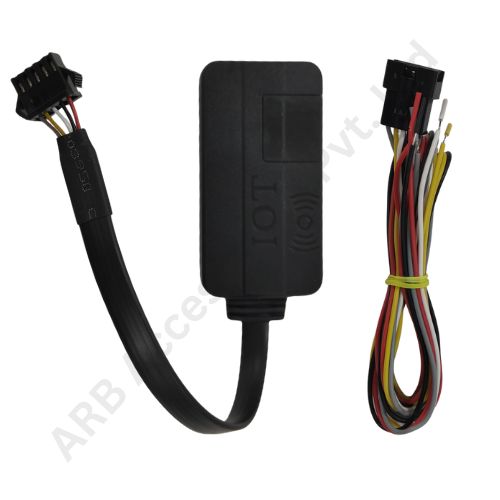

PS11 IOT DEVICE ( FOR JBD SOFTWARE BMS ) (b8d2)

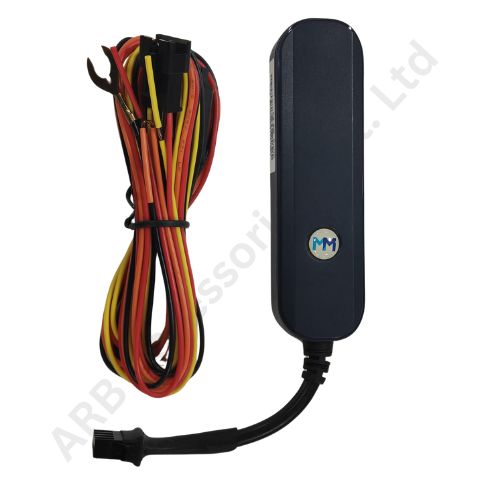

2G GPS DEVICE ( FOR HARDWARE BMS ) (b8d3)

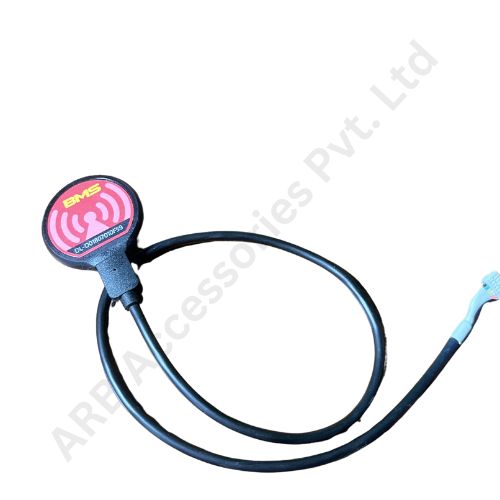

BMS ACCESSORIES -BT(K TYPE) (8595)
