DALY BMS LFP 12S 40A

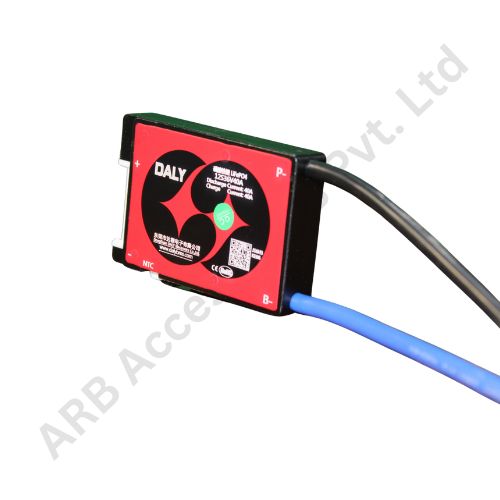

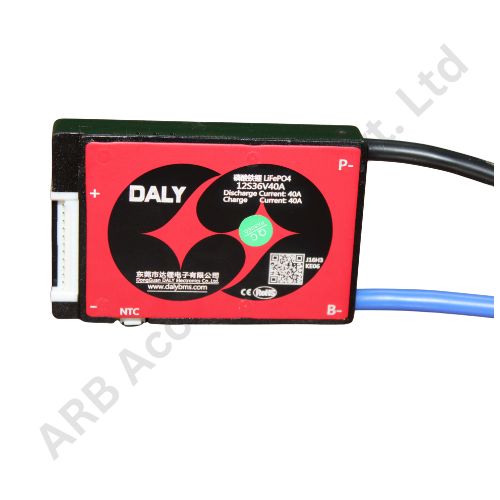

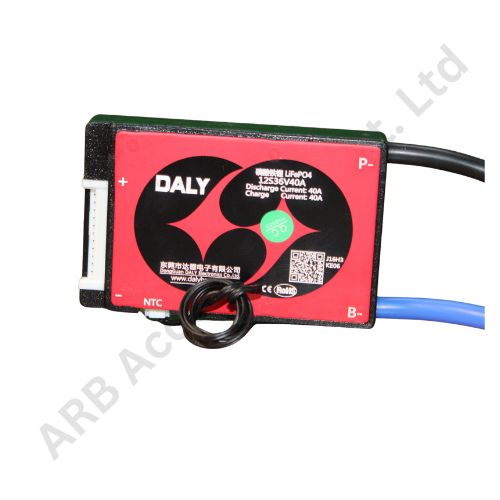

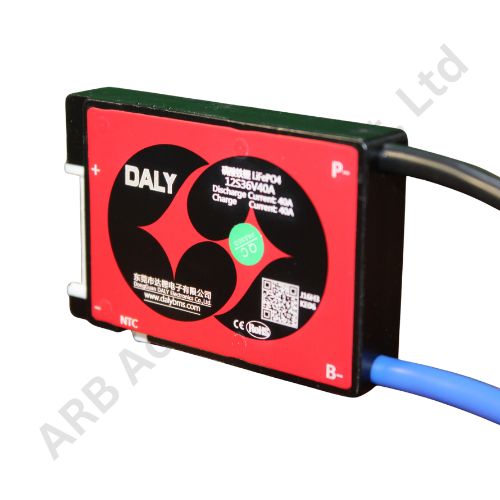

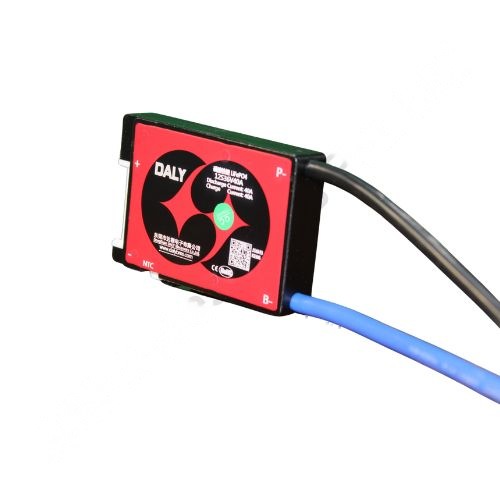

Daly BMS LFP 12S 40A Waterproof - Advanced Battery Management System

Product Data Sheet J16H3 Product Data Sheet

The Daly BMS LFP 12S 40A Waterproof is a cutting-edge Battery Management System (BMS) designed for Lithium Iron Phosphate (LiFePO4) battery packs. This 12S (12-cell series) BMS ensures the highest level of safety and efficiency by protecting against overcharge, over-discharge, short circuits, and temperature fluctuations. With its IP65 waterproof rating, this BMS is suitable for marine, solar, electric vehicle (EV), and off-grid applications.

Key Features

• •Advanced Protection Circuitry: Prevents overcharge, over-discharge, overcurrent, and short circuits.
• •Waterproof & Dustproof Design: Built to perform reliably in harsh environmental conditions.
• •Efficient 40A Continuous Current: Ensures stable power output for high-demand energy systems.
• •Optimized for 12S LiFePO4 Batteries: Designed to work seamlessly with 38.4V battery packs.
• •Smart Battery Balancing: Maintains equal cell voltages to prolong battery lifespan.
• •Compact & Lightweight: Easy installation for various applications.

Technical Specifications

• •Brand: DALY
• •Model: J16H3
• •Battery Type: LiFePO4 (LFP)
• •Nominal Voltage: 38.4V (12S)
• •Balancing Current: 70±25mA
• •Charge Voltage: 43.8V
• •Discharge Cutoff Voltage: 30V
• •Continuous Discharge Current: 40A
• •Continuous Charge Current: 40A
• •Waterproof Rating: IP65
• •Operating Temperature: -20°C to 60°C

Applications The Daly BMS LFP 12S 40A Waterproof is the perfect power management solution for various applications:

Electric Vehicles (EVs) & E-Bikes Provides efficient battery protection and power regulation for electric bicycles, scooters, and small EVs.

Solar Energy Storage & Off-Grid Systems Ideal for solar battery banks, off-grid living setups, and renewable energy storage.

Marine, RV, & Camper Applications The waterproof feature makes it a reliable choice for boats, yachts, campervans, and RVs.

Home & Industrial Backup Power Perfect for UPS systems, home energy storage, and backup power solutions.

Why Choose Daly BMS LFP 12S 40A Waterproof?

1. •Reliable & Safe Performance: Prevents damage to battery cells, ensuring longevity and efficiency.
2. •Waterproof & Durable Design: With IP65 waterproofing, it operates safely in outdoor and marine environments.
3. •Enhanced Battery Balancing: Extends the lifespan of LiFePO4 batteries through efficient energy distribution.
4. •Wide Range of Applications: Ideal for EVs, solar systems, marine power, and industrial energy storage.
