BMS LFP 15S 100A SMART CAN ESS DALY (R16L-V3.3) (77a9)

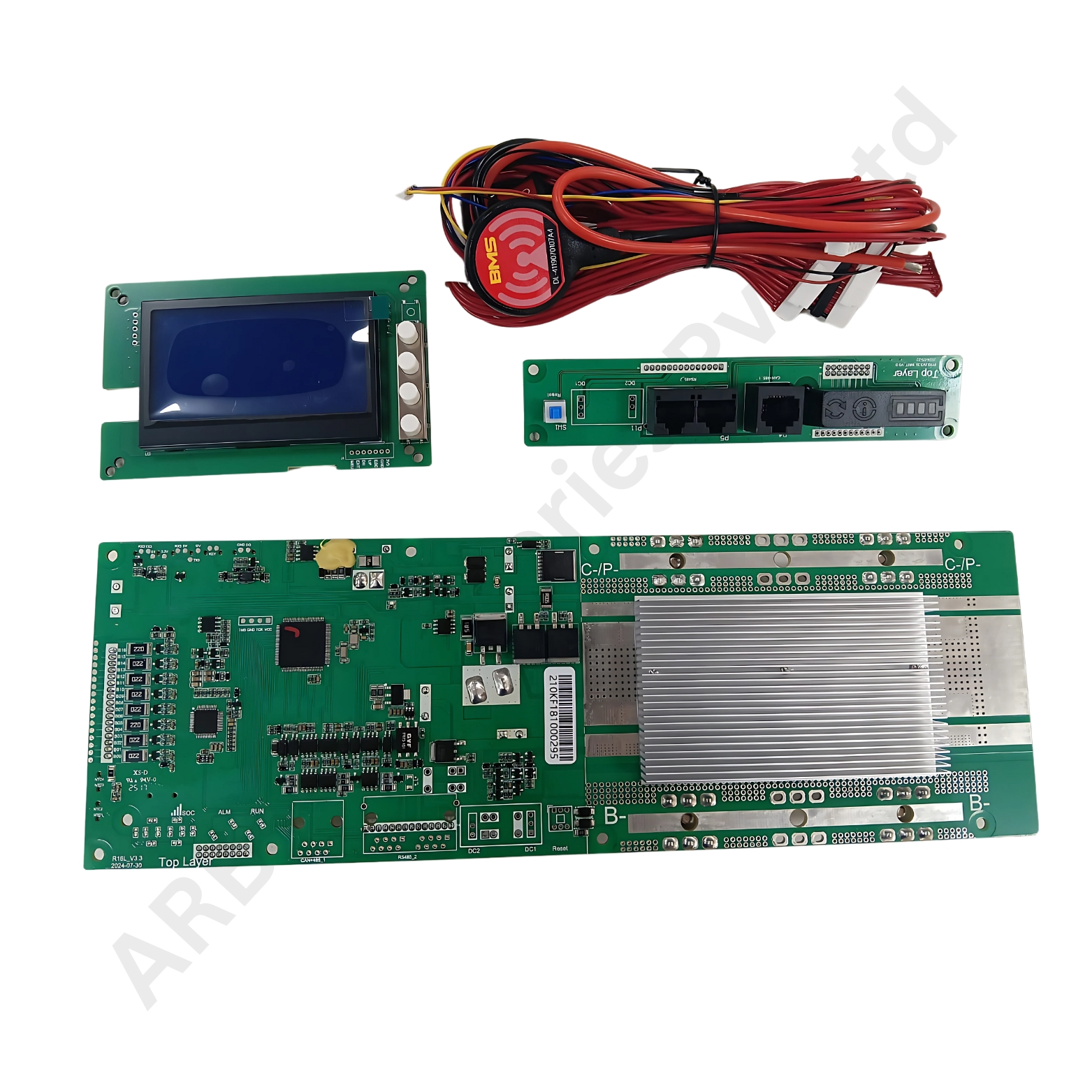

DALY Smart ESS BMS LFP 15S 100A common port with balance

Product Data Sheet

• •Cell specifications: 15 strings of LFP battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.65V*Number of strings
• •Continuous charging current: 50A
• •Continuous discharging current: 100A
• •Consumption of running: ≤60mA

The BMS LFP 15S 100A SMART CAN DALY (ESS) is a Battery Management System (BMS) designed for 15 series Lithium Iron Phosphate (LFP) battery packs, supporting a 100A continuous discharge current. This system is optimized for Energy Storage Systems (ESS) and is suitable for applications such as home energy storage, commercial energy systems, and backup power solutions. It features SMART CAN bus communication, allowing for real-time monitoring and control of the battery through compatible devices. The DALY brand is known for producing reliable and high-performance BMS solutions. It ensures safe battery operation by providing overcharge, over-discharge, overcurrent, short circuit, and temperature protection. The BMS also manages cell balancing, improving battery performance and extending its lifespan.
