BMS LFP 16S 60A SMART CAN DALY (219a)

DALY Smart BMS LiFePO4 16S 48V 60A Common port with Balance

Product Data Sheet Product Data Sheet

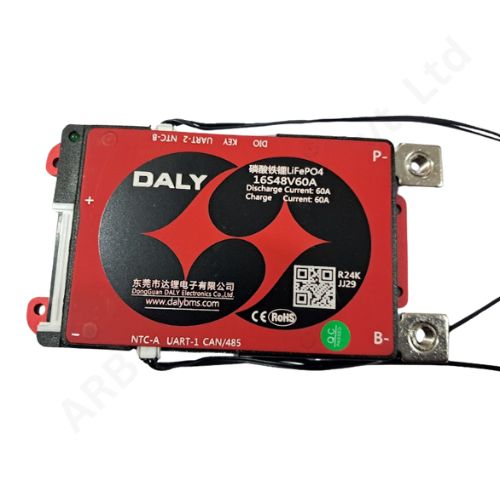

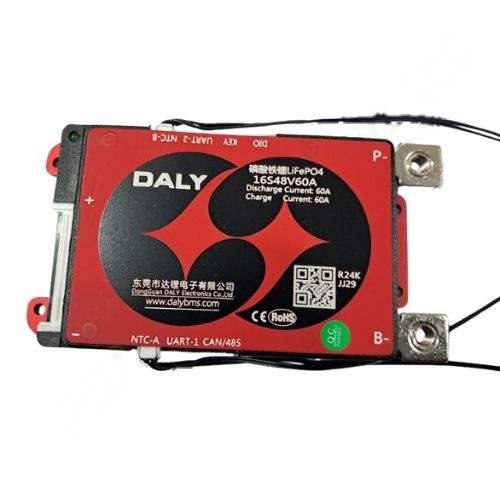

The DALY BMS LFP 16S 60A SMART CAN is a high-performance intelligent Battery Management System designed for 16S (51.2V) LiFePO4 battery configurations. It delivers 60A of continuous charge/discharge current with precision and reliability, making it an excellent choice for large energy storage systems, electric vehicles, and solar inverter applications.

Technical Specifications

• •Battery Configuration: Smart BMS LiFePO4 16S 48V 60A Common port with Balance
• •Continuous Discharge Current: 60A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 30A
• •Charge Voltage: 58.4V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features & Benefits

• •Smart CAN/UART Protocols – Compatible with most CAN-enabled inverters and controllers (e.g., Victron, Growatt, JBD).
• •Industrial-Grade Power Handling – Capable of 60A continuous flow, ideal for high-demand battery packs.
• •Advanced Safety – Over-voltage, under-voltage, over-current, and thermal protections ensure long-term reliability.
• •LiFePO4 Optimization – Specially configured for the voltage profile of 3.2V lithium iron phosphate cells.
• •Passive Balancing System – Balances individual cells during charge cycles for increased lifespan.
• •Multiple Interfaces – UART, CAN (RS485) ports allow flexible system integration and diagnostics.
• •LED & UART Debug Interface – Easy plug-and-play with real-time feedback for diagnostics.
• •Durable Construction – Lightweight anodized aluminum casing enhances thermal management and protection.

Application Scenarios

• •Off-Grid Solar Systems
• •Electric Vehicles / Rickshaws / Golf Carts
• •Battery Energy Storage Systems (BESS)
• •Home UPS and Inverter Packs
• •DIY Powerwall Projects
• •Industrial and Telecom Battery Banks

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
