BMS LFP 19S 40A DALY (1004)

Daly BMS LFP 19S 40A Waterproof – Advanced Battery Management System

Product Data Sheet J16H3 Product Data Sheet

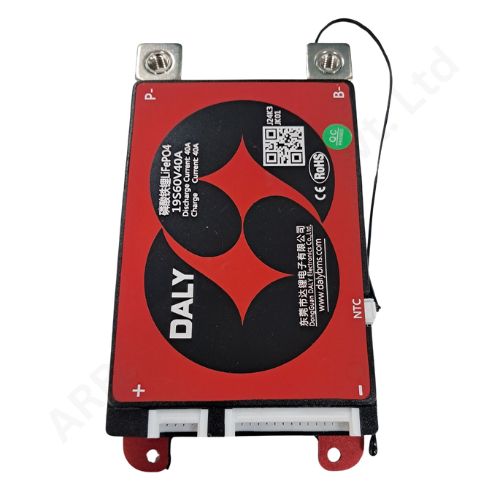

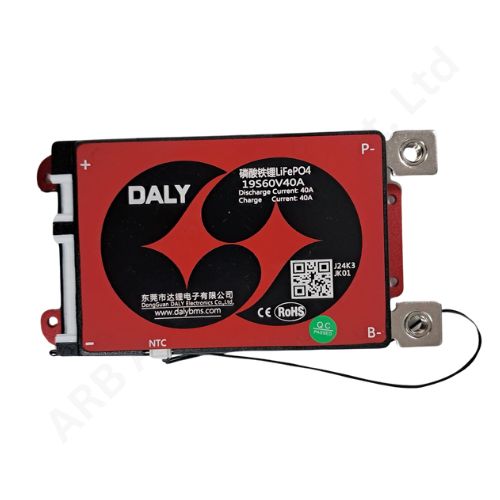

The Daly BMS LFP 19S 40A Waterproof is a cutting-edge Battery Management System (BMS) engineered to provide robust, efficient, and reliable protection for 19-cell (19S) LiFePO4 battery packs. With an IP67 waterproof rating, this BMS is ideal for outdoor and harsh environmental applications, ensuring long-lasting performance and safety for lithium iron phosphate (LiFePO4) batteries.

Equipped with intelligent protection mechanisms, the Daly BMS 19S 40A safeguards your battery pack from overcharge, over-discharge, short circuits, and extreme temperature conditions. It is an essential component for applications such as electric vehicles (EVs), solar energy storage, power backup systems, marine applications, and industrial energy solutions.

Key Features

• •19S Configuration: Designed for 19-cell (19S) LiFePO4 battery packs.
• •40A Continuous Discharge Current: Supports stable and efficient power delivery.
• •Advanced Protection Mechanisms: Prevents overcharge, over-discharge, short circuits, and overheating.
• •Waterproof & Dustproof (IP67 Rated): Ensures reliable performance in extreme conditions.
• •Enhanced Battery Safety: Uses high-quality MOSFETs to minimize heat generation and power loss.
• •Temperature Monitoring: Built-in thermal sensors to regulate battery performance under various conditions.
• •Energy-Efficient Power Management: Extends battery lifespan and optimizes energy usage.
• •Compact & Durable Construction: Lightweight and easy to integrate into battery packs.

Technical Specifications

• •Brand: DALY
• •Model: J24K3
• •Battery Type: LiFePO4 (Lithium Iron Phosphate)
• •Cell Configuration: 19S (19 cells in series)
• •Nominal Voltage: 60.8V
• •Maximum Charge Voltage: 69.35V
• •Continuous Charge Current: 40A
• •Continuous Discharge Current: 40A
• •Peak Discharge Current: Higher surge capacity depending on load
• •Overcharge Protection: Yes
• •Over-Discharge Protection: Yes
• •Short Circuit Protection: Yes
• •Waterproof Rating: IP67
• •Temperature Range: -20°C to 60°C

Applications The Daly BMS LFP 19S 40A Waterproof is designed for multiple energy storage and power applications:

Electric Vehicles (EVs) & E-Bikes Ensures safe and efficient battery management for electric motorcycles, scooters, and e-bikes.

Solar Energy Storage & Off-Grid Systems Optimizes solar energy storage systems by enhancing battery longevity and performance.

Industrial & Commercial Backup Power Provides stable power management for UPS systems, forklifts, and emergency power backups.

Marine & RV Applications Ideal for boats, marine battery storage, and recreational vehicles, ensuring reliable power in tough conditions.

Why Choose Daly BMS LFP 19S 40A Waterproof?

1. •Comprehensive Battery Protection: Prevents overcharging, deep discharging, and short circuits.
2. •Waterproof & Durable: Built with an IP67 rating for outdoor and industrial use.
3. •High-Efficiency Design: Optimizes energy management and prolongs battery life.
4. •User-Friendly & Compact: Easy to install and integrate into battery packs.
5. •Versatile Applications: Ideal for EVs, solar storage, industrial power, and marine energy systems.
