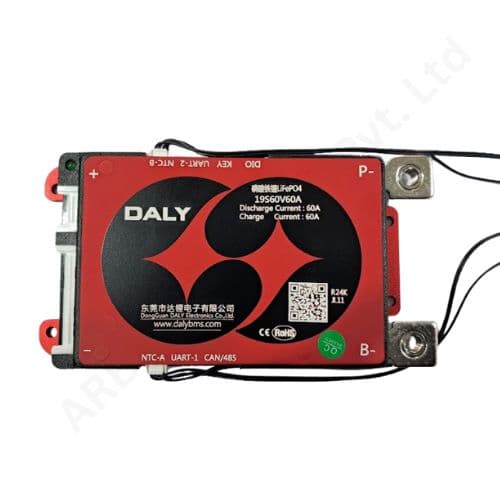

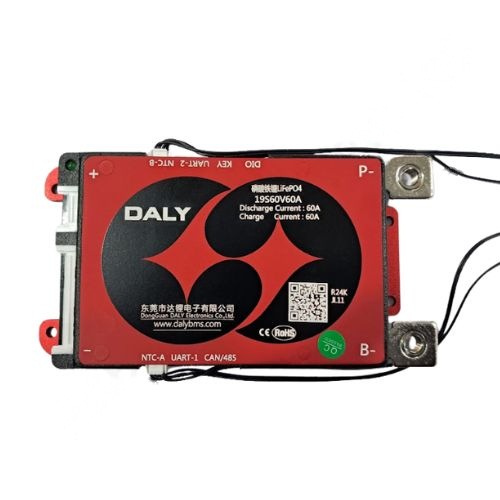

BMS LFP 19S 60A SMART CAN DALY (219e)

DALY Smart BMS LiFePO4 19S 60V 60A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS LFP 19S 60A SMART CAN is a highly efficient and intelligent Battery Management System specially designed for 60.8V LiFePO4 (Lithium Iron Phosphate) battery packs. Featuring robust 60A charge and discharge support, and equipped with CAN Bus and UART communication protocols, this BMS ensures smooth, safe, and monitored operation in energy storage and electric mobility solutions.

Technical Specifications

• •Battery Configuration: Smart BMS LiFePO4 19S 60V 60A Common port with Balance
• •Continuous Discharge Current: 60A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 30A
• •Charge Voltage: 69.35V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Benefits

• •Advanced Protection: Built-in Over Voltage, Under Voltage, Overcurrent, Overtemperature, and Short Circuit protection.
• •Smart CAN & UART Protocols: Real-time battery monitoring and integration with inverters, BMS displays, and energy systems.
• •High Current Handling: With a continuous 60A current rating, it supports large loads like motors, inverters, and solar battery packs.
• •Passive Cell Balancing: Ensures uniform voltage across 19 individual LiFePO4 cells, extending battery life and efficiency.
• •Durable Design: Sturdy aluminum case protects internal components from environmental wear and thermal stress.

Applications

• •Solar Battery Packs & Off-Grid Storage
• •Electric Vehicles (EVs, E-Scooters, E-Bikes)
• •Industrial & Commercial Backup Power
• •DIY Energy Projects & Power Walls
• •Smart Inverter Integration Systems

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
