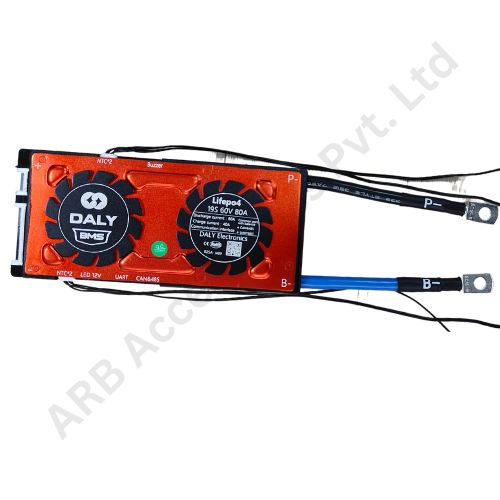

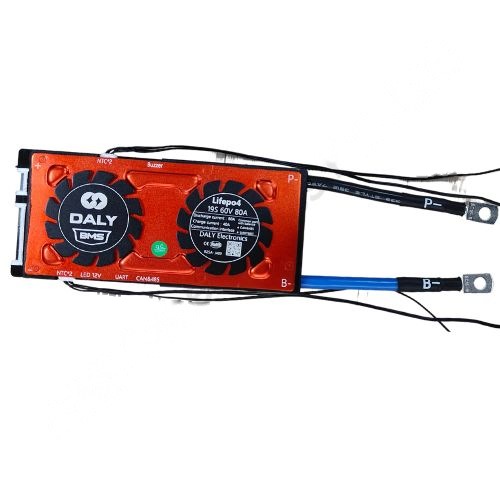

DALY SMART BMS LFP 19S 80A

DALY Smart BMS LiFePO4 19S 60V 80A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS LFP 19S 80A SMART CAN is a robust and intelligent battery management system designed to support LiFePO4 (Lithium Iron Phosphate) battery packs in 19S configuration (60.8V). Built to manage high loads up to 80A, it ensures excellent thermal stability and precision monitoring.

Specifications

• •Battery Configuration: Smart BMS LiFePO4 19S 60V 80A Common port with Balance
• •Continuous Discharge Current: 80A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 40A
• •Charge Voltage: 69.35V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Applications

• •Electric Vehicles (EV, E-Rickshaw, E-Bike)
• •Solar Energy Storage Systems
• •Off-Grid Backup Power Walls
• •Industrial Energy Packs
• •Smart Inverter BMS Systems

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
