BMS LFP 1S 6A (TDT) (47be)

TDT BMS LFP 1S 6A SAME PORT Hardware

Product Data Sheet

The BMS LFP 1S 6A (TDT) is a compact and efficient single-cell Battery Management System (BMS) designed to protect and manage 3.2V LiFePO₄ batteries. Tailored for small to mid-power battery packs, this TDT model delivers 6A of continuous discharge current, ensuring reliable protection against overcharging, over-discharging, and short circuits. With its built-in nickel strips and sleek PCB design, this board is the go-to solution for applications requiring compact integration and efficient power safety.

Technical Specifications

• •Mode: TDT-4S-8063 6A
• •input Voltage B+ to B-: -0.3~+24V
• •Overcharge Detection voltage/1CELL: 4.25±0.05V
• •Over discharge Detection voltage/1CELL: 2.7±0.1V
• •suggest working temperature: -20°C~+60°C
• •Over current 17~23A

Key Features

• •

  Single Cell (1S) LiFePO₄ Compatibility

• •

  6A Continuous Discharge Current – Ideal for low to medium power loads

• •

  Integrated Safety Functions

• •

  Overcharge Protection

• •

  Over-discharge Protection

• •

  Overcurrent and Short Circuit Protection

• •

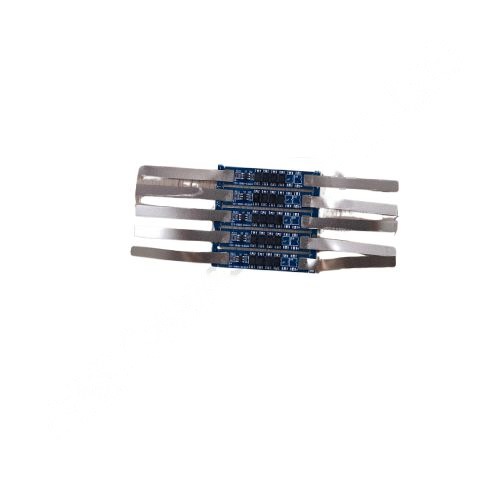

  Ultra-Slim Design – Space-saving PCB with soldered nickel strips for seamless pack assembly

• •

  Smart Auto-Recovery – Intelligent reset circuit for convenience after fault clearance

• •

  Plug-and-Play Use – Pre-soldered nickel tabs for quick welding in DIY or production setups

Applications

• •Flashlight Packs
• •Wearable Electronics
• •Medical Instruments
• •DIY LiFePO₄ Battery Builds
• •Solar & Off-grid Battery Maintenance Systems

The PCM LFP 01S6A (TDT) is a Battery Protection Circuit Module (PCM) designed for 1 series lithium iron phosphate (LiFePO4) cells. It supports a 6A continuous discharge current, making it suitable for mid-power applications such as small electric vehicles, portable power devices, and energy storage systems that require a higher discharge rate than typical low-power configurations. This PCM offers crucial protection features including overcharge, over-discharge, overcurrent, and short circuit safeguards, ensuring safe operation of the battery. Additionally, it helps to extend the lifespan of the battery by preventing harmful voltage fluctuations and ensuring balanced charging and discharging. The TDT variant typically refers to the specific design or manufacturer model, and this PCM is typically used in single-cell LiFePO4 packs for a variety of applications.
