DALY SMART BMS LFP 23S 100A

DALY Smart BMS LiFePO4 23S 72V 100A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY 23S 100A SMART CAN BMS is a high-performance battery management system built for LiFePO4 battery packs with 23 series cells (73.6V nominal). With a 100A rated current, this BMS supports powerful battery packs used in electric vehicles, energy storage solutions, inverters, and other high-demand environments.

Specifications

• •Battery Configuration: Smart BMS LiFePO4 23S 72V 100A Common port with Balance
• •Continuous Discharge Current: 100A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 50A
• •Charge Voltage: 83.95V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Benefits

• •High Power Support: Supports up to 100A discharge and charge current for heavy-duty applications.
• •Smart CAN & UART: Real-time data transmission for superior monitoring, diagnostics, and integration with smart systems.
• •Industrial-Grade Reliability: Engineered for performance-critical setups including EVs, solar banks, energy storage systems, and more.

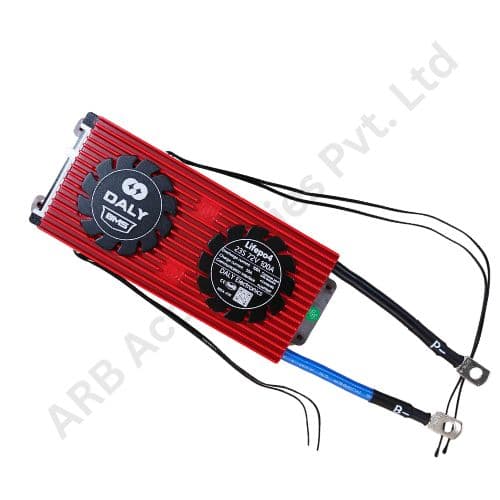

• •Thermal Protection: Dual built-in fans plus NTC sensors prevent overheating, ensuring long service life.
• •All-in-One Safety: Offers over-voltage, under-voltage, short circuit, over-current, and over-temperature protection.

Applications

• •Electric Vehicles (EVs)
• •Solar Off-Grid Energy Systems
• •Industrial UPS & Backup Batteries
• •E-Trucks & E-Rickshaws
• •Custom High-Voltage Power Banks

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
