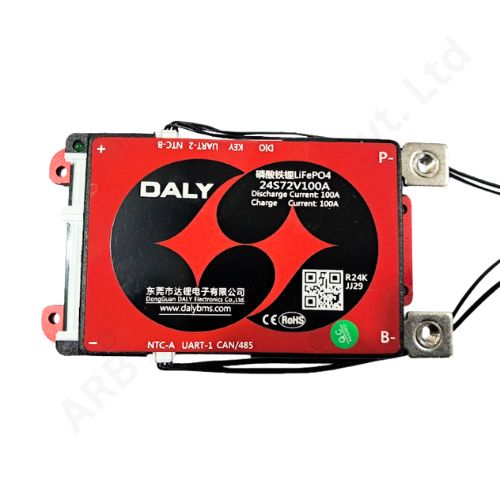

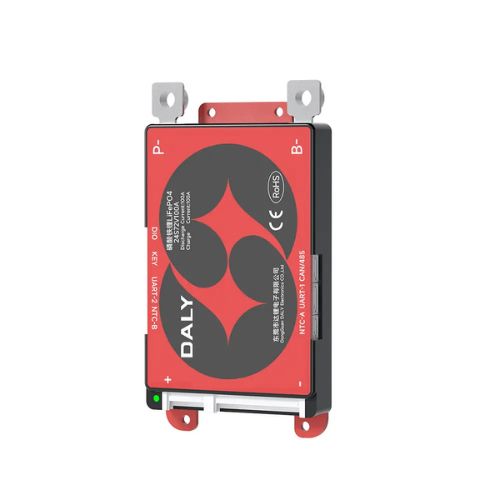

BMS LFP 24S 100A SMART CAN DALY (42f5)

DALY Smart BMS LiFePO4 24S 72V 100A Common port with Balance

Product Data Sheet Product Data Sheet

The BMS LFP 24S 100A SMART CAN DALY is a premium-grade Battery Management System designed specifically for LiFePO4 (Lithium Iron Phosphate) battery packs. Built with robust components, advanced communication protocols, and superior reliability, this BMS is an ideal solution for electric vehicles, solar energy systems, and industrial energy storage applications requiring safe and efficient power delivery at high currents.

Technical Specifications

• •Battery Configuration: Smart BMS LiFePO4 24S 72V 100A Common port with Balance
• •Continuous Discharge Current: 100A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 50A
• •Charge Voltage: 87.6V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

High Current Handling

• •Capable of handling continuous charge and discharge currents of up to 100A.
• •Ensures optimal performance without overheating or voltage imbalance.

Smart Communication

• •Equipped with CAN (Controller Area Network) and UART (Universal Asynchronous Receiver-Transmitter) interfaces.
• •Enables seamless communication with external devices like smart displays, IoT systems, or vehicle controllers.

Advanced Protection Mechanisms

• •Overcharge and over-discharge protection
• •Short-circuit protection
• •Overcurrent protection
• •Temperature monitoring with external NTC sensor support

Active Cell Balancing

• •Maintains consistent voltage across all 24 cells.
• •Enhances battery lifespan and safety by preventing cell imbalance.

User-Friendly Design

• •Comes pre-configured with plug-and-play connectors for easy integration.
• •Rugged aluminum casing with passive and active cooling (some versions feature fans).

Applications

• •Electric Two-Wheelers and Three-Wheelers
• •Solar and Off-Grid Power Systems
• •Energy Storage Systems (ESS)
• •Robotics and Industrial Automation
• •Custom LiFePO4 Battery Packs for UPS and Backup Power

With the wide application of lithium batteries in the lithium battery industry, requirements for high performance, high reliability and high cost performance are also put forward for battery management systems. This product is a BMS specially designed for lithium batteries. It can collect, process and store the information and data of the battery pack in real time during use to ensure the safety, availability and stability of the battery pack.

Using professional high-current trace design and technology, it can withstand the impact of ultra-large current. The appearance adopts the injection molding sealing process to improve moisture resistance, prevent the oxidation of components, and prolong the service life of the product. dust proof, shockproof, anti-squeezing and other protective functions. There are complete overcharge, over-discharge, over-current, short circuit, equalization functions. The integrated design integrates acquisition, management, communication and other functions into one
