BMS LFP 24S 50A SMART CAN DALY (46cb)

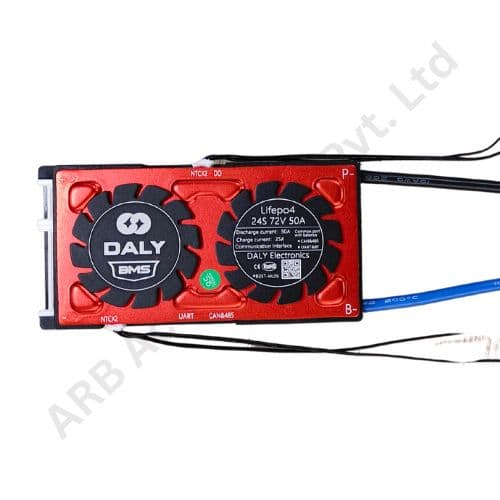

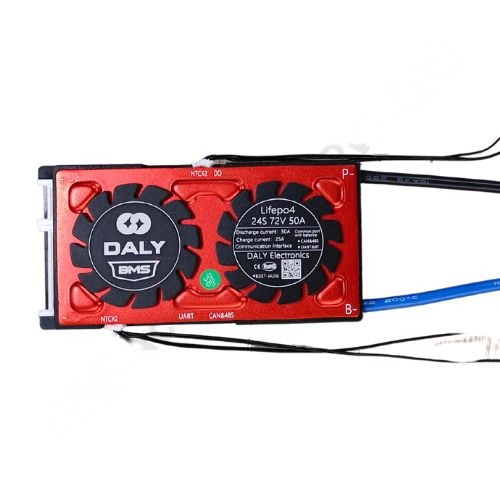

DALY Smart BMS LiFePO4 24S 72V 50A Common port with Balance

Product Data Sheet Product Data Sheet

This BMS features advanced balancing technology, dual NTC temperature sensors, and active cooling fans to regulate battery operation in real-time. Integrated CAN and UART communication ports enable connectivity with inverters, PC software, and external BMS displays, offering full control and status monitoring.

Specifications

• •Battery Configuration: Smart BMS LiFePO4 24S 72V 50A Common port with Balance
• •Continuous Discharge Current: 50A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 25A
• •Charge Voltage: 87.6V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Benefits

• •Enhanced Battery Protection: Protects against overcharge, over-discharge, overcurrent, short-circuit, and over-temperature for extended battery life and safe operation.
• •Smart Connectivity: Equipped with both CAN and UART interfaces for real-time data tracking, diagnostics, and remote configuration.
• •Powerful & Efficient: 50A current support ensures stable power delivery for medium to heavy-duty applications.
• •Active Cooling: Twin fan-equipped design enhances heat dissipation under continuous loads.
• •Application Versatility: Ideal for solar energy systems, EVs, UPS, and industrial-grade battery packs.

Applications

• •Solar & Off-grid Storage Systems
• •Electric Bikes, Trikes, and Rickshaws
• •UPS Systems and Industrial Power Backup
• •Factory Automation and Robotics Battery Packs
• •DIY and Custom EV Battery Packs

With the wide application of lithium batteries in the lithium battery industry, requirements for high performance, high reliability and high cost performance are also put forward for battery management systems. This product is a BMS specially designed for lithium batteries. It can collect, process and store the information and data of the battery pack in real time during use to ensure the safety, availability and stability of the battery pack.

Using professional high-current trace design and technology, it can withstand the impact of ultra-large current. The appearance adopts the injection molding sealing process to improve moisture resistance, prevent the oxidation of components, and prolong the service life of the product. dust proof, shockproof, anti-squeezing and other protective functions. There are complete overcharge, over-discharge, over-current, short circuit, equalization functions. The integrated design integrates acquisition, management, communication and other functions into one
