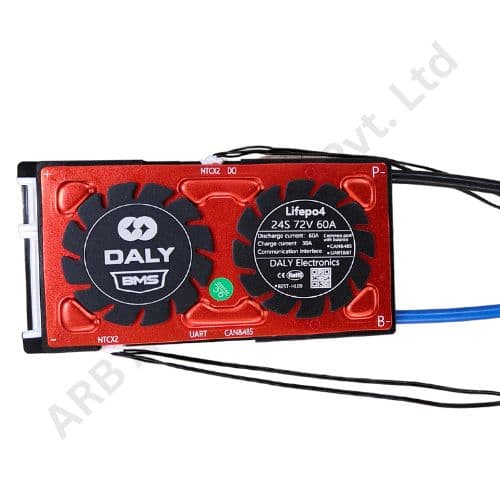

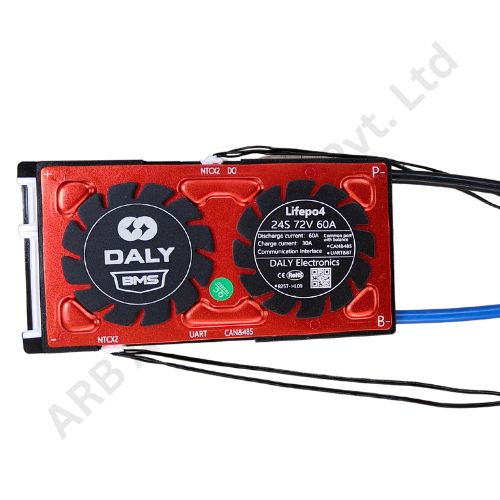

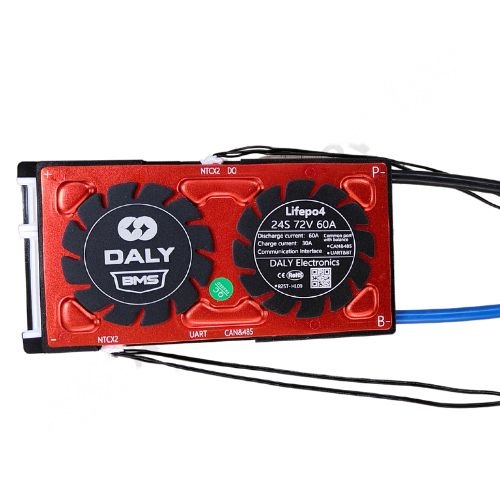

BMS LFP 24S 60A SMART CAN DALY (42f4)

DALY Smart BMS LiFePO4 24S 72V 60A Common port with Balance

Product Data Sheet Product Data Sheet

• •Battery Configuration: Smart BMS LiFePO4 24S 72V 60A Common port with Balance
• •Continuous Discharge Current: 60A
• •Over-Voltage Protection: 3.8V
• •Charge Current: 30A
• •Charge Voltage: 87.6V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

With the wide application of lithium batteries in the lithium battery industry, requirements for high performance, high reliability and high cost performance are also put forward for battery management systems. This product is a BMS specially designed for lithium batteries. It can collect, process and store the information and data of the battery pack in real time during use to ensure the safety, availability and stability of the battery pack.

Using professional high-current trace design and technology, it can withstand the impact of ultra-large current. The appearance adopts the injection molding sealing process to improve moisture resistance, prevent the oxidation of components, and prolong the service life of the product. dust proof, shockproof, anti-squeezing and other protective functions. There are complete overcharge, over-discharge, over-current, short circuit, equalization functions. The integrated design integrates acquisition, management, communication and other functions into one
