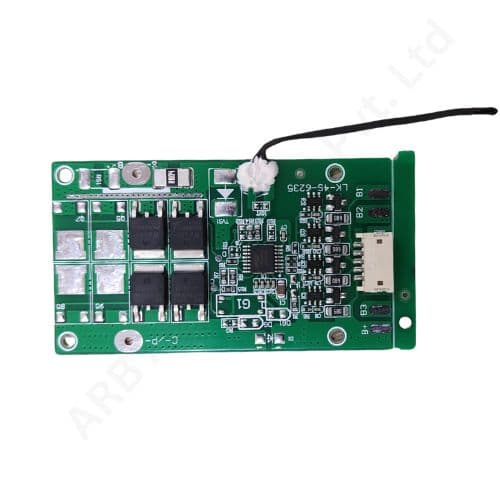

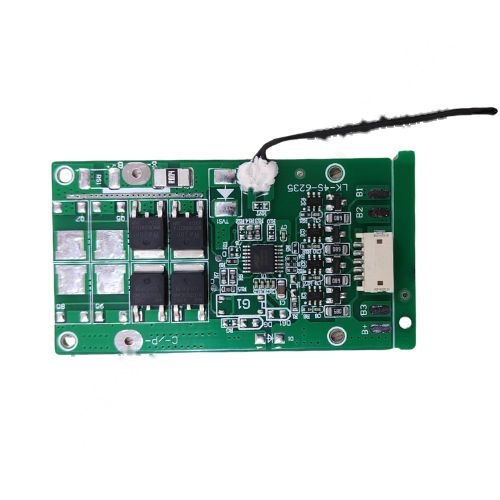

BMS LFP 4S 10A WITH BAL WITH CONNECTOR (SLCT) (7fd1)

SLCT BMS LFP 4S 10A With Balance With Connector Hardware

Product Data Sheet

The BMS LFP 4S 10A with Balance and Connector (SLCT) is a feature-rich Battery Management System designed for 4-cell (4S) LiFePO₄ (Lithium Iron Phosphate) battery packs. Supporting up to 10A continuous current, this advanced circuit integrates cell balancing, a dedicated connector interface, and multiple layers of safety protection, ensuring performance and long battery life for 12.8V systems.

Technical Specifications

• •This Data sheet is for Lichtronics 4S 10A LiFePo4 PCM/BMS
• •Charging Voltage - DC:14.4V CC/CV
• •Max continuous charging current - 10A
• •Over charge detection voltage - 3.65±0.05V
• •Over discharge detection voltage -2.33±0.1V
• •Over current detection current - 12.5±2A
• •Operating Temperature- -45°C --+65°C
• •Storage Temperature- -45°C -- +85°C

Key Features

Multi-Level Battery Protection

• •Overcharge & Overdischarge Cutoff – Avoid damage to cells
• •Overcurrent & Short Circuit Response – Protection during peak loads
• •Cell Balancing Function – Keeps voltage across all 4 cells equal, extending battery lifespan

Built-In JST Connector

• •Enables easy wiring for battery terminals
• •Suitable for plug-and-play setups and enclosures
• •Simplifies maintenance and replacement

Application Areas

The BMS is ideal for:

• •Solar-powered systems (DIY and residential)
• •High-capacity LED lighting projects
• •Electric tool packs & cordless applications
• •Robotics and industrial automation
• •12V LiFePO₄ energy storage modules
• •Light EVs, scooters, and mobility kits
