JBD BMS NMC 14S 40A ZP16S011
Minimum Quantity: 2 PCS
Currently out of stock. You can still request a quote — we'll reply with a lead time, or tell us to let you know the moment it lands.
Product Description

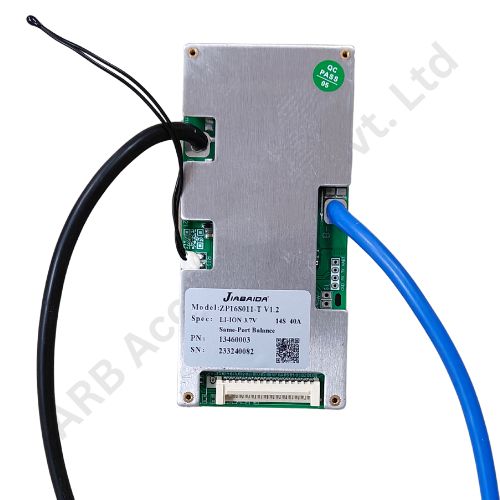

JBD BMS NMC 14S 40AMP Hardware (ZP16S011)
Product Data Sheet (ZP16S011)
The JBD ZP16S011 V1.2 is a precision-engineered Battery Management System (BMS) built to protect and optimize 14S (51.8V nominal) Li-ion/NMC 3.7V battery packs. With support for 40A continuous current, this model combines robust protection, passive cell balancing, and easy installation - making it an excellent choice for DIY powerwalls, e-bikes, portable power stations, and solar backup systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Battery Type | Li-ion / NMC (3.7V nominal per cell) |
| Configuration | 14S (51.8V nominal / 58.8V max) |
| Continuous Current | 40A (Charge and Discharge) |
| Port Type | Common Port (shared for charging/discharging) |
| Balancing Method | Passive Balancing |
| Balancing Current | ~60mA |
| Overcharge Cutoff | ~4.25V/cell |
| Overdischarge Cutoff | ~2.8V/cell |
| Static Current | ≤60μA |
| Circuit Resistance | ≤15mΩ |
| Operating Temperature | -20°C to +75°C |
Key Features
Multiple Safety Protections
The ZP16S011 is equipped with full-spectrum protections to ensure the safety and reliability of your battery system:
- Overcharge & Overdischarge Protection
- Overcurrent and Short Circuit Detection
- Thermal Shutdown for High Temperatures
- Soft Start & Pre-Charge Mechanism
These protections preserve battery health and reduce the risk of pack failure in dynamic environments.
Passive Cell Balancing
- Ensures all 14 cells charge uniformly to prevent overvoltage on any single cell.
- Extends pack longevity and keeps battery performance stable over time.
Simplified Wiring
- Equipped with pre-attached high-current wires (black for B- and blue for P-), saving time in setup.
- The common port configuration further reduces wiring complexity - ideal for compact builds and mobile systems.
Applications
Perfect for medium-to-high power systems, including:
- Electric Bikes / Scooters
- Solar Energy Storage Systems (ESS)
- Portable Power Stations
- DIY 14S Lithium Battery Packs
- Camping & Off-Grid Backup Batteries
- Home Inverter-Ready BESD Units
Key Features
- Premium Quality
- Reliable Performance
- Long Service Life
- Certified Standards
Technical Specifications
- Model
- 72fd
- Product Name
- JBD BMS NMC 14S 40A ZP16S011
- Brand
- JBD
Applications
- Battery Packs
- Energy Storage
- Power Systems
Manufacturer
JBD
