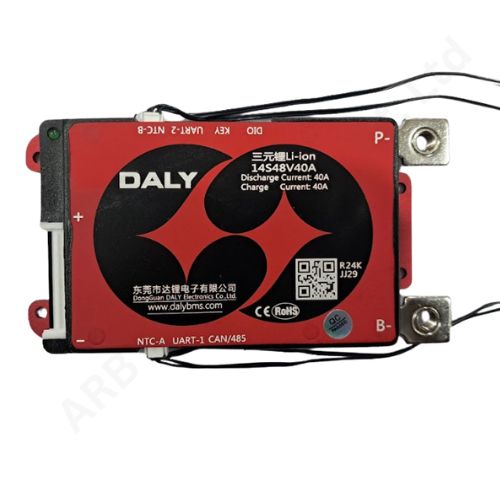

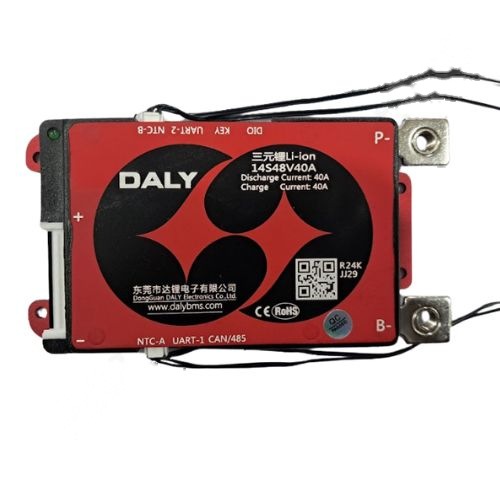

BMS NMC 14S 40A SMART CAN DALY (2188)

DALY Smart BMS Li-ion 14S 48V 40A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS NMC 14S 40A SMART CAN is a reliable, compact, and intelligent Battery Management System (BMS) designed specifically for 14 series Lithium-ion (NMC) battery packs (51.8V nominal). Built with smart CAN/UART communication and high-quality components, it offers real-time protection, optimized charge/discharge management, and communication features for EVs, energy storage, and industrial battery applications.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 14S 48V 40A Common port with Balance
• •Continuous Discharge Current: 40A
• •Balance detect Voltage 3.8
• •Charge Current: 20A
• •Charge Voltage: 58.8V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •Model: DALY Smart BMS 14S 40A
• •Battery Type: Lithium-ion (NMC)
• •Series: 14S (14 cells in series)
• •Nominal Voltage: 51.8V
• •Continuous Charge/Discharge Current: 40A
• •Communication Protocol: CAN/485 & UART
• •Build: Industrial-grade compact red aluminum casing
• •Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature
• •Smart Interface: PC communication via CAN/UART
• •Passive Balancing Current: Approx. 60mA
• •Cooling: Passive with heat-dissipating shell (no fans)

Applications

• •E-Scooters, E-Bikes, and Lightweight EVs
• •Lithium Battery Packs for Portable Power
• •Solar Energy Storage Systems
• •Industrial Backup Batteries
• •DIY Lithium Projects

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
