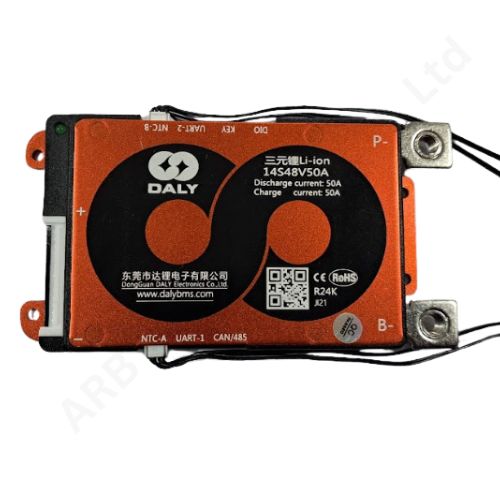

BMS NMC 14S 50A SMART CAN DALY (46c5)

DALY Smart BMS Li-ion 14S 48V 50A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS NMC 14S 50A SMART CAN is a premium Battery Management System designed to safeguard and optimize performance for 14S (51.8V nominal) Lithium-ion (NMC) battery packs. With 50A continuous charge/discharge capacity, smart CAN and UART communication, and built-in multi-level protections, it’s ideal for electric vehicles, solar storage, robotics, and other lithium-powered projects.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 14S 48V 50A Common port with Balance
• •Continuous Discharge Current: 50A
• •Balance detect Voltage 3.8
• •Charge Current: 25A
• •Charge Voltage: 58.8V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •Model: NMC 14S 50A SMART BMS
• •Battery Chemistry: Lithium-ion (NMC)
• •Configuration: 14S (14 Series = 3.7V x 14 = 51.8V Nominal)
• •Discharge Current: 50A Continuous
• •Charge Current: 50A
• •Communication Protocol: CAN + UART + RS485
• •Protection Types: Over/Under Voltage, Short Circuit, Over Temperature, Overcurrent
• •Cell Balancing: Passive balancing
• •Interface: NTC temperature sensor, LED/UART/RS485 ports

Applications

Perfect for powering medium-load lithium systems such as:

• •Electric Scooters / E-Bikes
• •Solar Energy Storage
• •Portable Power Stations
• •Robotic Platforms
• •Custom EV Projects

With the wide application of lithium batteries in the lithium battery industry, requirements for high performance, high reliability and high cost performance are also put forward for battery management systems. This product is a BMS specially designed for lithium batteries. It can collect, process and store the information and data of the battery pack in real time during use to ensure the safety, availability and stability of the battery pack.

Using professional high-current trace design and technology, it can withstand the impact of ultra-large current. The appearance adopts the injection molding sealing process to improve moisture resistance, prevent the oxidation of components, and prolong the service life of the product. dust proof, shockproof, anti-squeezing and other protective functions. There are complete overcharge, over-discharge, over-current, short circuit, equalization functions. The integrated design integrates acquisition, management, communication and other functions into one
