BMS NMC 14S 60A JBD (ZP16S011) (732b)

JBD BMS NMC 14S 60AMP Hardware (ZP16S011)

Product Data Sheet (ZP16S011)

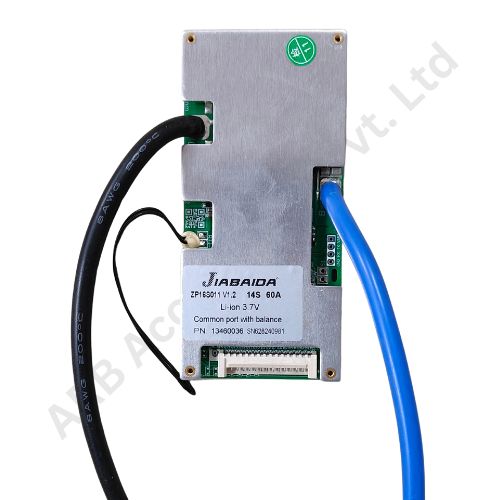

The JBD ZP16S011 V1.2 is a high-current, high-precision Battery Management System (BMS) designed for 14S Li-ion/NMC 3.7V battery packs, with a nominal voltage of 51.8V and maximum charging voltage of 58.8V. Built to handle up to 60A continuous charge/discharge, this BMS is ideal for medium to large-scale lithium-ion applications including solar storage, e-mobility solutions, power backups, and portable BESD systems.

Technical Specifications

Specification	Detail
Battery Type	Li-ion / NMC (3.7V nominal per cell)
Configuration	14S (51.8V nominal, 58.8V max)
Rated Current	60A Continuous Charge/Discharge
Port Type	Common Port (shared charge/discharge)
Balancing Method	Passive Same-Port Balancing
Balancing Current	Approx. 60mA
Overcharge Protection	~4.25V/cell
Overdischarge Cutoff	~2.8V/cell
Idle Current	≤60μA
Internal Resistance	≤15mΩ
Operating Temp	-20°C to +75°C

Key Features

Comprehensive Protection Suite

Equipped with advanced circuitry to safeguard your battery system:

• •Overcharge / Overdischarge Protection
• •Short Circuit & Overcurrent Response
• •Thermal Shutdown for High-Temperature Conditions
• •Soft Start & Pre-Charge Feature

All critical for extending the lifespan and maintaining the safety of high-performance lithium-ion systems.

Intelligent Passive Balancing

• •Keeps voltages equal across all 14 cells
• •Improves pack longevity, avoids overcharge on single cells
• •Stabilizes charging and discharging cycles

Pre-Wired for Easy Setup

• •Includes high-current black (B-) and blue (P-) cables
• •Same-port architecture minimizes connection effort
• •Preconfigured and factory-tested for direct deployment

Ideal Use Cases

This BMS is perfect for medium- to high-load lithium-ion systems:

• •Electric Scooters & Bicycles
• •Off-Grid Solar Battery Banks
• •Portable Energy Storage Devices (BESD)
• •Camping & RV Battery Systems
• •Home Inverter or UPS Packs
• •Custom DIY 14S Lithium Packs
