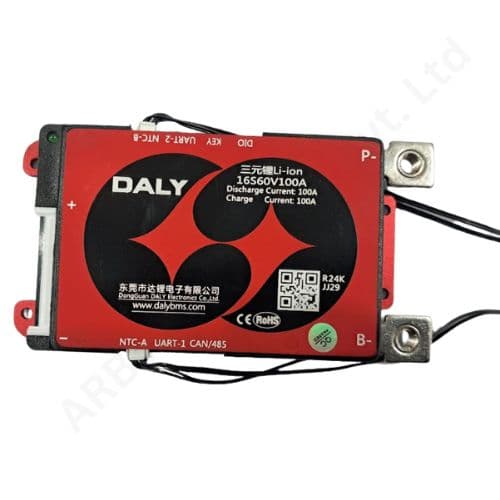

BMS NMC 16S 100A SMART CAN DALY (800e)

DALY Smart BMS Li-ion 16S 60V 100A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS NMC 16S 100A SMART CAN is a premium Battery Management System designed to protect and manage high-capacity 16S Lithium-ion (NMC) battery packs. Built for precision, durability, and advanced communication, it ensures superior performance for electric vehicles, solar systems, energy storage, and industrial battery applications. This Smart BMS is equipped with CAN/485/ UART communication interfaces and integrated thermal, voltage, and current protections.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 16S 60V 100A Common port with Balance
• •Continuous Discharge Current: 100A
• •Balance detect Voltage 3.8
• •Charge Current: 50A
• •Charge Voltage: 67.2V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •

  High Current Handling Supports continuous discharge and charge currents up to 100A, ideal for high-load applications.

• •

  Intelligent Protection Built-in safety against over-voltage, under-voltage, over-current, short-circuit, and over-temperature.

• •

  CAN/485 Communication Smart CAN Bus communication allows for real-time battery diagnostics, data logging, and integration with battery monitors, BMS master units, and vehicle controllers.

• •

  Temperature Monitoring Equipped with NTC sensor ports to monitor and prevent overheating.

• •

  Modular Design Compact aluminum alloy case with heat dissipation fins ensures high thermal conductivity and mechanical stability.

• •

  Easy Installation Comes pre-wired with heavy-duty output cables and signal harnesses for convenient setup.

Use Case Applications

• •E-Bikes / E-Rickshaws / E-Scooters
• •Solar Inverter Battery Banks
• •Industrial Lithium Battery Systems
• •Electric Car Battery Packs
• •DIY Powerwalls & Backup Systems

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
