BMS NMC 16S 40A JBD (ZP16S011) (548c)

JBD BMS NMC 16S 40AMP Hardware (ZP16S011)

Product Data Sheet (ZP16S011)

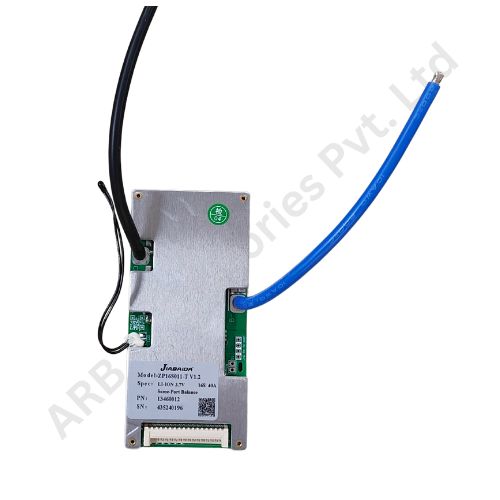

The JBD ZP16S011 V1.2 is a highly reliable and efficient Battery Management System (BMS) designed for 16-series (16S) Li-ion/NMC 3.7V battery packs. Operating at a nominal voltage of 59.2V (67.2V fully charged), this BMS supports up to 40A of continuous current, making it ideal for energy-dense applications like off-grid solar systems, BESDs, e-bikes, and mobile power stations.

Technical Specifications

Parameter	Details
Battery Chemistry	Li-ion / NMC (3.7V nominal per cell)
Configuration	16S (59.2V nominal / 67.2V max)
Continuous Current	40A (Charge & Discharge)
Port Type	Common Port (shared charge/discharge)
Balancing Method	Passive Balancing
Balancing Current	~60mA typical
Overcharge Cutoff	~4.25V/cell
Overdischarge Cutoff	~2.8V/cell
Quiescent Current	≤60μA
Internal Resistance	≤15mΩ
Operating Temp Range	-20°C to +75°C

Key Features

Intelligent Protection Circuitry

• •Overcharge & Overdischarge Protection
• •Overcurrent & Short Circuit Protection
• •Thermal Protection with Auto Recovery
• •Pre-Charge & Soft-Start Functionality

This combination of safety systems ensures your battery pack stays protected in any scenario — from overuse to harsh environmental conditions.

Passive Cell Balancing

• •Equalizes voltage across all 16 cells during charging
• •Helps prevent cell drift and imbalance-related degradation
• •Improves battery cycle life and performance consistency

Plug-and-Play Wiring

• •Comes pre-wired with black (B-) and blue (P-) heavy-duty cables
• •Common port design simplifies system integration
• •Suitable for both novice and professional installers

Ideal Applications

This BMS is suitable for medium-to-high power Li-ion battery systems such as:

• •Portable Energy Storage Devices (BESDs)
• •Solar Power Battery Banks
• •Electric Bikes, Scooters & Skateboards
• •Off-grid and Mobile Power Units
• •Camping, Caravan & RV Energy Systems
• •Home Inverter and Backup Batteries
