BMS NMC 16S 50A JBD (ZP16S011) (73bd)

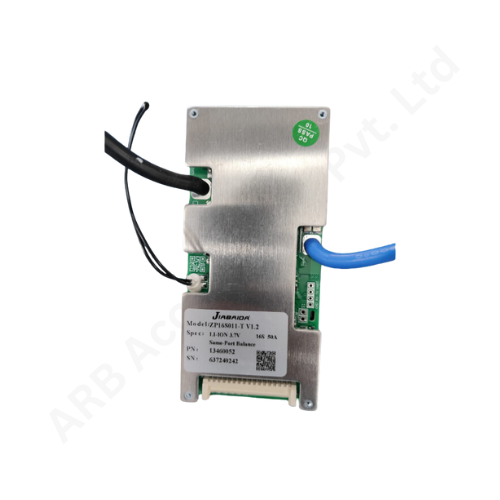

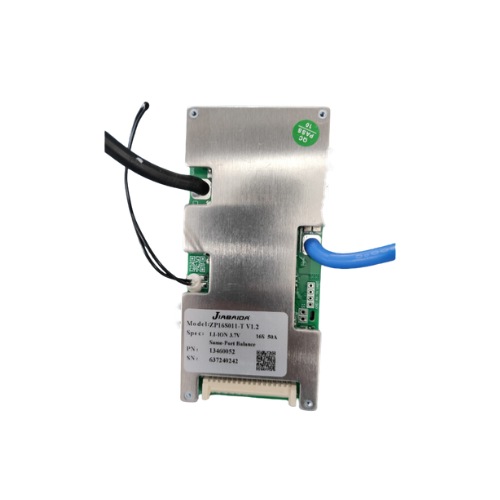

JBD BMS NMC 16S 50AMP Hardware (ZP16S011)

Product Data Sheet (ZP16S011)

The JBD ZP16S011 V1.2 is a reliable, feature-rich Battery Management System (BMS) for 16S (16-cell) Li-ion/NMC 3.7V battery packs. Capable of supporting up to 50A continuous current, this BMS offers passive cell balancing, integrated protection circuitry, and a common port configuration, making it an ideal solution for battery applications like off-grid solar storage, BESDs, e-bikes, and portable energy banks.

Technical Specifications

Feature	Specification
Battery Type	Li-ion / NMC (3.7V nominal per cell)
Series Support	16S (59.2V nominal / 67.2V max)
Continuous Current	50A (Charge and Discharge)
Port Type	Common Port (shared for charge/discharge)
Balancing Method	Passive Cell Balancing
Balancing Current	~60mA typical
Overcharge Protection	~4.25V/cell
Overdischarge Cutoff	~2.8V/cell
Idle Power Draw	≤60μA
Internal Resistance	≤15mΩ
Operating Temperature	-20°C to +75°C

Key Features

Advanced Protection Features

This BMS is equipped with a full suite of protections, ensuring safe battery operation under all conditions:

• •Overcharge and Overdischarge Protection
• •Overcurrent and Short-Circuit Protection
• •High Temperature Cutoff & Recovery
• •Pre-Charge and Soft Start Support

These protections guard your cells from misuse, helping to preserve long-term cycle life and prevent thermal events.

Passive Balancing for Longevity

• •Built-in passive balancing ensures voltage uniformity across all 16 cells.
• •Prevents voltage drift, enhances charge efficiency, and extends battery life.

Plug-and-Play Simplicity

• •Pre-attached high-current black (B-) and blue (P-) leads.
• •Compact, slim-profile aluminum housing for tight-space installations.
• •Designed for fast integration into new or existing systems.

Ideal for Use In

This BMS is perfect for medium-to-high capacity lithium-ion applications:

• •Solar Energy Storage Systems (ESS)
• •Electric Scooters, Bikes, and Skateboards
• •Battery Energy Storage Devices (BESD)
• •Portable Power Banks
• •DIY Battery Pack Builds
• •Off-Grid and Camping Power Solutions
