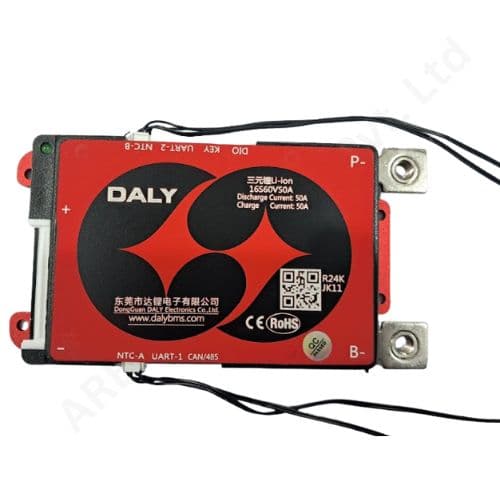

BMS NMC 16S 50A SMART CAN DALY (45aa)

DALY Smart BMS Li-ion 16S 60V 50A Common port with Balance

Product Data Sheet Product Data Sheet

The BMS NMC 16S 50A SMART CAN DALY is a high-performance battery management system designed for 60V (16S) Lithium-ion (NMC) battery packs. With intelligent communication protocols such as CAN and UART (RS485), this BMS is ideal for applications in electric vehicles, solar energy storage, robotics, and other high-efficiency lithium battery setups. Built by DALY Electronics, this system is renowned for its robust protection, thermal monitoring, and stable current handling.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 16S 60V 50A Common port with Balance
• •Continuous Discharge Current: 50A
• •Balance detect Voltage 3.8
• •Charge Current: 25A
• •Charge Voltage: 67.2V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •CAN Bus & UART Communication: Allows integration with EV controllers, display systems, and chargers, enabling real-time data exchange, SOC display, and diagnostic feedback.
• •Multiple Safety Layers: Provides over-voltage, under-voltage, over-current, short circuit, and temperature protections, thereby ensuring long battery life and safety.
• •Real-Time Monitoring: With advanced sensor support and firmware, monitor charging/discharging performance, cell voltage variations, and temperature parameters effectively.
• •Efficient Current Handling: Capable of delivering and managing up to 50A discharge, making it suitable for mid-power applications such as e-scooters, solar banks, and portable devices.
• •Smart Thermal Control: Equipped with NTC sensors to detect high or low-temperature conditions and initiate automatic cutoffs to prevent damage.
• •User-Friendly Design: Plug-and-play wiring layout with clear P- and B- terminals for seamless installation in new or retrofit battery systems.

Applications

• •Electric Scooters & Motorbikes (60V Li-ion)
• •Solar ESS (Energy Storage Systems)
• •Portable Lithium Power Stations
• •Medical and Industrial Robotics
• •UPS Backup Systems for Telecom & IT
• •Lithium-ion DIY Pack Protection

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
