BMS NMC 16S 60A JBD (ZP16S011) (5645)
Minimum Quantity: 1 PCS
Product Description

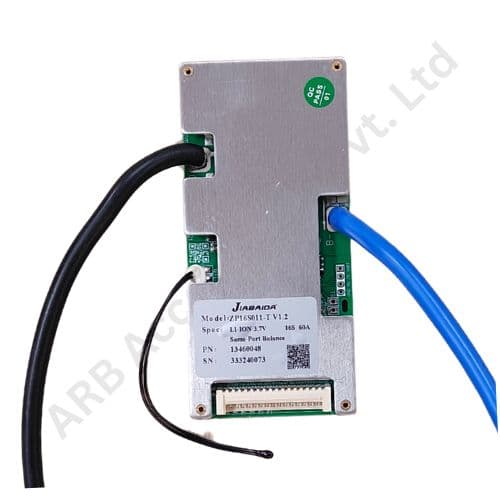

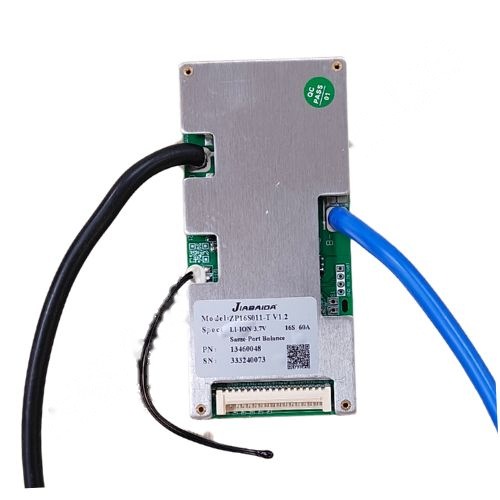

JBD BMS NMC 16S 60AMP Hardware (ZP16S011)
The JBD ZP16S011 V1.2 is a high-performance Battery Management System (BMS) designed for 16S Li-ion/NMC 3.7V battery packs, supporting a nominal system voltage of 59.2V and a fully charged voltage of 67.2V. Capable of handling up to 60A of continuous current, this BMS delivers robust protection, passive balancing, and optimized power delivery for high-demand battery systems such as solar storage banks, BESDs, e-mobility systems, and portable energy backups.
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Li-ion / NMC (3.7V nominal) |
| Series Configuration | 16S (59.2V nominal / 67.2V max) |
| Rated Current | 60A Continuous (Charge/Discharge) |
| Port Type | Common Port (shared for charge/discharge) |
| Balancing Method | Passive Balancing |
| Balancing Current | ~60mA |
| Overcharge Protection | ~4.25V per cell |
| Overdischarge Cutoff | ~2.8V per cell |
| Quiescent Current | ≤60μA |
| Circuit Resistance | ≤15mΩ |
| Operating Temp | -20°C to +75°C |
Key Features
Advanced Protection Functions
The ZP16S011 ensures safe operation of your battery pack with hardware-based protections:
- •Overcharge & Overdischarge Cutoffs
- •Overcurrent & Short Circuit Detection
- •Temperature Protection with Auto Recovery
- •Pre-Charge & Soft Start for System Safety
These features protect against electrical and thermal stress, helping prolong battery life and prevent hazardous failures.
Precision Cell Balancing
- •Passive cell balancing ensures equal voltage across all 16 cells
- •Prevents overcharging of individual cells and voltage drift
- •Boosts battery health, capacity, and charge consistency
Ready-to-Use Wiring & Construction
- •Pre-attached heavy-duty black (B-) and blue (P-) wires
- •Common port configuration simplifies wiring layout
- •Compact aluminum housing offers thermal efficiency and durability
Applications
This 16S 60A BMS is ideal for use in:
- •Off-grid Solar Power Systems
- •Battery Energy Storage Devices (BESDs)
- •Electric Scooters, Bikes & Skateboards
- •Portable Power Supplies
- •RV, Camping, and Outdoor Energy Packs
- •Home Inverter and UPS Backup Systems
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- 5645
- Product Name
- BMS NMC 16S 60A JBD (ZP16S011) (5645)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Manufacturer
GLANNU INDUSTRIES
Similar Products
BMS LFP 15S 40A JBD (ZP16S011) (548e)
BMS LFP 15S 50A JBD (ZP16S011) (73be)
BMS LFP 15S 60A JBD (ZP16S011) (563f)

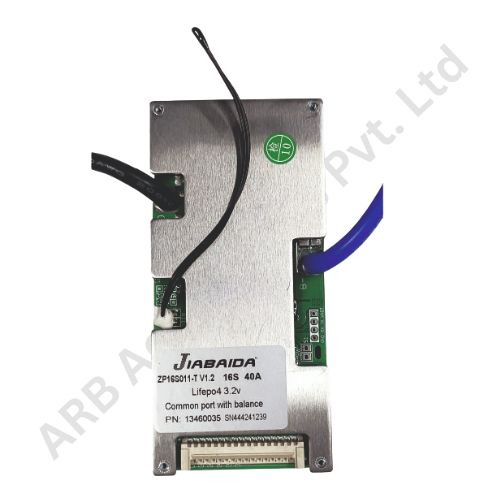

BMS LFP 16S 40A JBD (ZP16S011) (732c)
