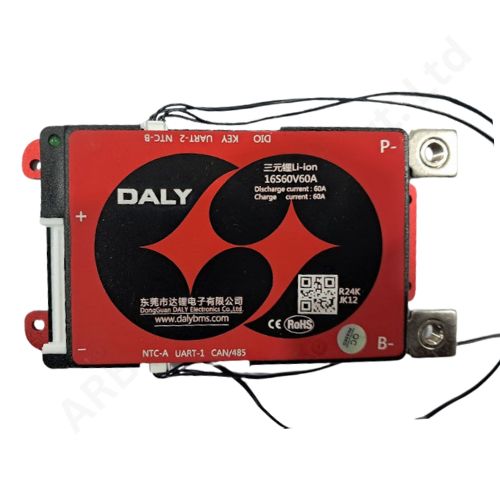

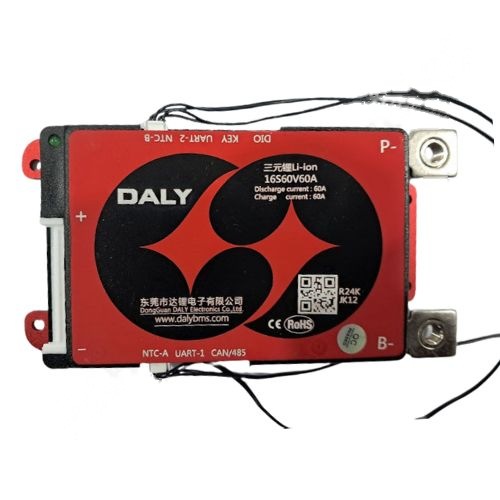

BMS NMC 16S 60A SMART CAN DALY (2192)

DALY Smart BMS Li-ion 16S 60V 60A Common port with Balance

Product Data Sheet Product Data Sheet

The BMS NMC 16S 60A SMART CAN DALY is a premium Battery Management System engineered to manage and protect 60V lithium-ion (NMC) battery packs. Designed by DALY Electronics, a global leader in BMS technology, this smart system ensures reliability, longevity, and real-time communication with devices via CAN and UART RS485 protocols. It is an ideal choice for electric vehicles, solar backup systems, and high-drain lithium battery applications.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 16S 60V 60A Common port with Balance
• •Continuous Discharge Current: 60A
• •Balance detect Voltage 3.8
• •Charge Current: 30A
• •Charge Voltage: 67.2V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •Smart CAN Communication: Seamlessly integrates with EV controllers, chargers, and other smart equipment via CAN BUS, enabling synchronized control and battery health reporting.
• •Advanced Protection System: Offers full protection from short circuits, overcharging, over-discharging, over-current, and temperature fluctuations to preserve battery integrity and user safety.
• •Efficient Passive Balancing: Ensures all cells remain equalized during charging and discharging, enhancing overall pack efficiency and extending battery life.
• •Dual NTC Sensors: Monitors thermal performance and automatically disconnects the load in case of abnormal temperatures.
• •Robust Design: Built with high-quality materials and a heat-resistant enclosure, capable of operating under demanding conditions.
• •User-Friendly Wiring: Clearly labeled terminals and included harness make installation simple and safe, even for DIY users.

Applications

• •Electric Motorcycles and Scooters (60V)
• •Lithium-ion UPS and Power Backup Systems
• •Solar ESS (Energy Storage Solutions)
• •E-Cargo Bikes & Delivery Vehicles
• •Industrial Robotics
• •Battery-Powered Medical and Lab Equipment

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
