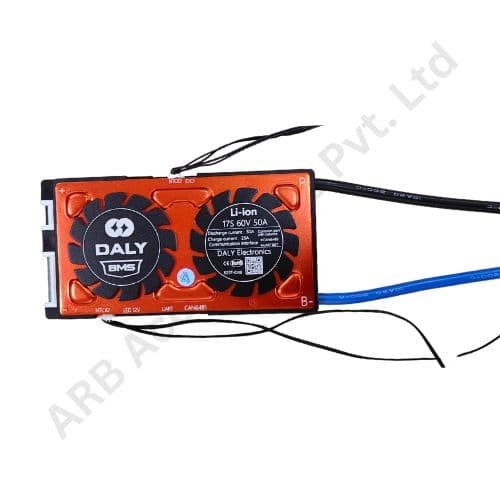

BMS NMC 17S 50A SMART CAN DALY (46c6)

DALY Smart BMS Li-ion 17S 60V 50A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS NMC 17S 50A SMART CAN is an intelligent and robust Battery Management System specifically designed for 17 series (60V nominal) lithium-ion (NMC) battery packs. It combines advanced protection circuitry with CAN communication capability, ensuring real-time monitoring, safe charging/discharging, and enhanced battery longevity. Whether you're building a DIY energy system or upgrading an electric mobility platform, this BMS delivers precision and performance.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 17S 60V 50A Common port with Balance
• •Continuous Discharge Current: 50A
• •Balance detect Voltage 3.8
• •Charge Current: 25A
• •Charge Voltage: 71.4V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •

  Ideal for 60V Battery Systems Designed for 17S (60V) lithium-ion configurations used in e-bikes, scooters, rickshaws, and solar setups.

• •

  Smart CAN Communication Equipped with CAN/UART/RS485 communication protocols for real-time data transmission and smart system integration.

• •

  Multiple Protection Layers Built-in protections include over-voltage, under-voltage, short-circuit, over-current, and temperature safeguards.

• •

  Dual NTC Temperature Monitoring Ensures thermal safety by actively reading the battery’s heat levels.

• •

  Active Cooling with Twin Fans Red anodized aluminum casing and dual fans deliver exceptional heat dissipation under heavy loads.

• •

  Plug-and-Play Installation Comes with pre-crimped power cables, CAN connectors, and balance wire harness.

Applications

• •Electric Scooters, E-Bikes, and Mobility Vehicles
• •Solar Battery Energy Storage Systems (BESS)
• •DIY Lithium-ion Battery Packs
• •Robotics and Automation Systems
• •Electric Rickshaws and Cargo Bikes

With the wide application of lithium batteries in the lithium battery industry, requirements for high performance, high reliability and high cost performance are also put forward for battery management systems. This product is a BMS specially designed for lithium batteries. It can collect, process and store the information and data of the battery pack in real time during use to ensure the safety, availability and stability of the battery pack.

Using professional high-current trace design and technology, it can withstand the impact of ultra-large current. The appearance adopts the injection molding sealing process to improve moisture resistance, prevent the oxidation of components, and prolong the service life of the product. dust proof, shockproof, anti-squeezing and other protective functions. There are complete overcharge, over-discharge, over-current, short circuit, equalization functions. The integrated design integrates acquisition, management, communication and other functions into one
