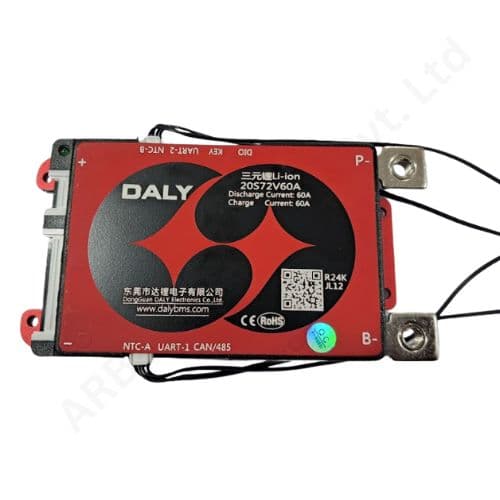

BMS NMC 20S 60A SMART CAN DALY (2196)

DALY Smart BMS Li-ion 20S 72V 60A Common port with Balance

Product Data Sheet Product Data Sheet

The DALY BMS NMC 20S 60A SMART CAN is an intelligent Battery Management System (BMS) designed to protect and enhance the performance of 20S (72V nominal) lithium-ion battery packs using NMC (Nickel Manganese Cobalt) chemistry. It supports 60A continuous current, making it suitable for applications requiring medium-to-high power such as electric vehicles, solar storage systems, and battery-powered industrial equipment.

Technical Specifications

• •Battery Configuration: Smart BMS Li-ion 20S 72V 60A Common port with Balance
• •Continuous Discharge Current: 60A
• •Balance detect Voltage 3.8
• •Charge Current: 30A
• •Charge Voltage: 84V
• •Short Circuit Protection: Yes, with auto recovery
• •Temperature Protection: Over-temperature and under-temperature protection
• •Features: Overcurrent, overcharge, over-discharge, and temperature protection

Key Features

• •

  Smart CAN Communication Supports CAN protocol for system-wide battery status reporting, fault detection, and configuration.

• •

  Real-Time Monitoring View live voltage, current, temperature, and error logs with UART/485 diagnostics.

• •

  Comprehensive Safety Protections Built-in protection circuits guard against overcharge, overdischarge, overcurrent, and thermal hazards.

• •

  Durable Aluminum Housing Engineered for effective heat dissipation, ensuring safe operation even under continuous 60A loads.

• •

  Plug-and-Play Compatibility Easy installation with included balance wire harness and standardized connectors.

Applications

• •Electric Scooters and Bikes
• •EV Conversions and DIY Mobility Projects
• •Solar Energy Storage Systems
• •Industrial Battery-Powered Tools
• •Battery Pack Assembly Units

With the wide application of lithium battery in Lithium Battery Industry, high performance, high reliability and high cost performance are required for battery management system. This product is designed specifically for lithium-ion batteries in BMS, it can collect, process and store the information data of the battery in real time, and ensure the safety, availability and stability of the battery.

Professional high current wiring design &workmanship, thus can withstand the shock of high current high. The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products. dust proof, shockproof, anti-squeezing and other protective functions. There is a complete over-charge, over-discharge, over-current, short-circuit, balance function. With the integrated design, the collection, management, communication and other functions are integrated.
