BMS NMC 3S 100A DALY (7aa5)

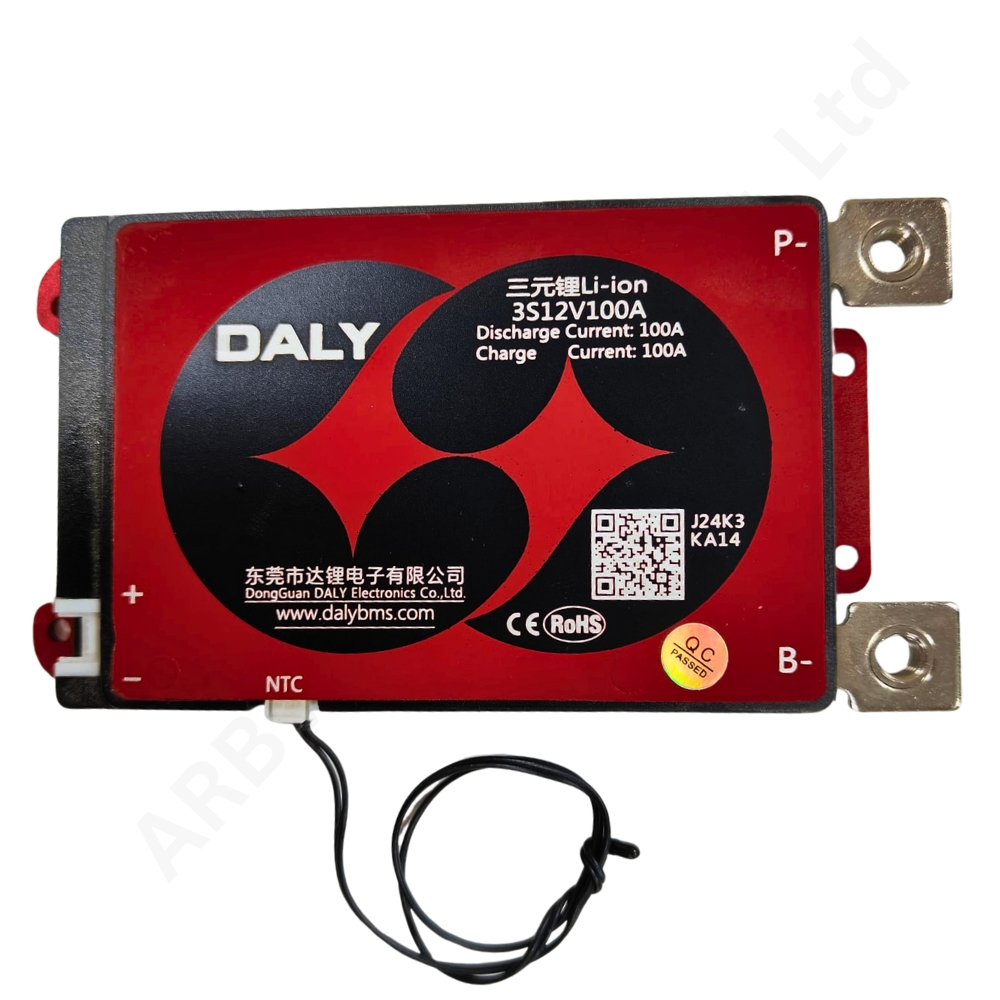

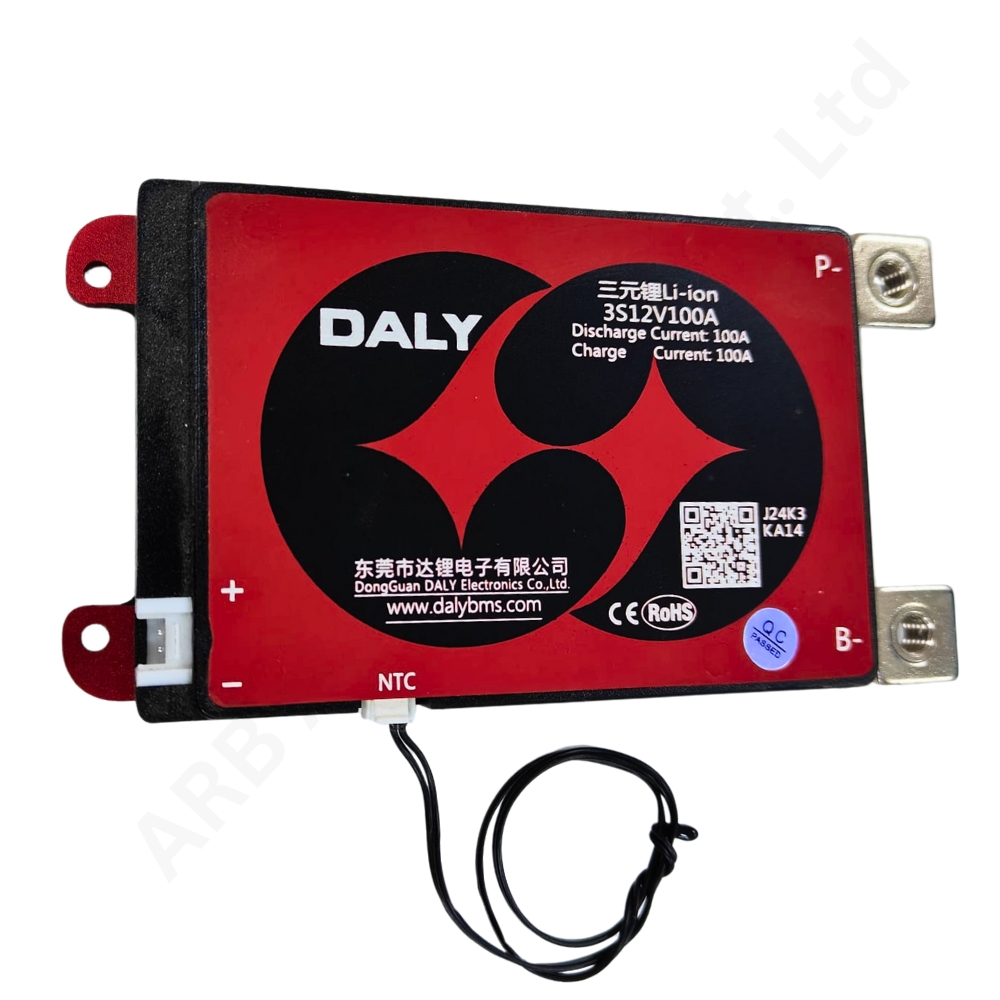

Daly BMS NMC 3S 100A Waterproof – Advanced Battery Management System

Product Data Sheet J24K3 Product Data Sheet

The Daly BMS NMC 3S 100A Waterproof is a high-performance Battery Management System (BMS) designed for 3-series Nickel Manganese Cobalt (NMC) lithium battery packs. This advanced BMS provides reliable protection, efficient energy management, and long-term durability, making it ideal for applications such as electric vehicles (EVs), solar energy storage, power backup systems, and portable energy solutions.

Built with IP67-rated waterproof protection, the Daly BMS is designed to function in extreme environments, ensuring optimal safety and longevity for lithium battery packs in various demanding applications.

Key Features

• •Supports 3S NMC Battery Packs – Designed for high-efficiency battery systems.
• •100A Continuous Discharge Current – Suitable for medium to high-power applications.
• •Waterproof & Dustproof (IP67 Rating) – Offers enhanced durability and protection.
• •Advanced Safety Protections – Includes overcharge, over-discharge, short circuit, overcurrent, and thermal protection.
• •Efficient MOSFET Technology – Reduces energy loss and improves system performance.
• •Smart Balancing Function – Ensures uniform charge distribution for longer battery life.
• •Compact & Lightweight Design – Makes installation easy and versatile.

Technical Specifications

• •Brand: Daly
• •Model: J24k3
• •Battery Type: NMC (Nickel Manganese Cobalt)
• •Cell Configuration: 3S
• •Nominal Voltage: 11.1V (3.7V per cell)
• •Continuous Charge Current: 100A
• •Continuous Discharge Current: 100A
• •Peak Discharge Current: Higher surge capacity for short-term loads
• •Communication Protocol: UART, CAN (Optional)
• •Balancing Type: Passive Balancing
• •Protection Features: Overcharge, Over-discharge, Overcurrent, Short Circuit, Overheating
• •Operating Temperature: -20°C to 60°C
• •Waterproof Rating: IP67

Applications The Daly BMS NMC 3S 100A Waterproof is ideal for a variety of energy storage and power management applications, including:

Electric Vehicles (EVs) & E-Bikes

• •Ensures stable power output for consistent battery performance.
• •Protects against deep discharge and overheating.

Solar Energy Storage Systems

• •Optimized battery management for solar and renewable energy storage solutions.
• •Prevents overcharging and enhances battery lifespan.

Backup Power & Portable Energy Solutions

• •Ideal for UPS (Uninterruptible Power Supply) systems.
• •Maintains reliable battery performance in emergency power applications.

Marine & RV Power Systems

• •Waterproof and rugged design makes it ideal for marine and off-grid applications.
• •Supports efficient charge-discharge cycles for extended usability.

Why Choose Daly BMS NMC 3S 100A Waterproof?

1. •High-Powered Performance – Supports 100A continuous discharge, ideal for demanding applications.
2. •Superior Battery Protection – Protects against short circuits, overcurrent, and overheating.
3. •Waterproof & Rugged – IP67-rated for extreme environments.
4. •Smart Balancing Technology – Ensures longer battery lifespan and consistent performance.
5. •Efficient & Reliable – Designed for high-voltage battery packs and energy storage systems.
