BMS NMC 4S 10A XSW (47ba)

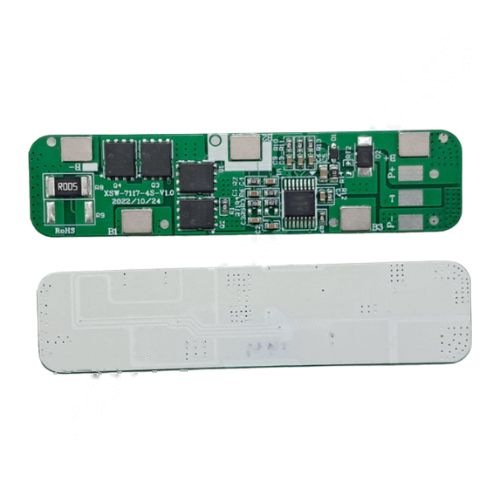

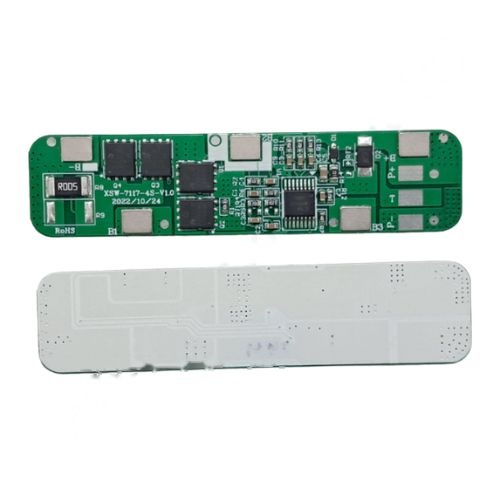

Small BMS NMC 4S 10A XSW PCB Hardware

Product Data Sheet

The BMS NMC 4S 10A XSW PCB is a compact and highly reliable Battery Management System designed for use with 4-cell NMC lithium-ion battery packs. With robust 10A current support and advanced safety features, this module ensures smooth operation, extended battery life, and safe usage in both commercial and DIY battery projects.

Technical Specifications

• •Capacity: Varies by model
• •Nominal Voltage: 14.8V (4S configuration)
• •Maximum Discharge Current: 10A
• •Chemistry: Nickel Manganese Cobalt (NMC) Lithium-Ion
• •Protection: Integrated PCB for overcharge, over-discharge, and short-circuit protection
• •Cycle Life: 500+ charge/discharge cycles
• •Applications: Power tools, robotics, electric vehicles = Performance: High energy density, stable power output, long lifespan, enhanced safety features

Key Features

• •

  Smart Safety IC Integration Precision-engineered control circuitry guards against overcharge, over-discharge, overload, and short circuits.

• •

  Compact Design Lightweight, long-format PCB ideal for tight battery pack configurations or serial housing.

• •

  Temperature Port Ready Comes with built-in T-connector ports to integrate thermal monitoring for added safety.

• •

  10A Current Flow Optimized for medium-load applications like LED packs, lithium drills, e-bikes, and DIY home power kits.

• •

  Environmentally Compliant RoHS-compliant, ensuring safety for long-term commercial production.

Applications

• •Power backup systems
• •E-bike and scooter batteries
• •Cordless power tools
• •Smart home automation energy kits
• •RC vehicles, drones, and hobby packs
• •LED lighting battery banks
• •Portable lithium power banks

The NMC 4S 10A XSW PCB is a high-performance lithium-ion battery designed for power-intensive applications. With a nominal voltage of 14.8V (4S configuration) and a maximum continuous discharge current of 10A, it delivers reliable power for high-demand devices such as power tools, robotics, and electric vehicles. The integrated Protection Circuit Board (PCB) ensures the battery is safeguarded against overcharging, over-discharging, and short circuits, providing added safety and enhancing the battery's lifespan. Utilizing NMC (Nickel Manganese Cobalt) chemistry, it offers high energy density, stable performance, and extended cycle life, making it a reliable and safe energy source for demanding applications.
