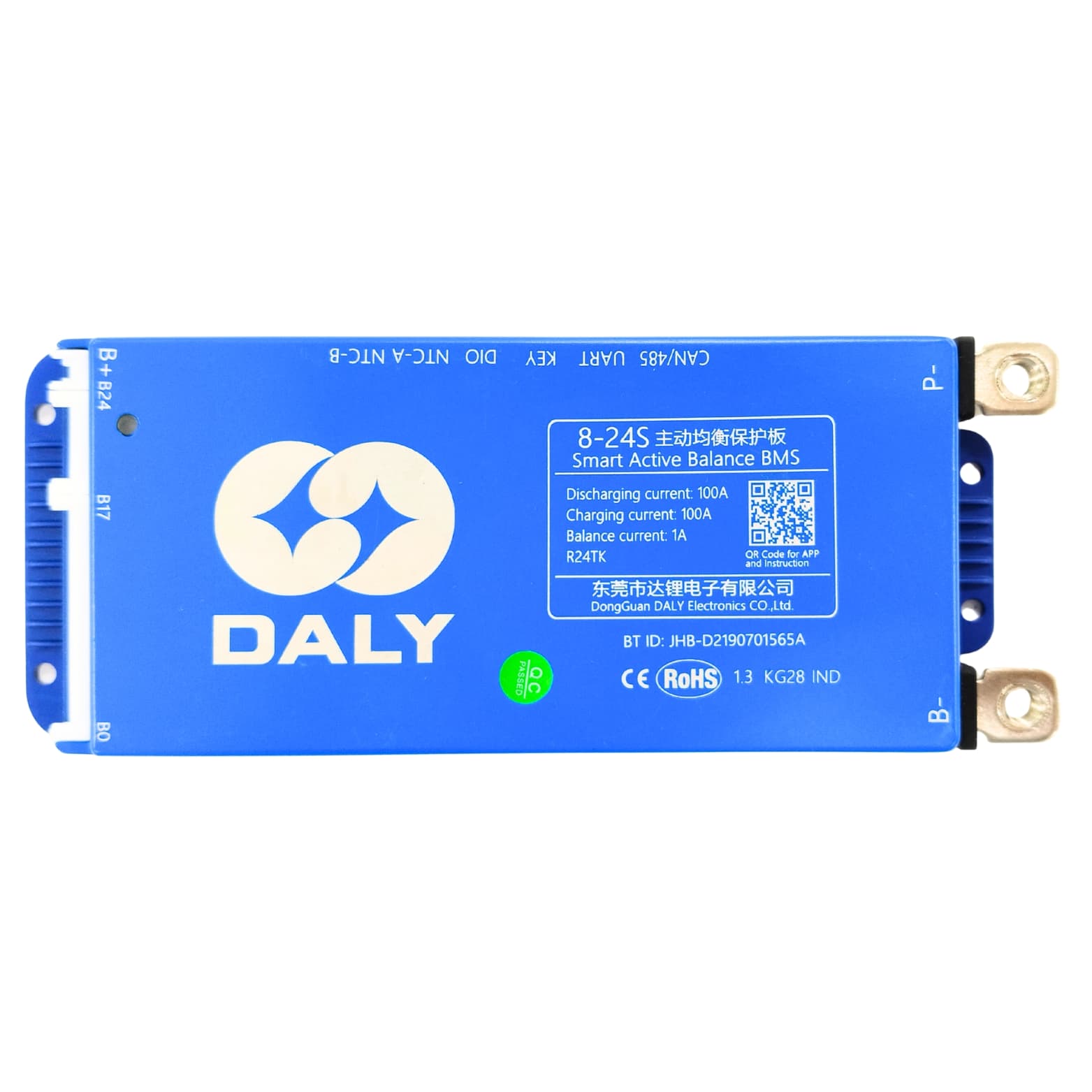

DALY(100BALANCE) SMART BMS 100A (8-24S) (7642)

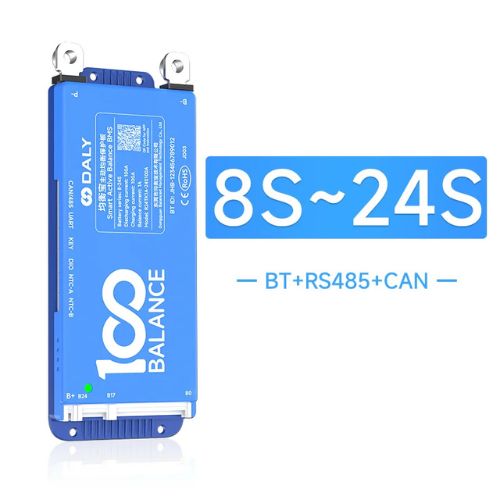

DALY Smart Active Balance BMS 8-24S 100A 100BALANCE (R24TK1A)

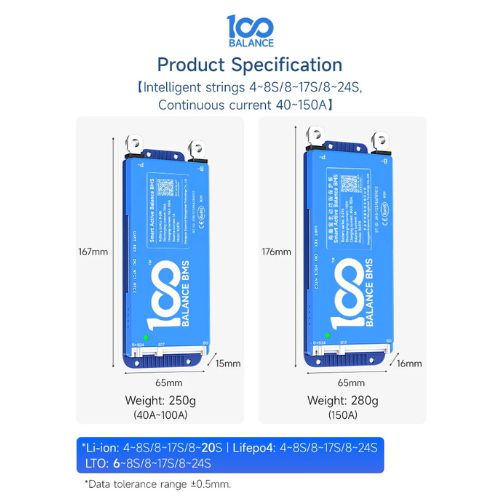

Product Data Sheet

• •Product Name: Smart Active Balance BMS
• •Model Number: R24TK
• •Cell sampling voltage range: 1.5V-4.9V
• •Operating voltage range: >10V
• •Balance method: Active Balance
• •Working power consumption: ≤1.25W
• •working temperature -40°C~85°C

Due to the battery capacity, internal resistance, voltage and other parameter values are not completely consistent, this difference causes the battery with the minimum capacity to be easily overcharged and discharged during charging, and the smallest battery capacity becomes smaller after damage, entering a vicious cycle. The performance of single cell directly affects the charge and discharge characteristics of the whole battery and the deduction of battery capacity. BMS lack of balance function is only a data collector, which is hardly a management system. The active equalization function can realize the maximum continuous 1A equalization current. Transferthe high-energy single cell to the low-energy cell, or use the whole group of energy to supplement the lowest single cell. During the implementation process, the energy is redistributed through the energy storage link, so as to ensure the battery consistency to the greatest extent, improve the battery mileage and extend the battery life.
