DALY(100BALANCE) SMART BMS 80A (4-8S) (7638)

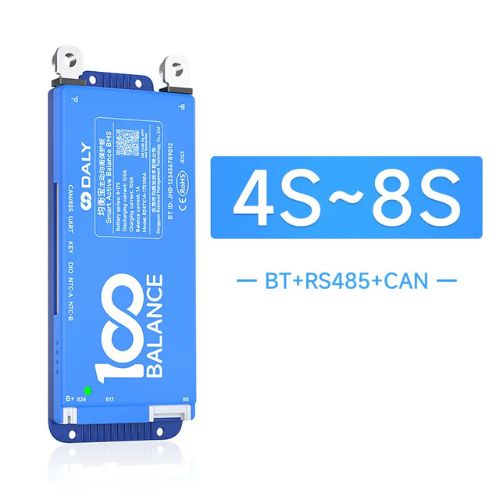

DALY Smart Active Balance BMS 4-8S 80A 100BALANCE (R24TK1A)

Product Data Sheet

The DALY BMS 4-8S 80A 100BALANCE (R24TK1A) is a Smart Active Balancing Battery Management System designed to manage lithium battery packs with 4 to 8 series cells (4S to 8S). Built with intelligent energy balancing, robust protection, and high current capacity, this BMS ensures reliable performance in power-hungry applications like electric bikes, scooters, energy storage, and robotics.

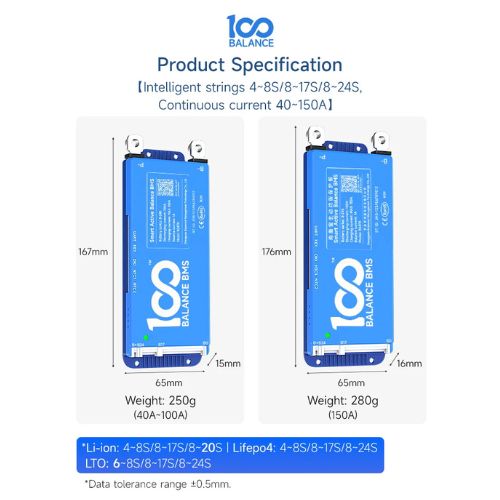

Technical Specifications

• •Product Name: Smart Active Balance BMS
• •Model Number: R24TK
• •Cell sampling voltage range: 1.5V-4.9V
• •Operating voltage range: >10V
• •Balance method: Active Balance
• •Working power consumption: ≤1.25W
• •working temperature -40°C~85°C

Key Features

• •

  Smart 100% Active Balancing This advanced balancing algorithm continuously transfers energy between cells, equalizing voltages in real time and preventing imbalance issues.

• •

  High Current Capability (80A) Handles demanding loads for electric vehicles and high-power systems without thermal or electrical failure.

• •

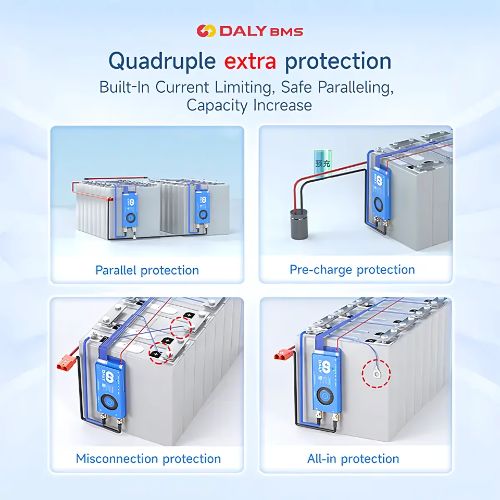

  Comprehensive Safety Protection Includes overcharge, over-discharge, overcurrent, short circuit, and temperature protection, ensuring safe operation at all times.

• •

  Multi-Protocol Communication Supports UART and CAN for integration with smart monitoring systems, enabling real-time data feedback and diagnostics.

• •

  Premium Construction Sturdy aluminum casing offers effective passive cooling and resistance to vibration or mechanical damage.

Applications

• •E-Bikes & Electric Scooters
• •Solar Off-Grid Battery Storage
• •DIY Battery Banks (Powerwall & Energy Storage)
• •Robotics and Industrial Automation
• •Portable Power Solutions

Due to the battery capacity, internal resistance, voltage and other parameter values are not completely consistent, this difference causes the battery with the minimum capacity to be easily overcharged and discharged during charging, and the smallest battery capacity becomes smaller after damage, entering a vicious cycle. The performance of single cell directly affects the charge and discharge characteristics of the whole battery and the deduction of battery capacity. BMS lack of balance function is only a data collector, which is hardly a management system. The active equalization function can realize the maximum continuous 1A equalization current. Transferthe high-energy single cell to the low-energy cell, or use the whole group of energy to supplement the lowest single cell. During the implementation process, the energy is redistributed through the energy storage link, so as to ensure the battery consistency to the greatest extent, improve the battery mileage and extend the battery life.
