DSF20 COMMUNICATION BOARD (b31a)

DSF20 Communication Board – Core Interface Module for Battery Testing Systems

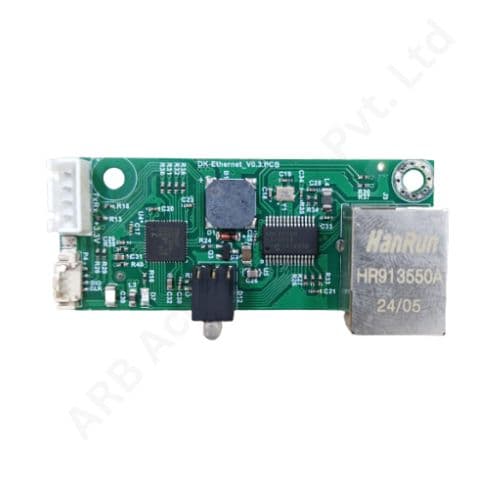

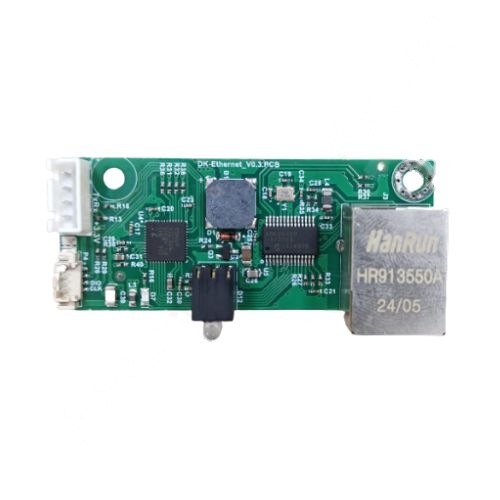

The DSF20 Communication Board is an integral component of the DSF20 battery testing system, designed to facilitate seamless communication between the main control unit and various subsystems. This board ensures accurate data transmission and synchronization, enabling precise control and monitoring of battery charge-discharge cycles. Its robust design and compatibility with multiple communication protocols make it essential for efficient battery testing operations.

Key Features

• •

  Multi-Protocol Support: Supports various communication protocols, including TCP/IP, ensuring compatibility with diverse systems.

• •

  High-Speed Data Transmission: Ensures rapid and reliable data exchange between the main control unit and subsystems, minimizing latency.

• •

  Robust Design: Built to withstand the rigors of continuous operation in industrial environments.

• •

  Easy Integration: Designed for seamless integration into existing DSF20 battery testing setups.

• •

  Diagnostic Indicators: Equipped with LED indicators for real-time status monitoring and troubleshooting.

Technical Specifications

• •

  Model: DSF20 Communication Board

• •

  Communication Interfaces: LAN (TCP/IP), RS485

• •

  Data Transmission Rate: Up to 100 Mbps

• •

  Operating Voltage: 5V DC

• •

  Power Consumption: <5W

• •

  Operating Temperature: 0°C to 50°C

• •

  Storage Temperature: -20°C to 70°C

• •

  Dimensions: 120 mm x 80 mm x 20 mm

• •

  Weight: 150 g

Applications

• •

  Battery Testing Systems: Facilitates communication in DSF20 battery testers, ensuring accurate control and monitoring.

• •

  Industrial Automation: Enables integration of battery testing equipment into larger automated systems.

• •

  Research and Development: Supports advanced battery research by providing reliable data communication channels.
