ESS TERMINAL CO-100A RED

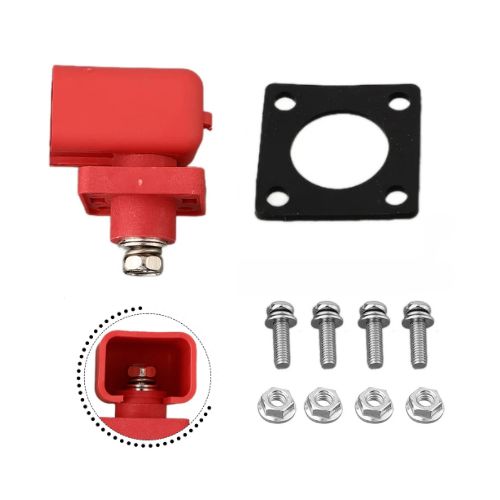

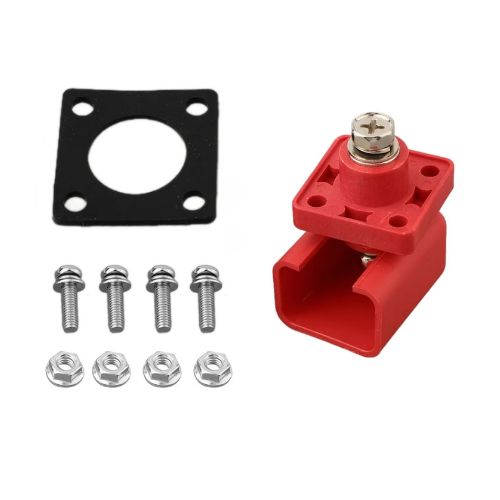

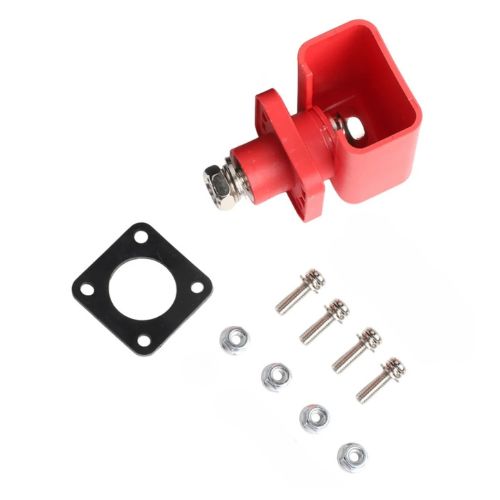

ESS TERMINAL CO-100A (RED)

The ESS Terminal CO-100A (Red) is a premium-grade high-current terminal post designed specifically for Energy Storage Systems (ESS), lithium battery banks, solar installations, and industrial DC power setups. Engineered for durability, safety, and reliability, this terminal ensures optimal conductivity and protection in high-power applications up to 100A.

Perfect for OEMs, system integrators, and DIY energy enthusiasts, this terminal offers a simple and secure connection point for battery inverters, backup systems, and large battery packs.

Key Features

High Current Rating (100A)

• •Handles up to 100 Amps of continuous current.
• •Suitable for heavy-duty applications such as ESS batteries, solar inverters, and high-load DC circuits.

Safe and Insulated Design

• •Comes with a robust insulated red cover to prevent accidental short circuits and touch hazards.
• •High-impact thermoplastic housing ensures safety in rugged and high-vibration environments.

Easy Mounting

• •Standardized base plate for panel mounting on battery boxes or power distribution units.
• •Stainless steel bolts provide strong and corrosion-resistant terminal fastening.

Superior Conductivity

• •High-conductivity copper terminal post with nickel or tin plating (depending on batch).
• •Provides minimal resistance and maximum current flow integrity.

Polarity Distinction

• •Red casing clearly indicates positive polarity, minimizing wiring errors and ensuring installation accuracy.

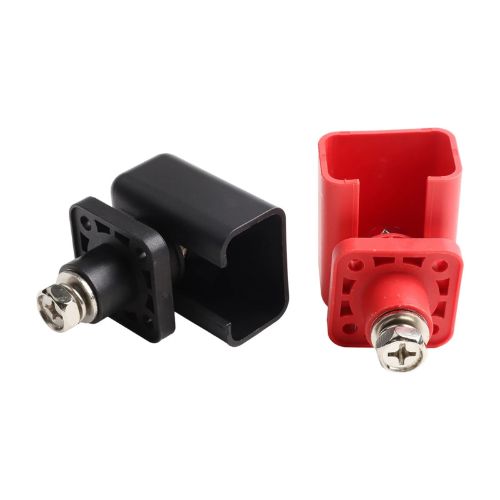

• •Designed to pair with black (negative) CO-100A terminal for complete power configuration (sold separately or in sets).

Technical Specifications

Specification	Details
Product Name	ESS Terminal CO-100A (Red)
Rated Current	100 Amps
Terminal Type	Threaded Stud with Nut and Washer
Color	Red (Positive)
Material	Copper Core, ABS Housing
Mounting Style	Panel Mount (Bolt-on)
Insulation Cover	Yes, Detachable Red Safety Cap
Bolt Material	Stainless Steel
Application Voltage	Up to 1000V DC (Depending on system)

Applications

• •Energy Storage Systems (ESS)
• •Lithium-ion battery enclosures (24V / 48V / 60V / 100V)
• •Off-grid and hybrid solar power systems
• •Electric vehicle battery banks
• •UPS and industrial DC backup systems
• •Marine and RV power systems
