ESS TERMINAL CO-300A ( BLK) (8432)
Minimum Quantity: 3 PCS
Product Description

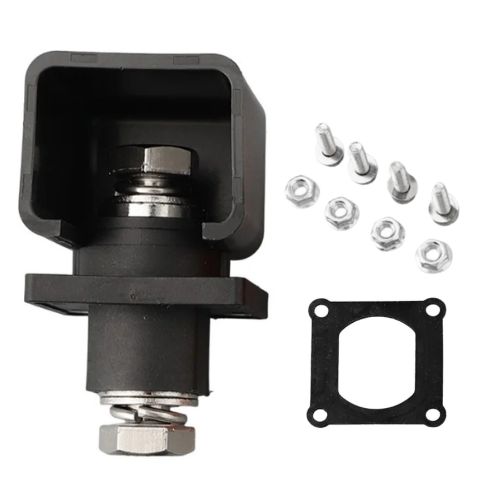

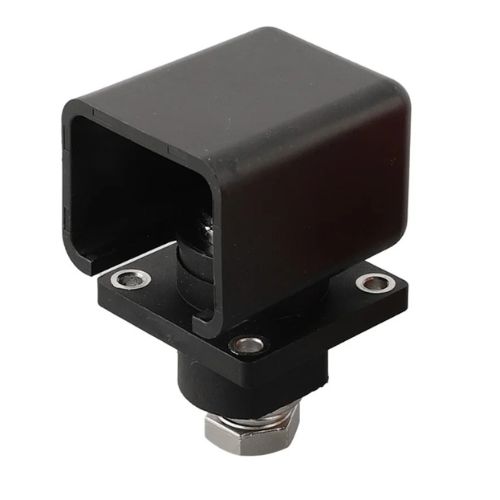

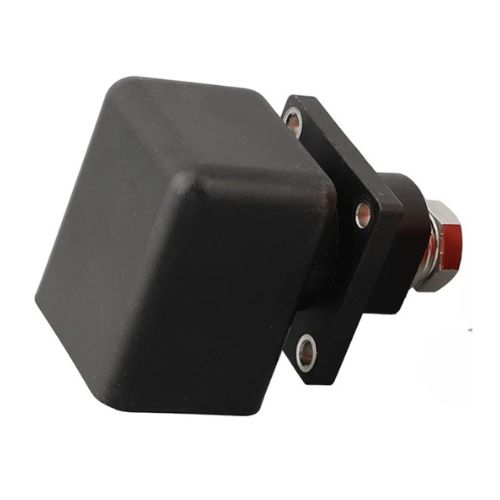

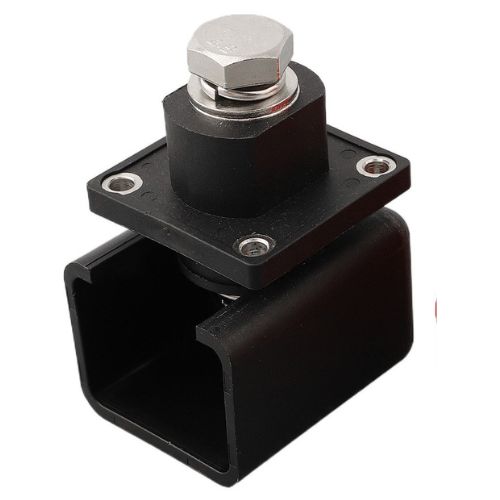

ESS TERMINAL CO-300A ( BLK)
The ESS TERMINAL CO-300A (Black) is a high-performance, heavy-duty terminal designed for applications that demand robust current handling and superior electrical connectivity. Rated at 300 Amps, this terminal is ideally suited for energy storage systems (ESS), high-capacity lithium battery packs, power inverters, solar setups, and electric vehicles.
With its premium-grade black polycarbonate housing and heavy-duty conductor, the CO-300A terminal offers not just outstanding durability, but also clear polarity identification—the black color signifies the negative connection in your power distribution setup.
Key Features
300A High Current Capacity
- •Specially engineered for large-scale power applications.
- •Supports continuous DC loads with minimal power loss and heat generation.
High-Conductivity Copper Core
- •Internal core constructed from tinned or nickel-plated copper for low resistance.
- •Maintains optimal performance under heavy electrical stress.
Industrial-Grade ABS/PC Housing
- •Black housing ensures clear negative terminal identification.
- •Designed for high-impact resistance and insulation safety.
Panel Mount Compatible
- •Comes with pre-drilled flange mounting holes for easy and secure installation.
- •Compatible with a variety of metal and plastic battery enclosures or ESS cabinets.
Protective Cover Cap
- •Fully enclosed terminal ensures protection from dust, water splashes, and accidental contact.
- •Maintains electrical safety in both indoor and harsh field environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | ESS Terminal CO-300A (BLK) |
| Rated Current | 300 Amps (DC) |
| Conductor Material | Copper (Nickel/Tinned Plated) |
| Housing Material | ABS/Polycarbonate |
| Terminal Type | Negative (Black) |
| Mounting Type | Panel Mount (Flanged Base) |
| Protective Cover | Yes (Snap-Fit Design) |
| Applications | ESS, Lithium Packs, Inverters, EVs |
Applications
- •Lithium-ion and LiFePO4 Battery Packs
- •Energy Storage Systems (ESS) Cabinets
- •High Voltage Solar & Hybrid Inverter Systems
- •Electric Vehicle (EV) Battery Modules
- •Industrial UPS and Telecom Power Cabinets
- •Marine and RV Power Distribution Panels
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- 8432
- Product Name
- ESS TERMINAL CO-300A ( BLK) (8432)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Manufacturer
GLANNU INDUSTRIES
Similar Products
AC CONNECTOR GUN FOR EV SINGLE PHASE-16A/230V-5MTR (c339)
AC CONNECTOR GUN FOR EV SINGLE PHASE-32A/230V/3.5MT (c33b)
AC CONNECTOR GUN FOR EV SINGLE PHASE-32A/230V/5MTR (c33a)

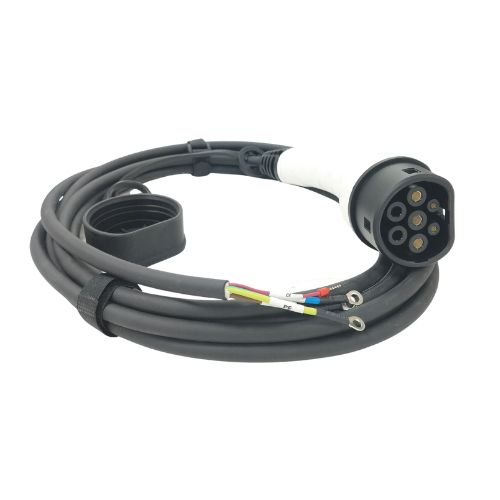

AC CONNECTOR GUN FOR EV THREE PHASE/16A/415V/3.5MTR (c33c)
