ESS TERMINAL CO-300A RED

ESS TERMINAL CO-300A (RED)

The ESS TERMINAL CO-300A (RED) is a robust and industrial-grade power terminal connector, designed to handle high current loads in demanding electrical systems. With its 300 Amp capacity and high-conductivity core, this terminal is ideal for energy storage systems (ESS), lithium battery packs, power inverters, solar installations, and electric vehicles (EVs).

Distinguished by its red color, the terminal clearly marks the positive connection, reducing errors in system installations and ensuring safety and performance.

Key Features

300A High Current Rating

Built to endure heavy loads, the CO-300A RED terminal ensures minimal voltage drop and reliable conductivity under full-load operation.

Premium Copper Conductor Core

Constructed with a high-purity copper core, nickel or tin-plated for enhanced resistance to corrosion and heat buildup.

Color-Coded Red Insulating Housing

Encased in a red polycarbonate enclosure to indicate positive polarity, aiding in foolproof wiring and safe system setup.

Durable & Insulated Casing

The insulated casing provides shock protection, dust resistance, and moisture shielding, keeping the terminal reliable in rugged field or indoor conditions.

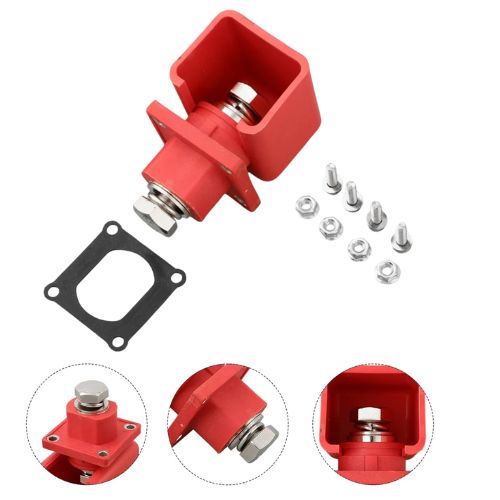

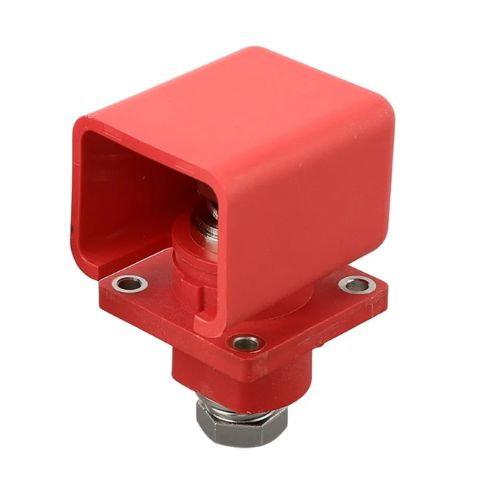

Panel Mount Ready

Pre-drilled flanged base with bolt holes makes it simple to securely mount on battery cabinets, ESS panels, or industrial enclosures.

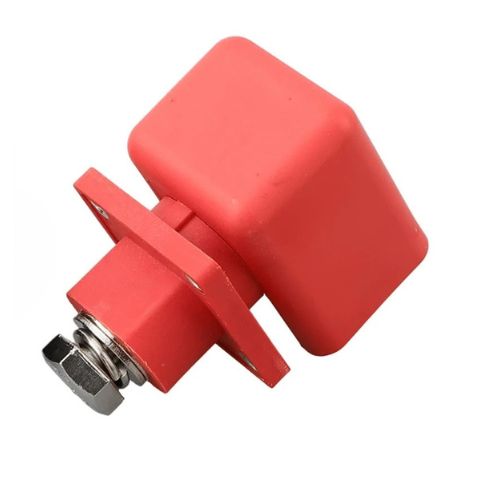

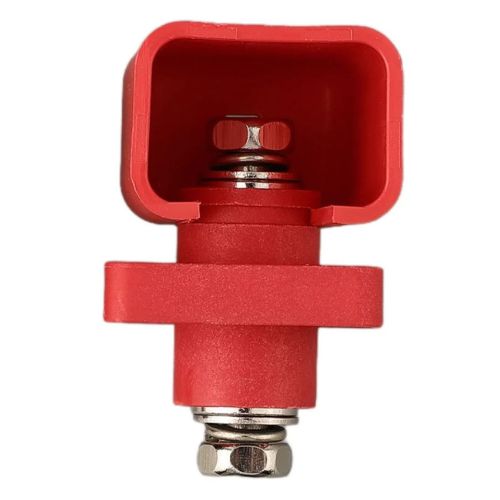

Included Protective Cap

Snap-fit red cap protects against accidental shorting or contact, especially in maintenance-heavy environments.

Technical Specifications

Attribute	Details
Product Code	CO-300A (Red)
Current Rating	300A DC Continuous
Core Material	Copper (Nickel/Tinned Plated)
Housing Material	ABS / Polycarbonate
Color	Red (Positive)
Mount Type	Panel Mount with Flanged Base
Terminal Type	Heavy-Duty Lug Terminal
Protective Cover	Yes (Red Cap Included)
Applications	ESS, Battery Cabinets, Solar, EVs

Applications

• •Energy Storage Systems (ESS)
• •High-Capacity Lithium-Ion or LiFePO4 Battery Modules
• •Hybrid and Off-grid Solar Inverters
• •Power Backup Units and UPS Systems
• •Electric Vehicles and E-Mobility Solutions
• •Marine Power Installations and RVs
