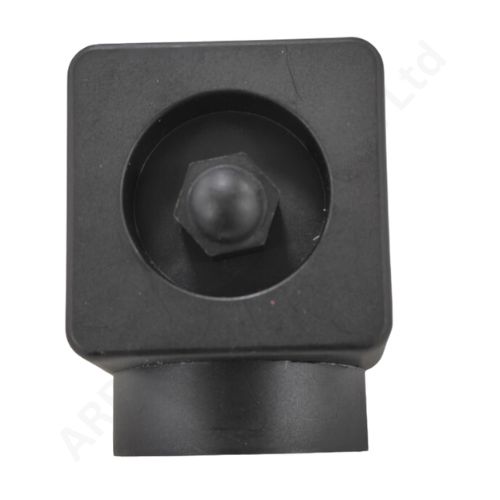

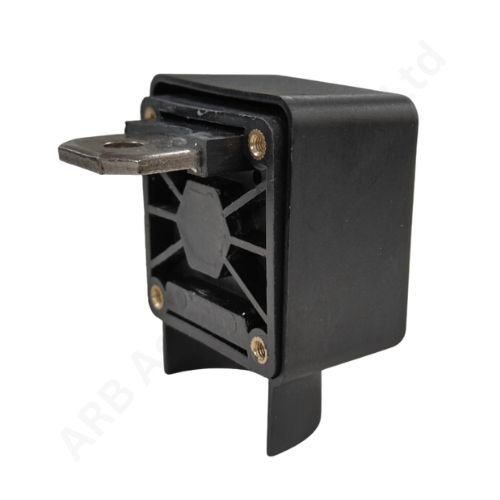

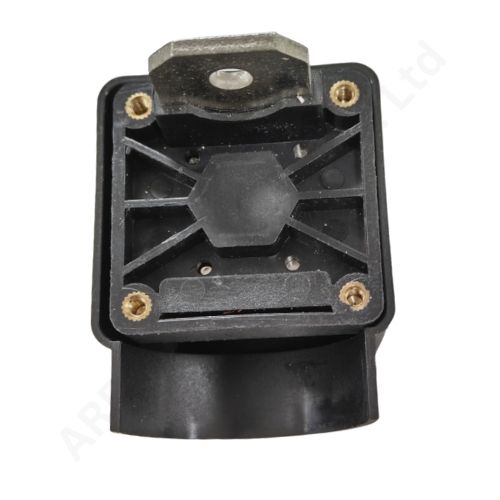

ESS TERMINAL FX-300A (BLK) (8426)
Minimum Quantity: 5 PCS
Product Description
ESS TERMINAL FX-300A (BLK)
The ESS TERMINAL FX-300A (BLK) is a heavy-duty, high-performance terminal connector engineered specifically for Energy Storage Systems (ESS), solar battery banks, UPS systems, and electric vehicle battery modules. Designed to handle up to 300A of continuous current, this robust terminal ensures both high conductivity and reliable mechanical fastening, making it a vital component in high-load DC applications.
Key Features
High Current Handling – 300 Amps
This terminal is optimized to withstand a continuous current of 300A, making it ideal for large-scale battery arrays and power-intensive energy storage applications. Whether you’re running an inverter, a backup power system, or a commercial ESS, this terminal is built for long-lasting performance.
Rugged Black Polycarbonate Shell
Encased in a flame-retardant, industrial-grade polycarbonate shell, the terminal offers superior protection against electrical hazards, physical impacts, and corrosion. The black color designates it for negative polarity, helping to prevent wiring errors and improve visual organization.
Hex Nut Fastening for Secure Connections
Equipped with a heavy-duty hex bolt and washer, the FX-300A ensures strong and stable electrical connections, reducing the risk of power loss due to vibration or loose terminations. Perfect for bus bar, battery lug, or cable-to-terminal mounting.
Compact Mounting Base
With its space-saving design and rear-entry wiring, the FX-300A is suitable for tight battery compartments and can be mounted on panels or racks using standard screws.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | ESS TERMINAL FX-300A (BLK) |
| Rated Current | 300 Amps |
| Max Voltage | Up to 1000V DC |
| Material | Flame-Retardant Polycarbonate (Housing) |
| Terminal Type | Hex Nut Bolt Terminal |
| Color | Black (Negative Terminal) |
| Mounting Type | Panel/Surface Mount |
| Polarity | Negative |
| Application | ESS, Solar, EV, Inverters, UPS, DC Banks |
Applications
- •Energy Storage System (ESS) Banks
- •Electric Vehicle Battery Packs
- •Solar Power Inverter Setups
- •Backup UPS Terminals
- •High-current DC Bus Bars
- •Industrial and Commercial Battery Cabinets
Key Features
- •Premium Quality
- •Reliable Performance
- •Long Service Life
- •Certified Standards
Technical Specifications
- Model
- 8426
- Product Name
- ESS TERMINAL FX-300A (BLK) (8426)
Applications
- •Battery Packs
- •Energy Storage
- •Power Systems
Manufacturer
GLANNU INDUSTRIES
