ESS TERMINAL FX-300A RED

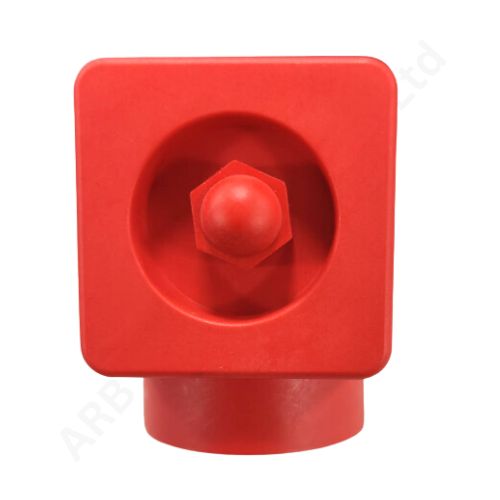

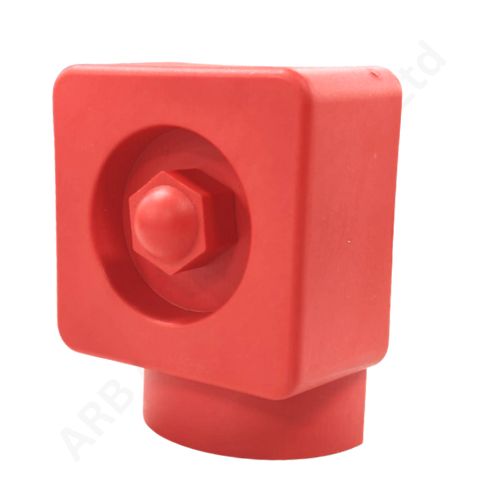

ESS TERMINAL FX-300A (RED)

Elevate your power infrastructure with the ESS TERMINAL FX-300A (RED) - a premium-grade terminal designed for high-current energy applications. Whether you're managing solar power systems, industrial batteries, or EV setups, this 300A-rated connector ensures uncompromised safety, performance, and durability. It is specially built for environments demanding high-conductivity and long-lasting reliability in a compact form factor.

Key Benefits

High Current Capacity - 300 Amps

The FX-300A terminal is capable of handling up to 300A continuous current, making it ideal for heavy-duty battery packs, energy storage systems (ESS), and high-load DC connections.

Durable Flame-Retardant Casing

Crafted with high-grade, flame-retardant polycarbonate, the housing provides excellent thermal resistance, impact strength, and insulation, ensuring dependable protection in rugged industrial settings.

Polarity Precision - RED for Positive

Its bright red-colored housing visually denotes positive polarity, helping prevent wiring mistakes and simplifying installation in dual-terminal configurations alongside the black FX-300A negative terminal.

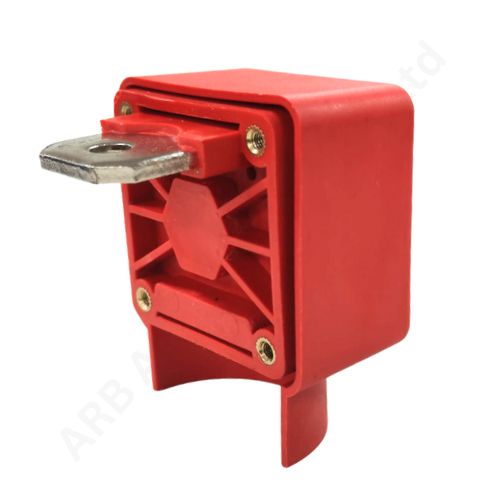

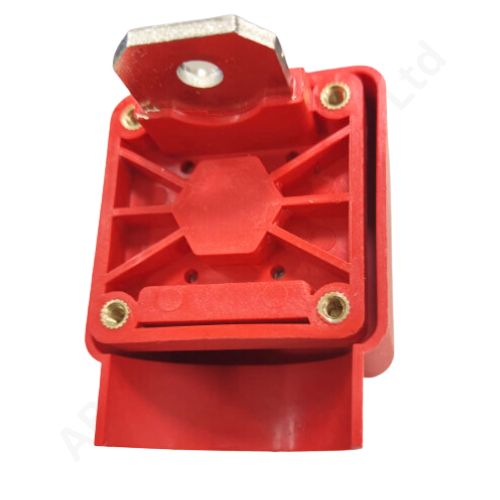

Reinforced Hex Nut Terminal

Equipped with a hex bolt terminal system, this connector guarantees a strong mechanical bond and optimal current flow. The bolt and washer assembly supports secure cable termination for high-power transfer.

Key Elements

• •Color-Coded Red: Easy polarity identification for positive terminals.
• •Compact Design: Saves space in tight compartments or ESS enclosures.
• •Heavy-Duty Connector Bolt: Engineered for high-current conductivity and torque retention.
• •Impact & Heat Resistant Body: Withstands industrial temperature variations and mechanical stress.
• •Universal Mounting: Can be easily mounted on battery cabinets, racks, panels, or ESS chassis.

Technical Specifications

Specification	Details
Product Name	ESS TERMINAL FX-300A (RED)
Rated Current	300 Amps
Max Voltage	Up to 1000V DC
Housing Material	Flame-retardant Polycarbonate
Terminal Hardware	Hex Bolt + Washer
Color	Red (Positive Polarity)
Mount Type	Panel Mount
Application	ESS, EV, Solar, Inverter, Battery Bank
Operating Temp Range	-20°C to 120°C

Applications

• •Energy Storage Systems (ESS)
• •Solar Power Battery Terminals
• •Electric Vehicle Battery Modules
• •Industrial Inverter Connections
• •High-Amperage DC Distribution Panels
• •UPS and Commercial Power Cabinets
