HARNESS CONNECTOR

Harness Connector

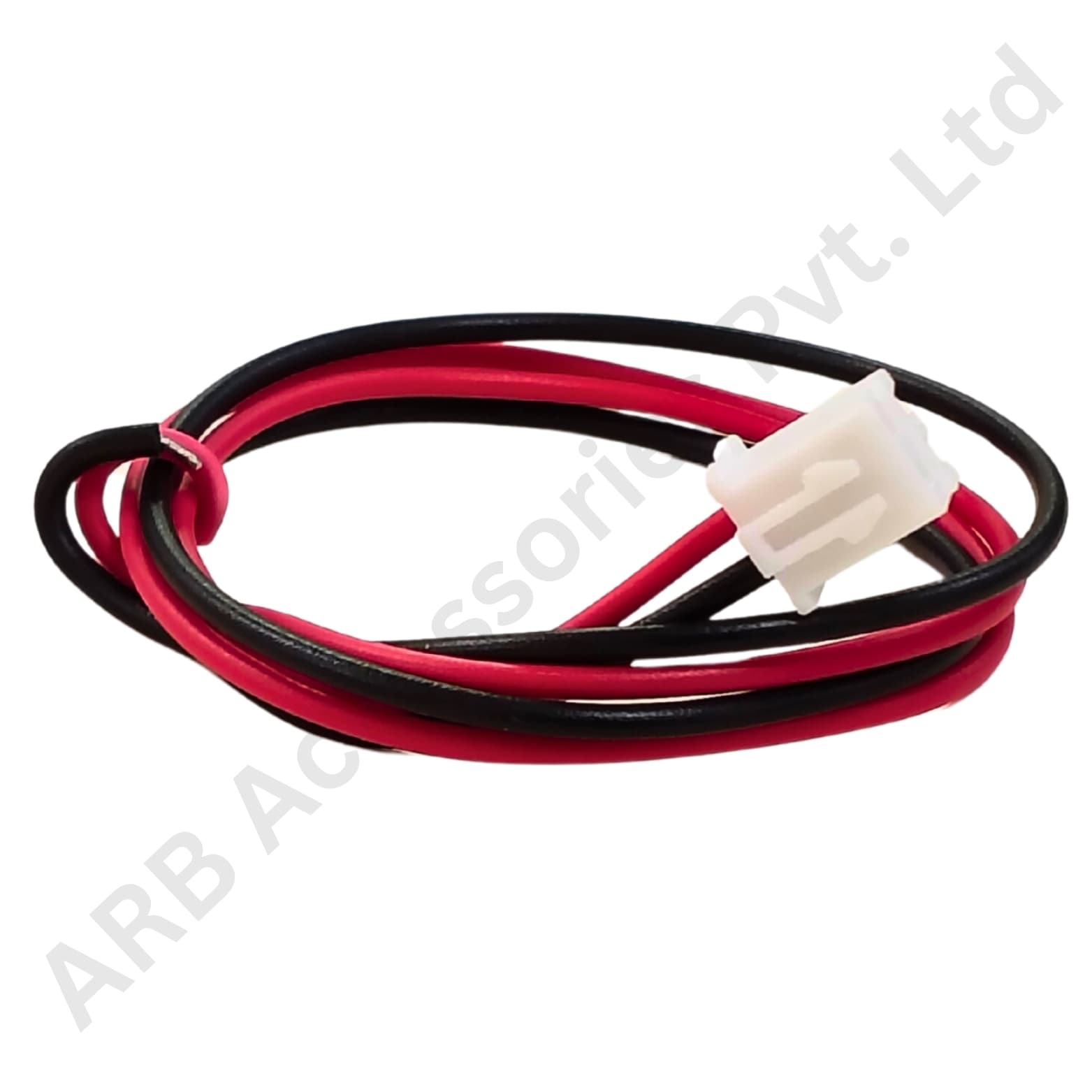

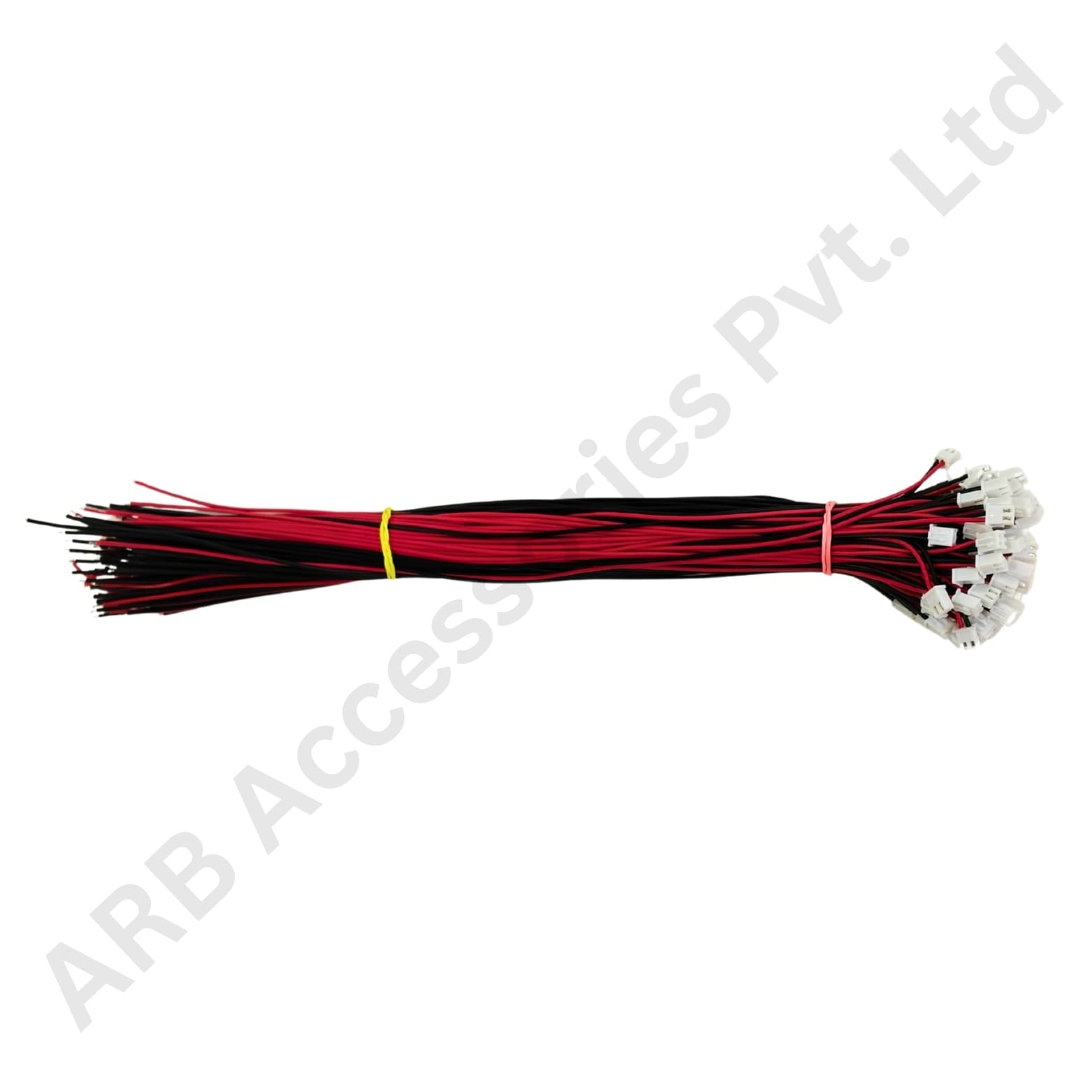

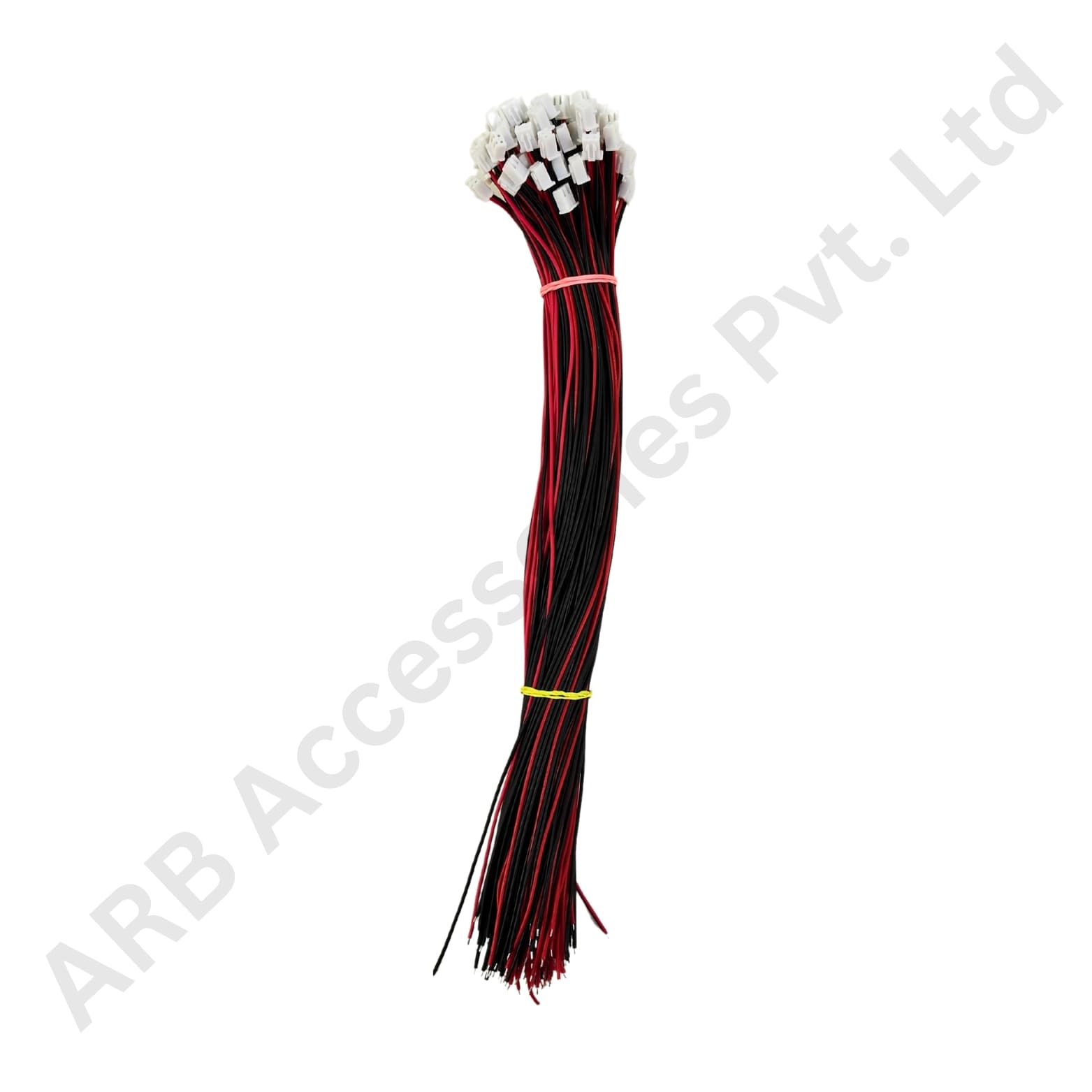

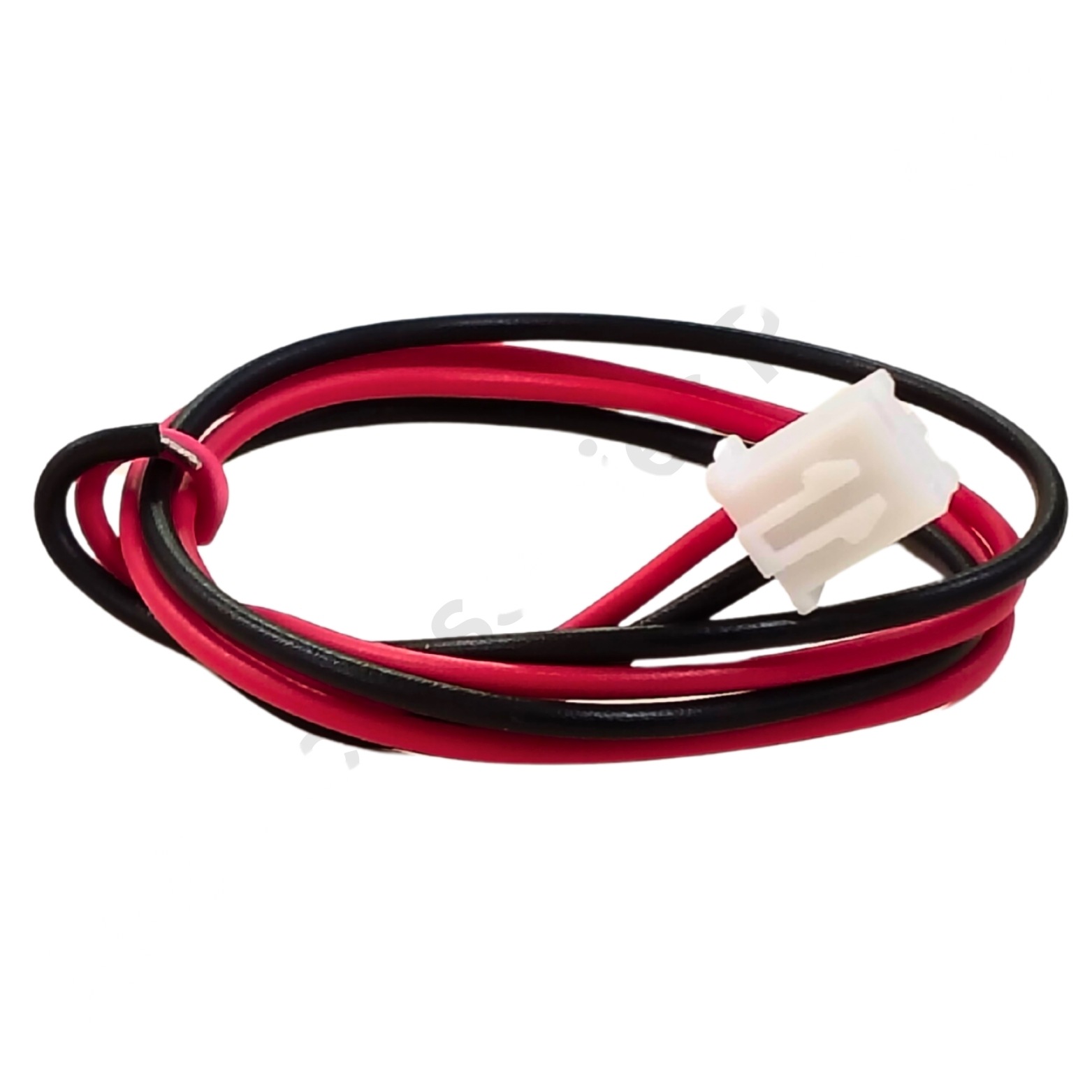

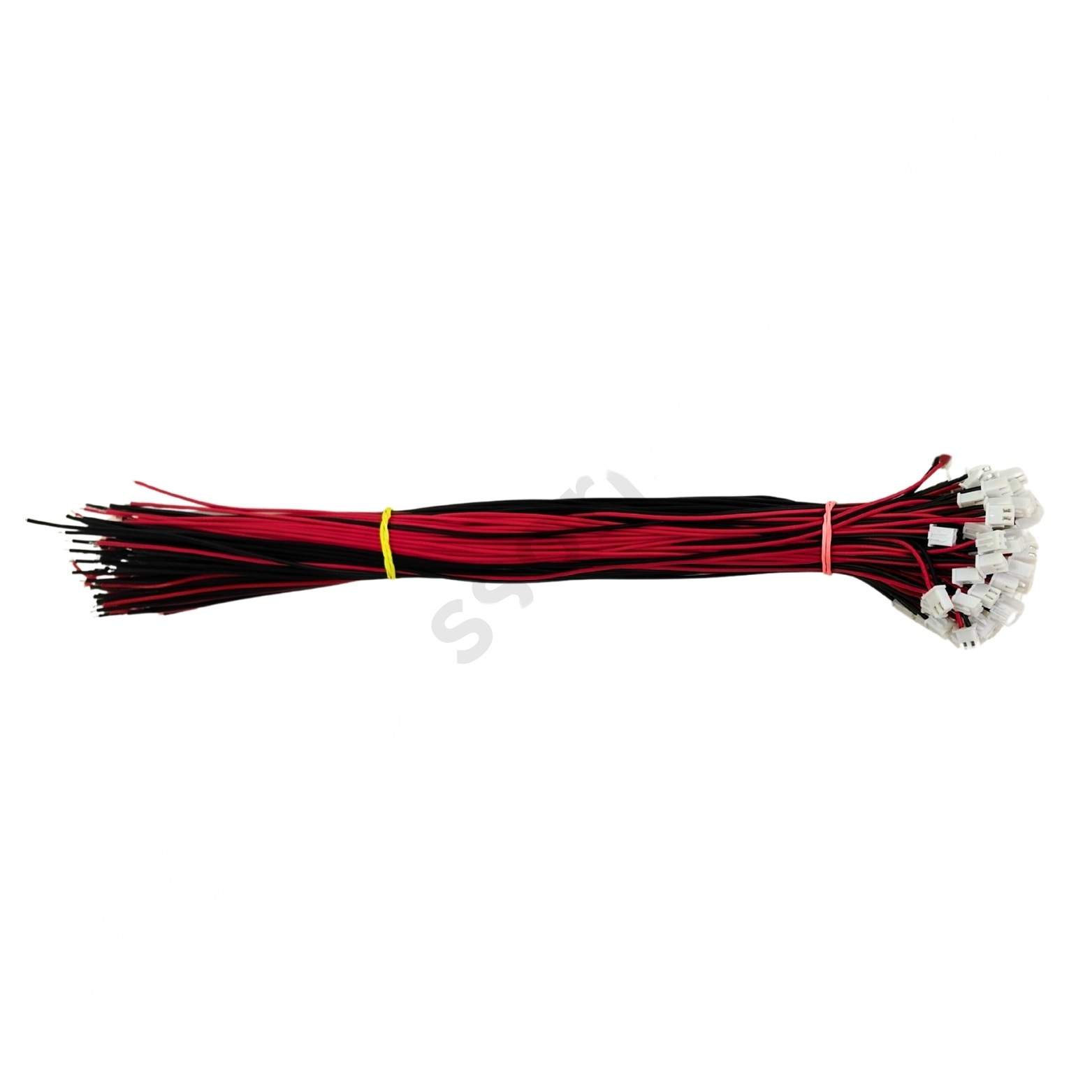

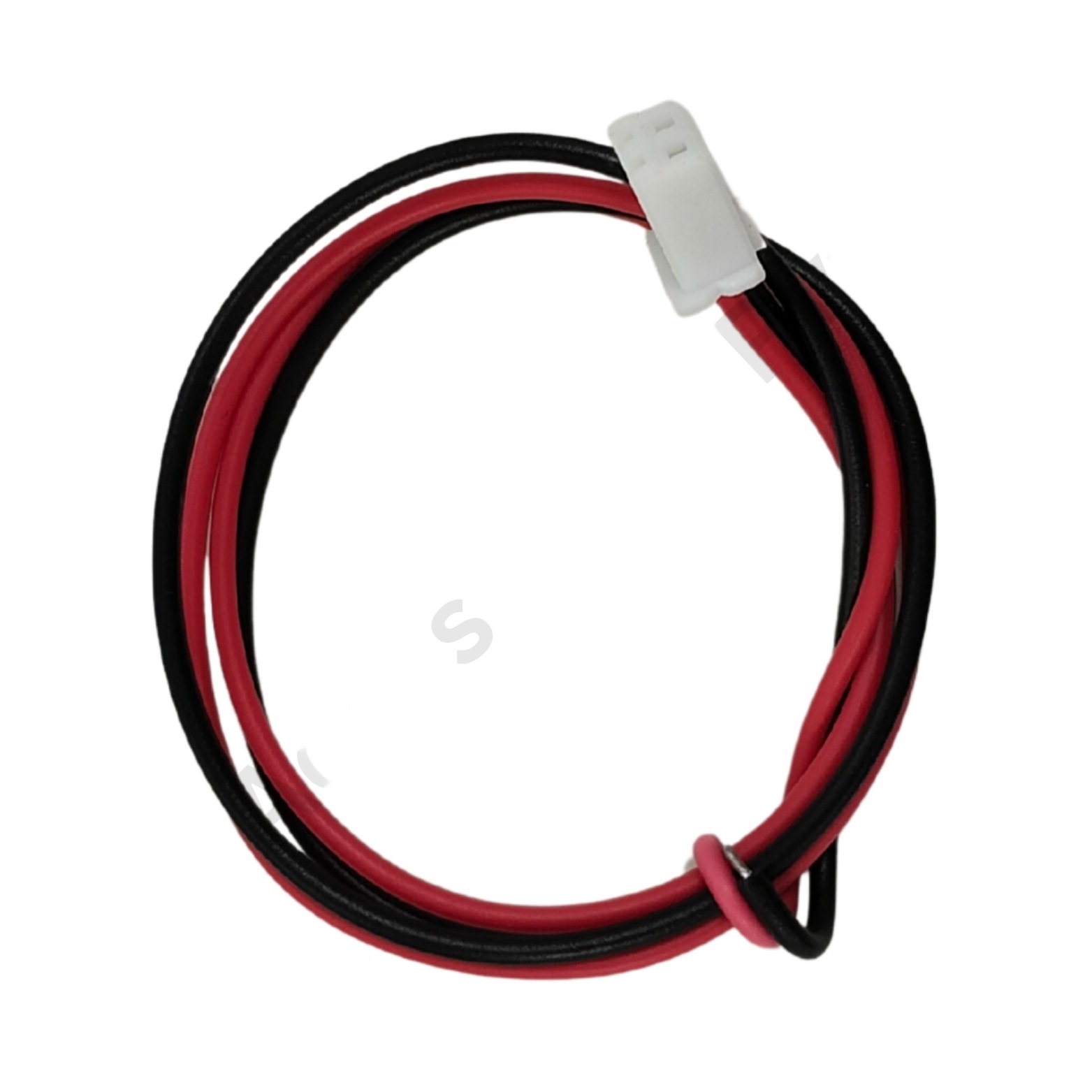

The Harness Connector is a general-purpose wiring connection component intended for compatible battery, BMS, electrical harness, control, or equipment wiring assemblies. In battery systems, harness connectors are used to create an organized detachable interface between groups of wires and the device or subassembly they serve. Depending on the exact connector, the circuit may carry voltage-sense signals, temperature-sensor signals, communication lines, control wiring, or another low-voltage electrical function.

Harness connectors are selected by housing shape, pin count, terminal family, pitch, keying, mating connector and wire size. Correct matching is essential because a connector that looks similar may use a different terminal layout or pin assignment. The connector should therefore be paired with the exact harness, PCB header, battery-management system, charger, tester or other equipment for which its mechanical and electrical interface is designed.

Technical Details

In a battery-management harness, each wire may connect to a different cell-group voltage or signal. A connector that physically fits is not necessarily electrically compatible. The cavity order, keying, terminal assignment, and polarity must match the mating device exactly. Connecting a voltage-sense harness in the wrong order can apply unexpected voltages to electronics even when the connector housing looks correct.

For this reason, technicians should document pin numbers and wire functions before replacing a harness connector. If a BMS connector is involved, follow the BMS manufacturer's wiring diagram and connect cell-sense wires in the specified sequence.

Select the Harness Connector by matching the actual housing, pin count, terminal family, pitch, keying, locking mechanism and mating connector. In battery-management harnesses, pin order is especially important because adjacent positions can represent different cell-voltage taps, temperature sensors, communication lines or control signals. A connector that physically fits is not necessarily electrically compatible. For current-carrying circuits, conductor size and terminal current capability must also suit the application; for signal and sensing circuits, secure terminal retention and accurate pin mapping are the priority.

Applications

• Lithium battery pack wiring and battery-management harness connections.

• BMS sense leads, temperature-sensor harnesses and monitoring connections.

• Battery testers, chargers and control-panel wiring assemblies.

• EV auxiliary wiring, equipment harnesses and service leads.

• Custom battery-manufacturing fixtures and electronic assemblies with matching pinout.

Installation Guide

If the connector uses crimp terminals, use terminals designed for the housing and a crimp tool suitable for the terminal family and conductor size. A good crimp should secure the conductor electrically and provide strain support on the insulation where the terminal design provides it. Poor crimping can create intermittent signals, unwanted resistance, or a loose terminal that backs out of the housing.

After inserting terminals, check that each one is locked in place and cannot be pulled out with light tension. Verify pin-to-pin continuity and check for unintended shorts before connecting the harness to live battery equipment.
