JK SMART BMS 8-20S 200A BD6A20S20P

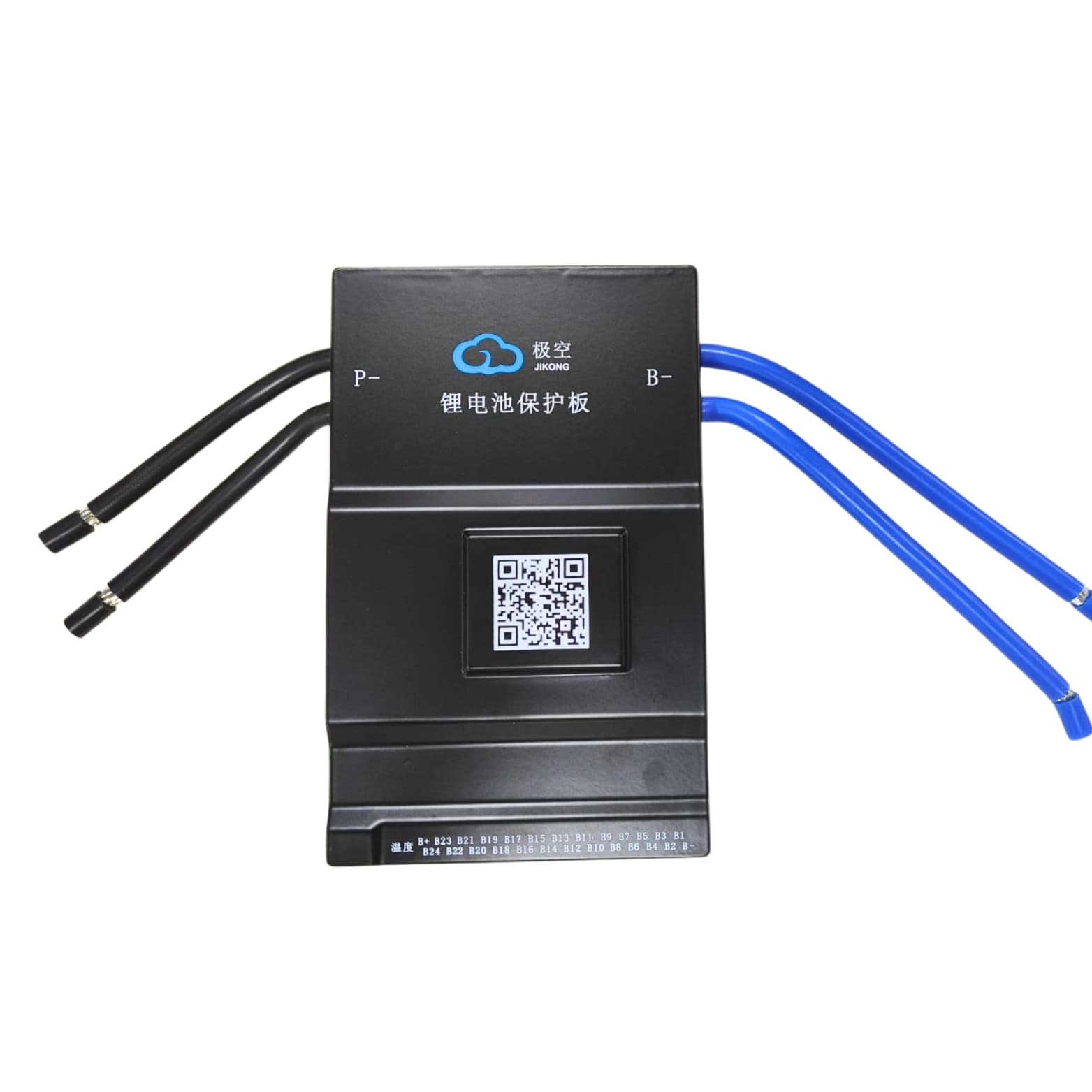

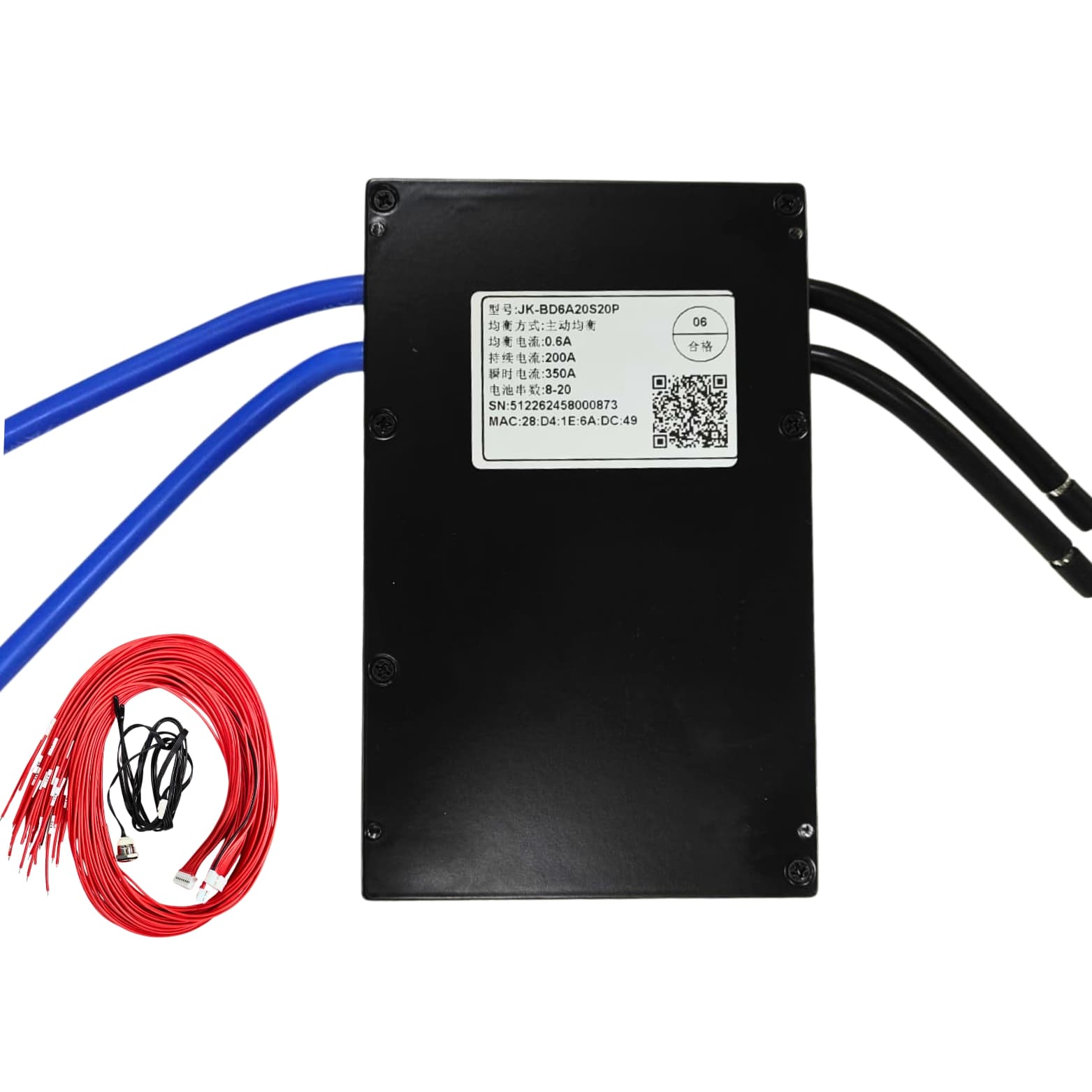

JK BMS Smart CAN-Bus 8-20S 200A (JK-BD6A20S20P)

A smart lithium battery management system (BMS) for LiFePO4, Li-ion and LTO battery packs. Supports 8 to 20 series cells with 200A continuous charge and discharge current, and communicates with inverters and monitoring systems over CAN-Bus and RS485.

Key Features

Configurable 8S-20S cell count for 24V, 48V and 60V battery packs 200A continuous charge and discharge rating CAN-Bus 2.0 and RS485 communication ports for inverter and monitoring integration Active cell balancing for extended pack life Bluetooth app for configuration and live cell-level monitoring Over-voltage, under-voltage, over-current, short-circuit and over-temperature protection Temperature sensors for cell and MOSFET monitoring

Applications

Solar energy storage systems (ESS) Home and commercial battery backup Electric vehicle and e-mobility battery packs Telecom and industrial DC power systems

Package Contents

1x JK BMS JK-BD6A20S20P unit 1x Balance lead harness Temperature sensors User manual
