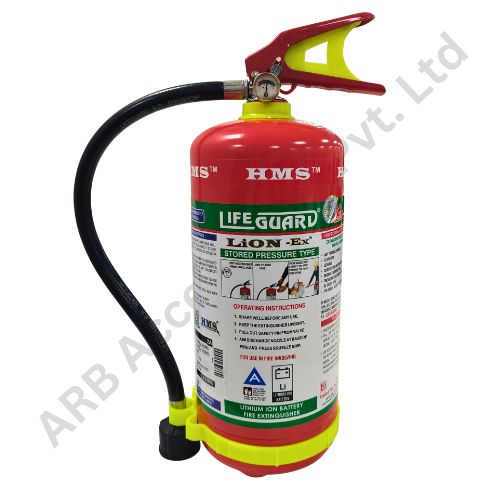

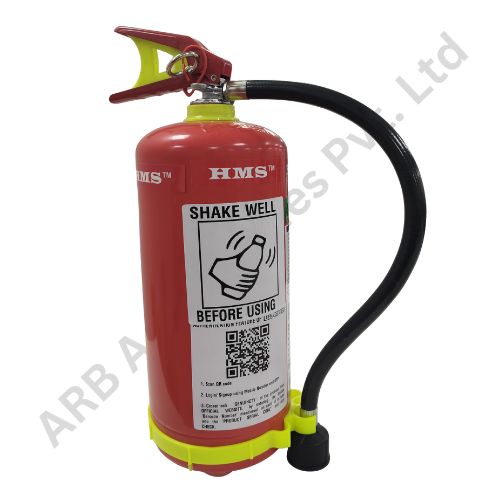

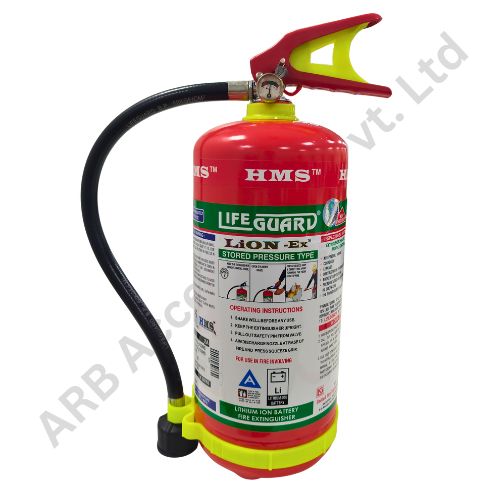

LITHIUM FIRE EXTINGUISHER (4LTR) (bafe)

LITHIUM EXTINGUISHER FIRE CAPACITY 4LTR

Product Data Sheet

The LIFE GUARD LION-EX 4 LTR Lithium Fire Extinguisher is an advanced fire protection solution designed specifically to extinguish lithium-ion battery fires. This extinguisher is ideal for use in environments that store, handle, or manufacture lithium battery-powered devices such as electric vehicles (EVs), power tools, laptops, and mobile devices. The stored pressure type mechanism ensures rapid deployment and consistent discharge during fire emergencies.

Technical Specifications

Specification	Description
Extinguisher Type	Stored Pressure
Capacity	4 Litres
Fire Class	Class D (Lithium-ion fires)
Extinguishing Agent	Special Lithium-ion Fire Suppressant
Operating Pressure	~15 bar
Discharge Time	Approx. 15-20 seconds
Operating Temp. Range	-20°C to +60°C
Cylinder Material	MS Body with corrosion resistance
Nozzle Type	Flexible Discharge Hose with Grip
Mounting Type	Wall-mountable
Certifications	ISI Marked / BIS Certified

Key Features

• •Designed to tackle fires involving lithium-ion batteries
• •Non-conductive and safe to use on electrical equipment
• •Easy-to-operate squeeze grip handle with safety pin
• •Comes with flexible discharge hose for precise aiming
• •Eco-friendly, residue-free extinguishing medium
• •Ideal for high-risk zones: EV hubs, battery testing labs, mobile service centers, warehouses, etc.
• •Highly effective for early-stage lithium battery fire suppression

Applications

• •Electric Vehicle Charging Stations & Workshops
• •Lithium Battery Storage & Assembly Units
• •UPS and Power Bank Factories
• •IT Server Rooms & Data Centers
• •Mobile & Laptop Service Stations
• •Educational Institutes with EV Labs

Instructions

1. •Pull the safety pin to unlock the handle.
2. •Aim the discharge hose at the base of the fire.
3. •Squeeze the lever to release the extinguishing agent.
4. •Sweep the stream side-to-side to cover the fire completely.

Safety

• •Certified to Indian Standards (ISI/BIS)
• •Complies with guidelines for Lithium Battery Fire Safety
• •Manufactured with strict quality control
