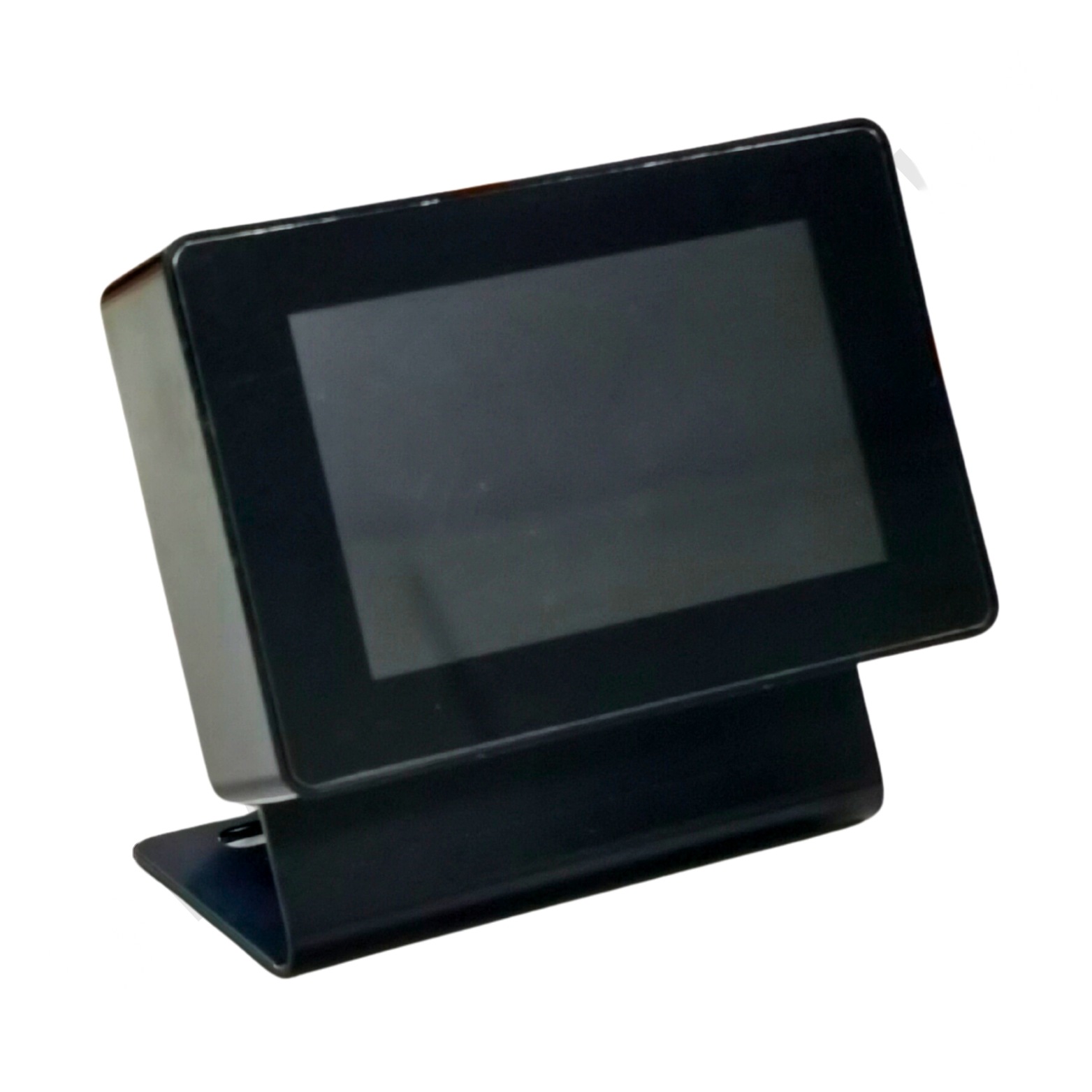

JBD SOC DISPLAY LD07

SOC DISPLAY LD07 JBD

Product Data Sheet

The JBD LD07 SOC Display LCD Battery Monitor is an intelligent LCD display module designed to work with JBD (Jiabaida) Smart Battery Management Systems (BMS). Using UART or RS485 communication (model dependent), the LD07 provides real-time monitoring of battery parameters, including State of Charge (SOC), battery voltage, current, temperature, and alarm status, allowing users to monitor battery performance without requiring a mobile app or computer.

Designed for LiFePO₄ and Li-ion battery packs, the LD07 is ideal for electric vehicles (EVs), e-bikes, golf carts, solar energy storage systems, UPS systems, marine batteries, and industrial battery packs.

Key Features

• •Model: JBD LD07 LCD Battery Monitor
• •Compatible with JBD Smart BMS
• •Supports UART or RS485 communication (depending on the display version)
• •Displays State of Charge (SOC) in real time
• •Monitors battery voltage, charging/discharging current, and temperature
• •Displays battery status and fault/alarm information
• •High-contrast LCD screen for clear visibility
• •Low power consumption for continuous operation
• •Compact panel-mount design for easy installation
• •Suitable for LiFePO₄ (LFP) and Li-ion (NMC) battery systems

Applications

Lithium Battery Packs

Provides real-time monitoring for LiFePO₄ and Li-ion battery packs.

Electric Vehicles (EVs)

Ideal for electric scooters, e-bikes, e-rickshaws, golf carts, and utility electric vehicles.

Energy Storage Systems (ESS)

Used in solar battery banks, residential ESS, and commercial battery storage systems.

UPS & Backup Power Systems

Monitors battery status in UPS units, inverter batteries, and backup power systems.

Marine & RV Batteries

Suitable for marine battery banks, camper vans, and recreational vehicle power systems.

Industrial Battery Systems

Used in telecom power systems, battery cabinets, industrial equipment, and OEM battery packs.

The JBD LD07 SOC Display LCD Battery Monitor is a smart LCD display accessory for JBD Smart BMS that provides real-time monitoring of battery State of Charge (SOC), voltage, current, temperature, and system status. It enables users to manage lithium battery performance safely and efficiently in EVs, energy storage systems, UPS installations, marine applications, and industrial battery systems.
