SPOT WELDING MACHINE GLITTER 801A WITH 70A PIN

Product Data Sheet

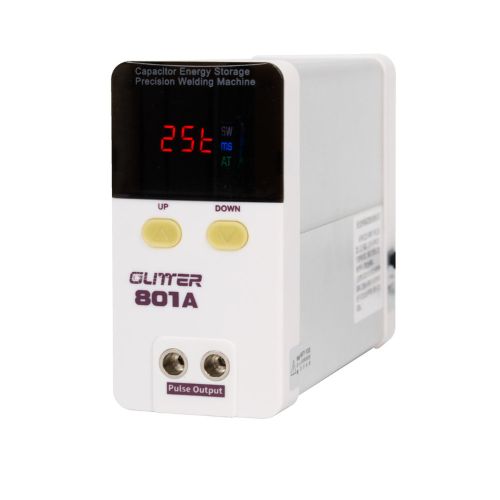

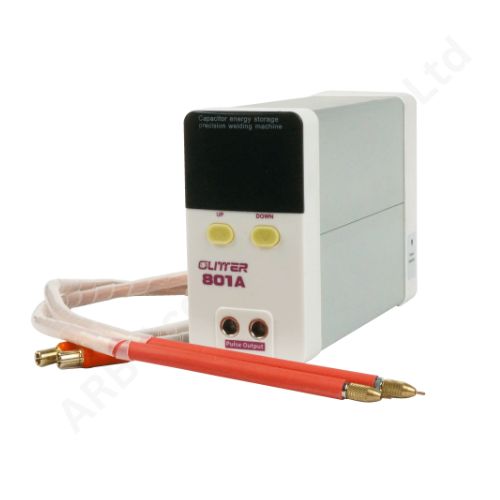

The GLITTER 801A is a compact, high-performance capacitor energy storage pulse spot welder designed for precision welding of battery cells and small electronic components. Its advanced energy-gathered pulse technology ensures reliable and efficient welds, making it an ideal choice for both hobbyists and professionals involved in battery pack assembly.

Key Features

• •

  Capacitor Energy Storage: Equipped with two super capacitors, the 801A stores energy efficiently, delivering consistent welding performance without interfering with the electrical circuit.

• •

  High Pulse Power: Delivers a peak pulse power of 11.6 kW, allowing for effective welding of various battery materials, including pure nickel and nickel-plated strips up to 0.3 mm thick.

• •

  Adjustable Energy Settings: Features a user-friendly interface with LED display, enabling precise control over welding parameters to suit different material thicknesses.

• •

  Automatic Welding Mode: The 'AT' mode facilitates hands-free operation, enhancing efficiency during large-scale battery pack production.

• •

  Compact and Portable Design: Its lightweight aluminum alloy shell ensures durability and effective heat dissipation, making it suitable for on-the-go applications.

Technical Specifications

• •Model: GLITTER 801A
• •Input Voltage: AC 100–240V, 50/60Hz
• •Output Voltage: 5.3V (Peak)
• •Peak Welding Energy: Up to 60 J
• •Pulse Power: 11.6 kW (Peak)
• •Energy Grade: 0–99T
• •Pulse Time: 0–5 ms
• •Preload Delay: 20–50 ms
• •Charging Time: 30–40 minutes before first use

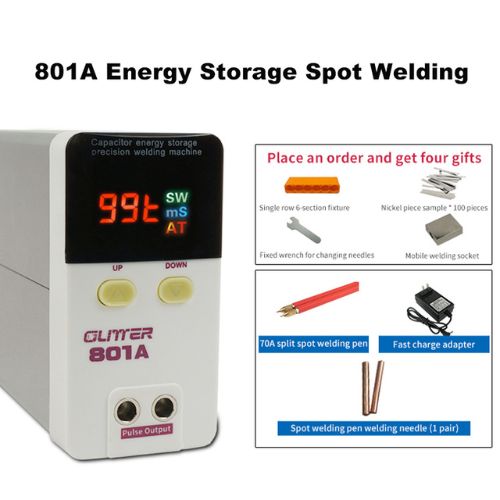

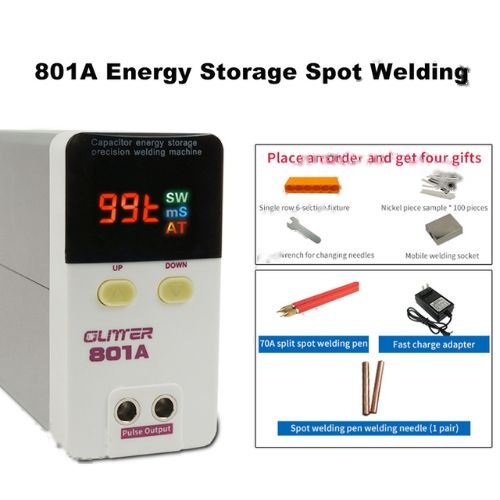

• •Welding Pen: 70A separated-style spot welding pen

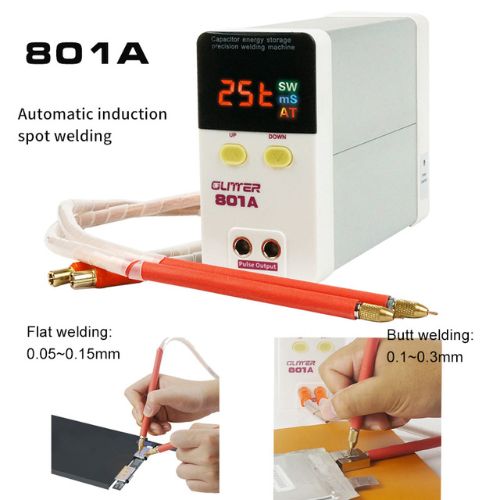

• •Welding Thickness:
  • •Pure nickel: 0.05–0.15 mm
  • •Nickel-plated: 0.05–0.2 mm
  • •With fixed seat butt welding: 0.3 mm
• •Dimensions: 176 mm × 126 mm × 67 mm
• •Weight: 1.45 kg

Applications

• •Assembly of lithium-ion battery packs for mobile devices, e-bikes, and power tools

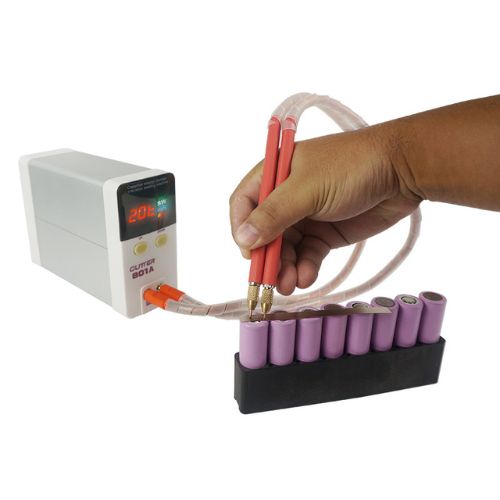

• •Welding of nickel strips to battery cells
• •Repair and prototyping of battery modules
• •Suitable for DIY enthusiasts and professional battery pack builders

The GLITTER 801A spot welding machine stands out for its high power output, precision, and portability. Whether you're assembling battery packs for mobile devices or engaging in DIY electronics projects, this machine offers reliable performance and ease of use.​
