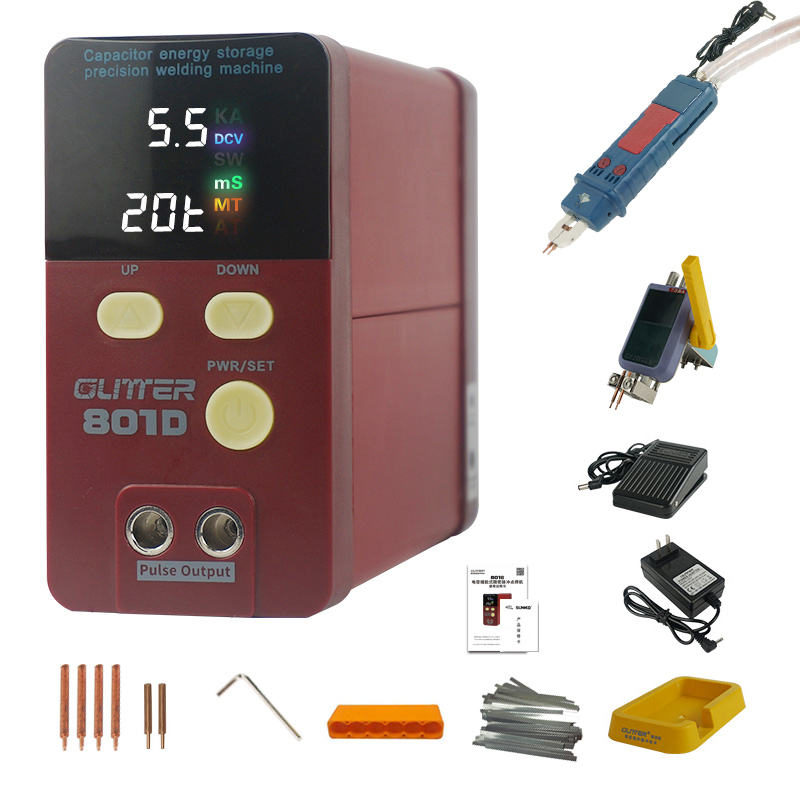

GLITTER SPOT WELDING MACHINE 801D WITH 73B

SPOT WELDING MACHINE GLITTER 801D WITH 73B PIN

Product Data Sheet

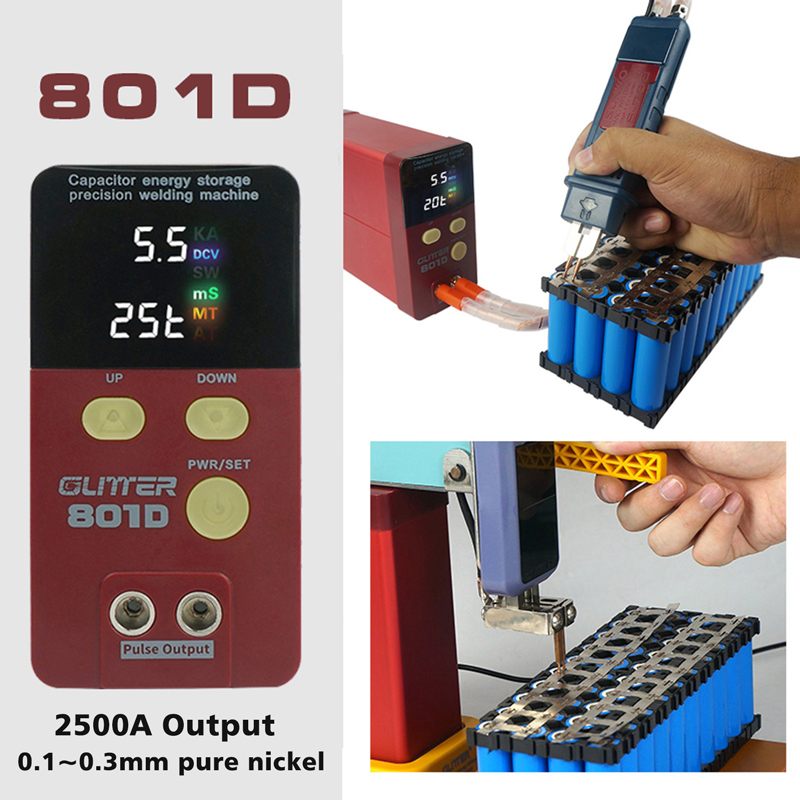

The Glitter 801D is a high-performance capacitor energy storage pulse spot welding machine designed for precision welding of lithium-ion battery packs. With its advanced features and enhanced capabilities, it is ideal for professionals and enthusiasts working on battery assembly projects.

Key Features

• •

  Capacitor Energy Storage Technology: Utilizes super capacitors for energy storage, ensuring stable and powerful welding pulses without interference to the electric circuit.

• •

  High Welding Power: Delivers a peak pulse power of 12 kW and a maximum welding energy of 238 J, capable of welding nickel strips up to 0.4mm thick.

• •

  Automatic and Manual Welding Modes:

  • •AT Mode: Automatic welding without the need for a foot pedal, suitable for continuous operations.
  • •MT Mode: Manual welding with foot pedal control, allowing for precise adjustments and control.
• •

  Adjustable Parameters:

  • •Energy Grade: 0-99T
  • •Pulse Time: 0-20ms
  • •Preload Delay: 200-500ms
• •

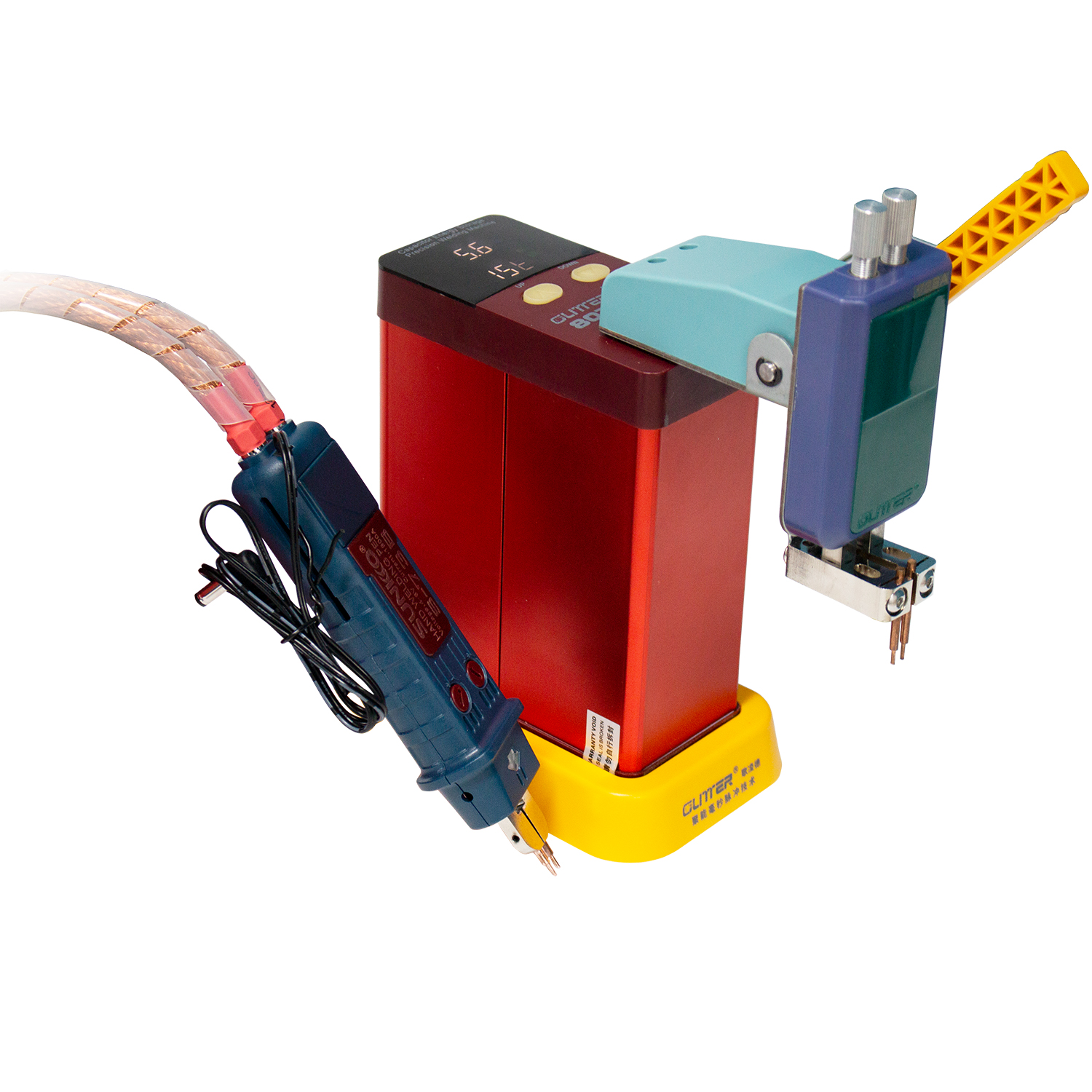

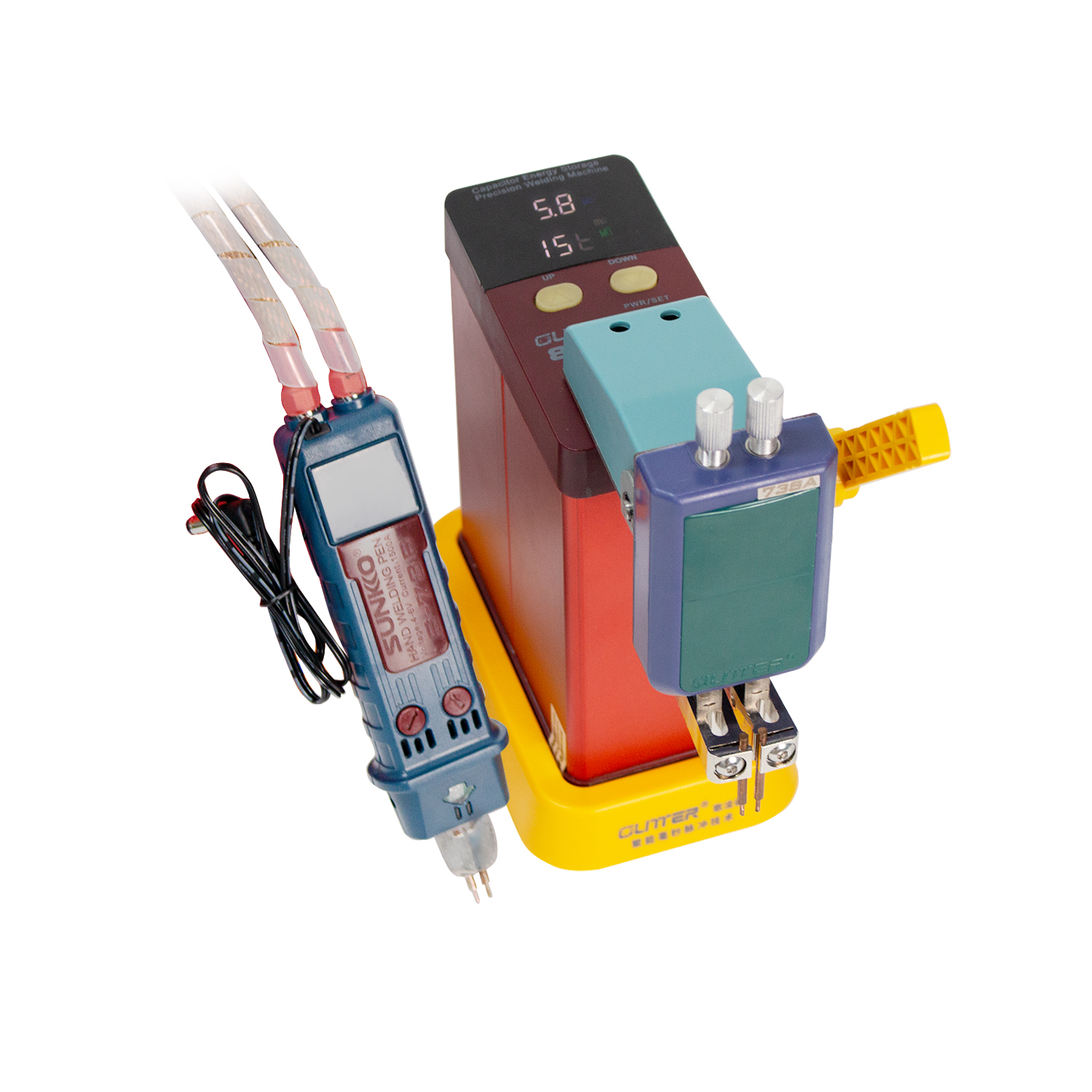

  73B Integrated-style Welding Pen: Designed for efficient heat dissipation and extended use, ensuring consistent and reliable welds.

• •

  Compact and Portable Design: The machine's aluminum alloy shell ensures effective heat dissipation, and its compact size (176mm x 126mm x 67mm) and lightweight design (approximately 2 kg) make it easy to transport.

Technical Specifications

• •Model: Glitter 801D
• •Input Voltage: AC 100-240V, 50/60Hz
• •Output Voltage: 5.8V (Peak)
• •Peak Welding Energy: 238 J
• •Pulse Power: 12 kW (Peak)
• •Trigger Mode: AT/MT
• •Energy Grade: 0-99T
• •Pulse Time: 0-20ms
• •Preload Delay: 200-500ms
• •Charging Time: 30-40 minutes
• •Welding Thickness:
  • •Pure nickel: 0.05-0.3mm
  • •Nickel-plated: 0.1-0.4mm
  • •Aluminum-nickel composite sheet to LFP battery aluminum electrode: 0.05-0.15mm
• •Dimensions: 176mm x 126mm x 67mm
• •Weight: Approximately 2 kg

The Glitter 801D spot welding machine stands out for its high power output, precision, and portability. Whether you're assembling battery packs for mobile devices or engaging in DIY electronics projects, this machine offers reliable performance and ease of use.
