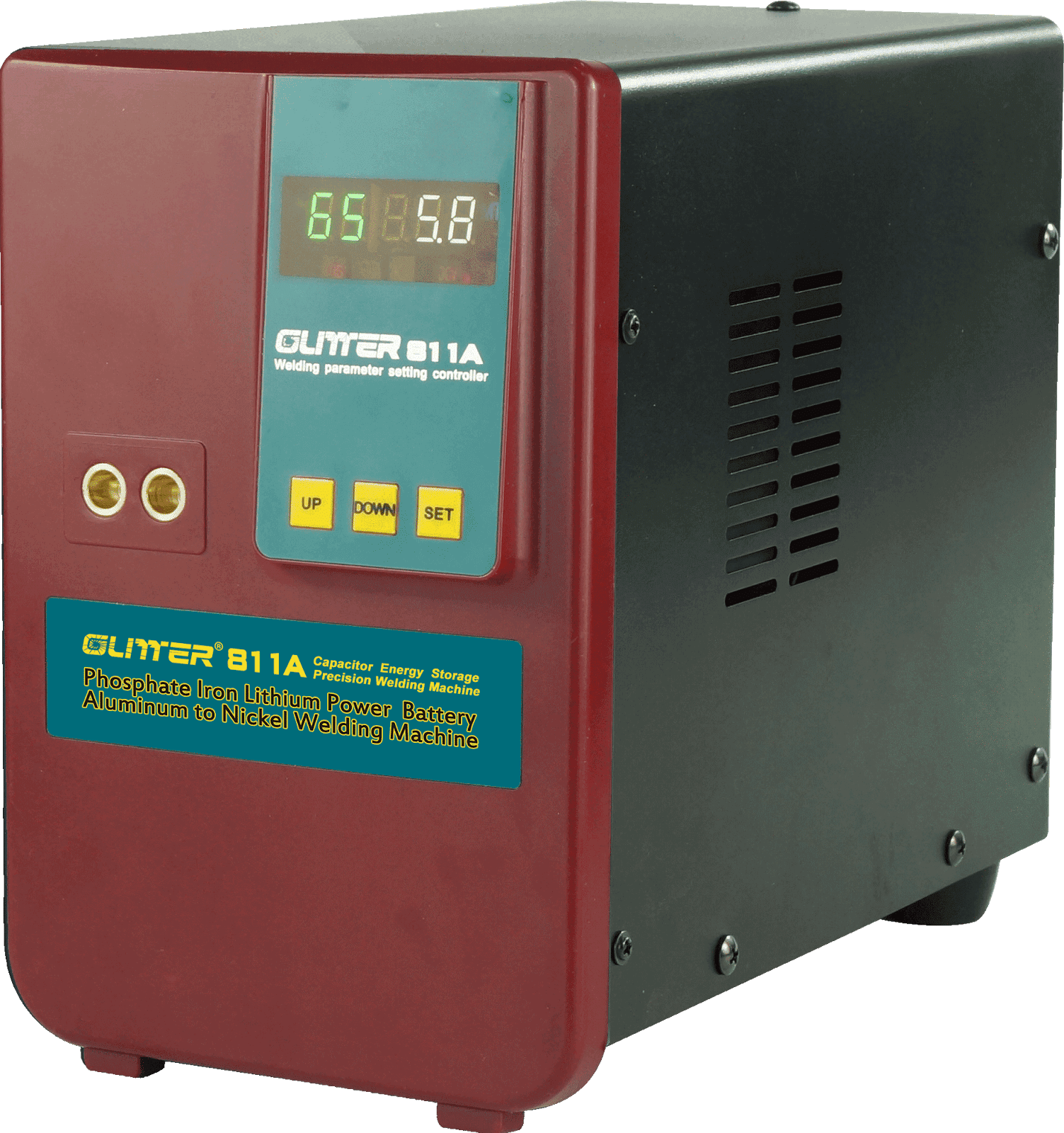

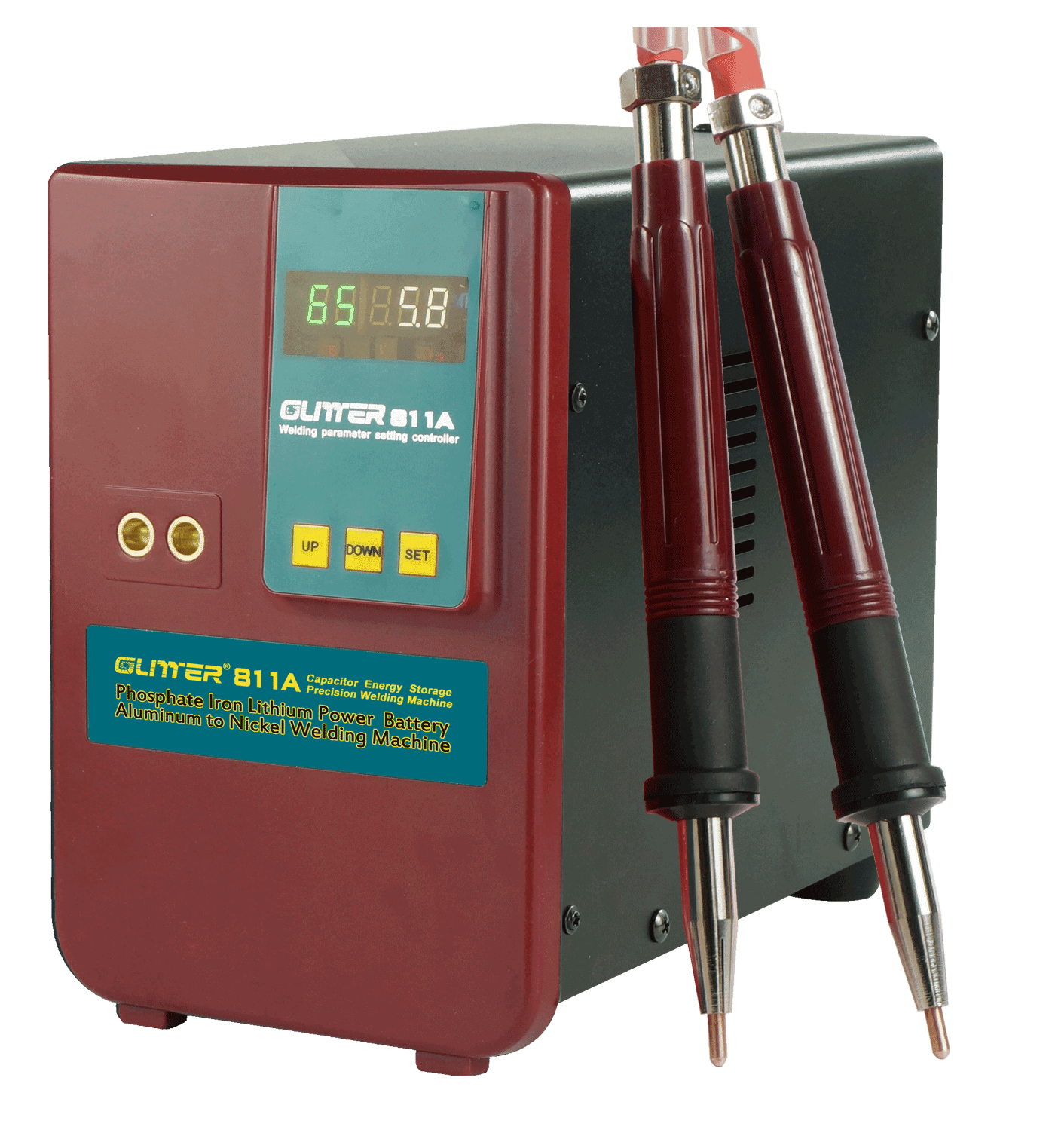

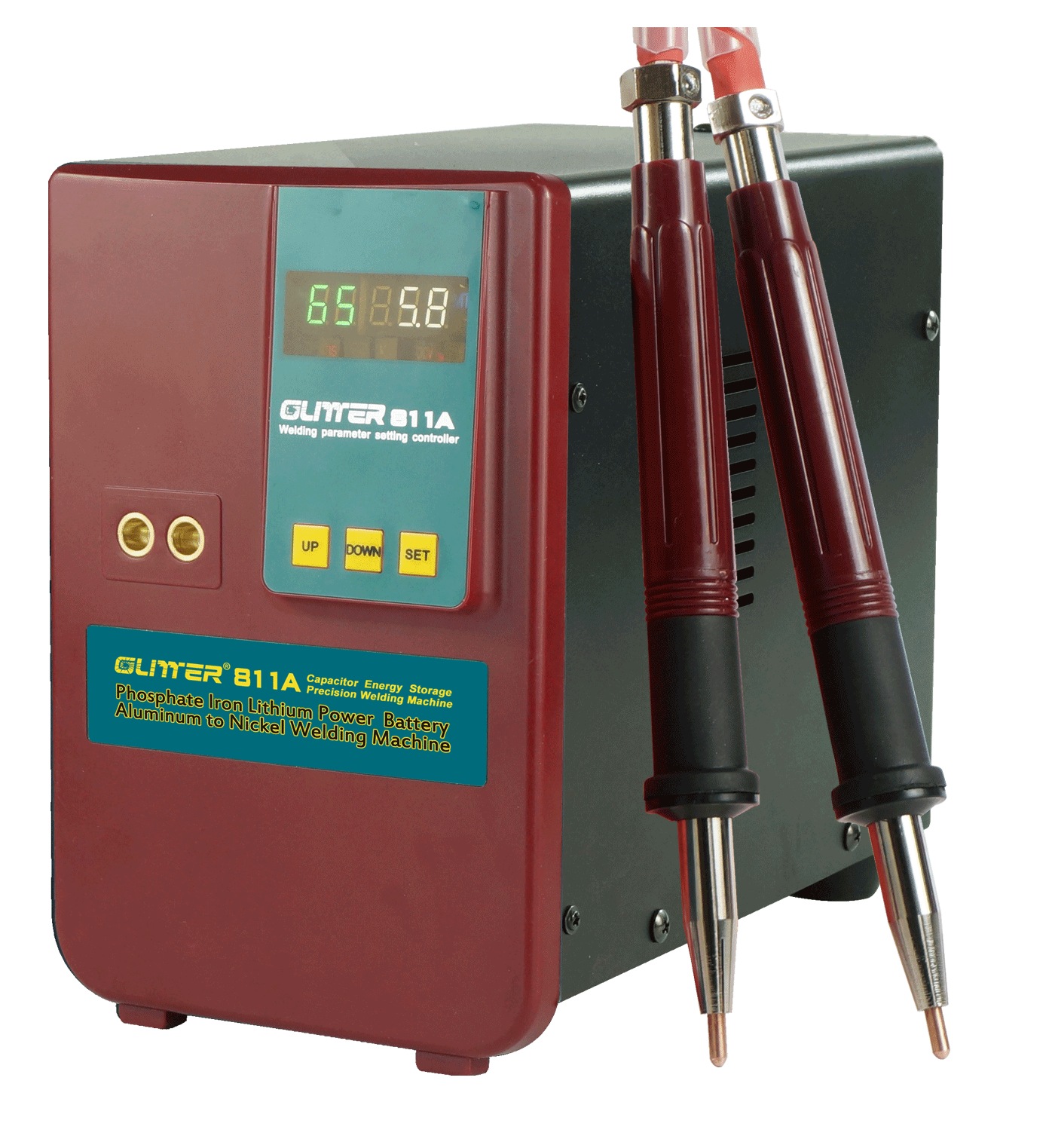

GLITTER SPOT WELDING MACHINE 811A WITH 75B

GLITTER SPOT WELDING MACHINE 811A WITH 75B

GLITTER 811A With 75B Welding Pen – Industrial Intelligent Capacitor Energy Storage Pulse Spot Welding Machine

The GLITTER 811A with 75B Welding Pen is a high-performance industrial intelligent capacitor energy storage spot welding machine specially designed for professional lithium battery pack assembly and precision metal welding applications. Equipped with advanced capacitor energy storage pulse technology, the 811A delivers ultra-high welding power, stable pulse output, and precise welding control for copper, aluminum, nickel, and multi-metal conversion welding tasks.

Designed for industrial battery manufacturing and heavy-duty welding operations, the GLITTER 811A features an intelligent microcomputer-controlled system with real-time welding current monitoring and adjustable energy levels. With powerful 36KW peak output and up to 6000A pulse welding current, the machine can efficiently weld 0.3mm copper sheets with flux and 0.5mm pure nickel strips.

The included 75B/S-75A split welding pen offers high-current low-resistance output with flexible operation for battery packs, large cells, and industrial metal welding applications. The machine supports both automatic trigger (AT) and foot pedal manual trigger (MT) welding modes, allowing users to choose between precision welding and high-speed production work.

Its intelligent digital display provides real-time monitoring of welding voltage, current, pulse energy, and welding parameters, helping operators achieve consistent welding quality and avoid false welds. The capacitor energy storage design minimizes interference with electrical circuits and delivers efficient low-loss high-current pulse discharge performance.

Key Features:

• •Industrial intelligent capacitor energy storage spot welder
• •Includes original GLITTER 75B / S-75A welding pen
• •Powerful 36KW peak pulse welding output
• •Maximum pulse welding current up to 6000A
• •Real-time welding current display and monitoring
• •Intelligent digital control panel
• •Adjustable energy level from 0–99T
• •Supports AT automatic and MT foot pedal welding modes
• •Designed for copper, aluminum, and nickel conversion welding
• •Stable pulse welding with minimal heat loss
• •High-efficiency industrial-grade design
• •Suitable for continuous production welding operations

Applications:

• •18650 / 21700 lithium battery pack building
• •LiFePO4 battery welding
• •EV battery repair and assembly
• •Copper to copper welding
• •Copper to aluminum welding
• •Nickel to aluminum conversion welding
• •Power tool battery manufacturing
• •Industrial metal welding projects
• •UAV and drone battery production

Professional battery-building communities report that the GLITTER 811A is capable of welding copper and nickel sandwich structures effectively when proper welding techniques and flux are used. Some experienced users specifically recommend the 811A for demanding copper and aluminum battery welding applications.
