SPOT WELDING MACHINE SUNKKO 737G+ WITH 73B (8115)

SUNKKO 737G+ Spot Welding Machine with 73B Pen – Precision Welding for Battery Packs

Product Data Sheet

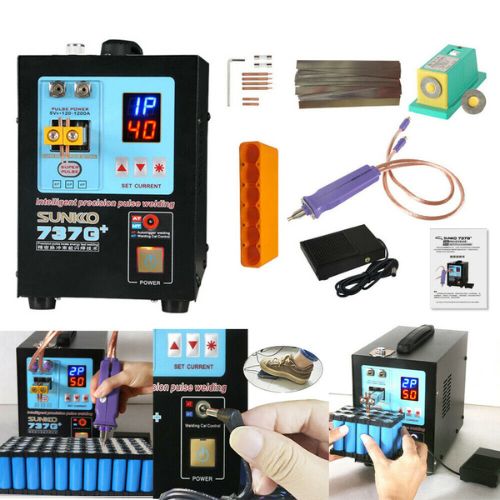

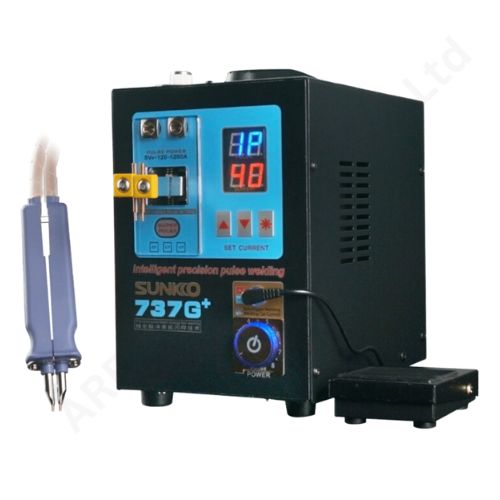

The SUNKKO 737G+ Spot Welding Machine with 73B Pen is a high-performance spot welding machine designed for assembling lithium-ion battery packs, such as 18650, 14500, and 32650 cells. Combining advanced welding technology with the versatile 73B welding pen, it offers precise and reliable spot welding for both professionals and hobbyists.

Key Features

• •

  High Power Output: Equipped with a 4.3KW instantaneous power rating, the 737G+ delivers consistent and strong welding performance, suitable for various battery pack configurations.

• •

  Adjustable Welding Current: Offers a welding current range of 120A to 1200A, allowing for customization based on the specific requirements of the welding task.

• •

  Dual Pulse Modes: Supports multiple pulse settings:

  • •2 Pulse: 1–10ms
  • •4 Pulse: 2–20ms
  • •8 Pulse: 8–80ms
• •

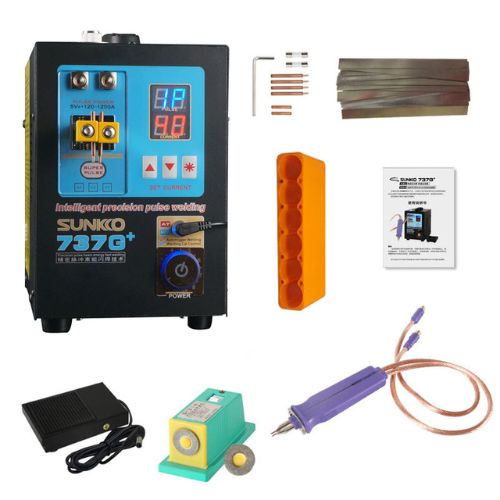

  Welding Head Options:

  • •Fixed Welding Head: Suitable for welding nickel strips up to 0.35mm thick.
  • •Welding Pen (73B): Enables precise welding in tight spaces, with a total length of approximately 700mm.
• •

  Adjustable Telescopic Arm: The arm extends from 95mm to 160mm, providing flexibility and precision in positioning the welding head.

• •

  Integrated Soldering Iron:

  • •Temperature Range: 150°C–450°C
  • •Power: 50W
  • •Output Voltage: 20V DC
• •

  Compact & Portable Design:

  • •Dimensions: 245mm x 140mm x 200mm
  • •Weight: Approximately 6.95kg

Technical Specifications

• •Input Voltage AC 110V/220V ±10%
• •Power Output 4.3KW (Instantaneous)
• •Welding Current 120A–1200A
• •Pulse Time (2 Pulse) 1–10ms
• •Pulse Time (4 Pulse) 2–20ms
• •Pulse Time (8 Pulse) 8–80ms
• •Welding Thickness 0.05–0.35mm (Fixed Head)<br>0.05–0.2mm (Welding Pen)
• •Telescopic Arm Length 95–160mm
• •Soldering Iron Temp 150°C–450°C
• •Soldering Iron Power 50W
• •Dimensions 245mm x 140mm x 200mm
• •Weight 6.95kg

Applications

• •

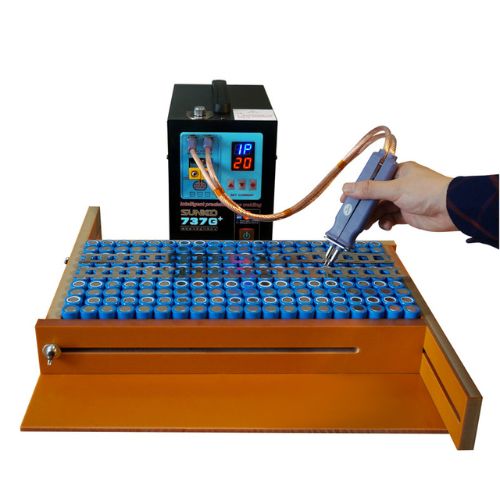

  Battery Pack Assembly: Ideal for assembling 18650, 14500, and 32650 lithium-ion battery packs.

• •

  Nickel Strip Welding: Suitable for welding nickel strips up to 0.35mm thick.

• •

  Device Charging: Utilize the integrated soldering iron for soldering wires onto battery terminals.

• •

  DIY Projects: Perfect for hobbyists and professionals working on custom battery solutions.

The SUNKKO 737G+ spot welding machine is a reliable and efficient tool for assembling lithium-ion battery packs. With its adjustable settings, dual pulse modes, and integrated soldering functions, it caters to both professionals and hobbyists seeking precision in their welding tasks.
