SUNKKO SPOT WELDING MACHINE 788S-PRO

SUNKKO 788S-PRO Spot Welding Machine - Advanced Precision for Battery Pack Assembly

Product Data Sheet

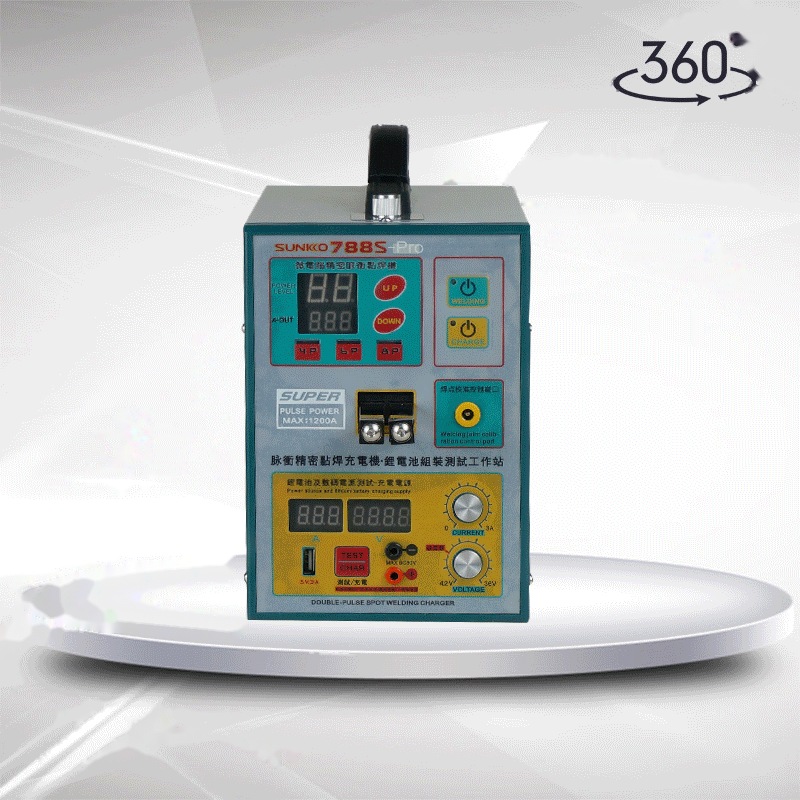

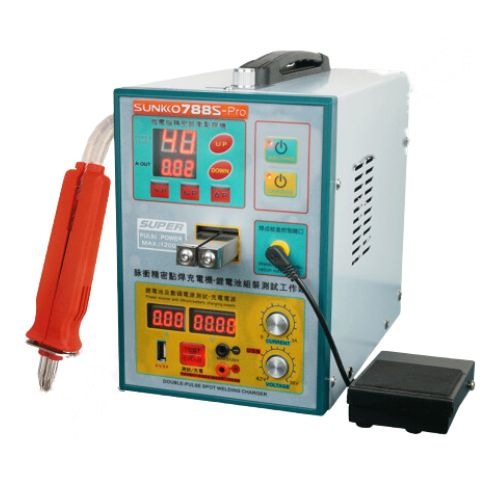

The SUNKKO 788S-PRO is a high-performance spot welding machine designed for assembling lithium-ion battery packs, such as 18650, 14500, and 32650 cells. Combining advanced welding technology with versatile welding pens, it offers precise and reliable spot welding for both professionals and hobbyists.

Key Features

• •

  High Power Output: Equipped with a 3.2KW instantaneous power rating, the 788S-PRO delivers consistent and strong welding performance, suitable for various battery pack configurations.

• •

  Adjustable Welding Current: Offers a welding current range of up to 1200A, allowing for customization based on the specific requirements of the welding task.

• •

  Multiple Pulse Modes: Supports various pulse settings:

  • •1 Pulse: 0.5-5ms
  • •2 Pulse: 1-10ms
  • •18 Pulse: 0-80ms
• •

  Welding Head Options:

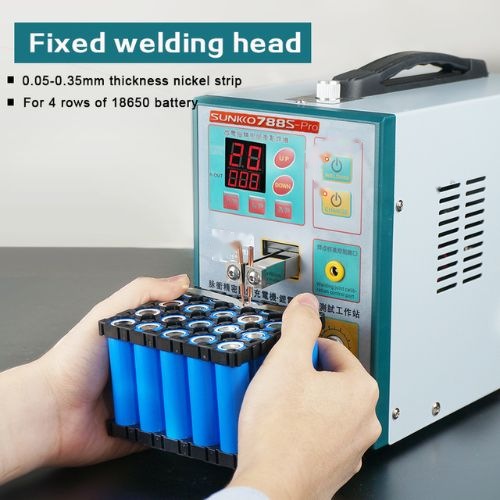

  • •Fixed Welding Head: Suitable for welding nickel strips up to 0.35mm thick.

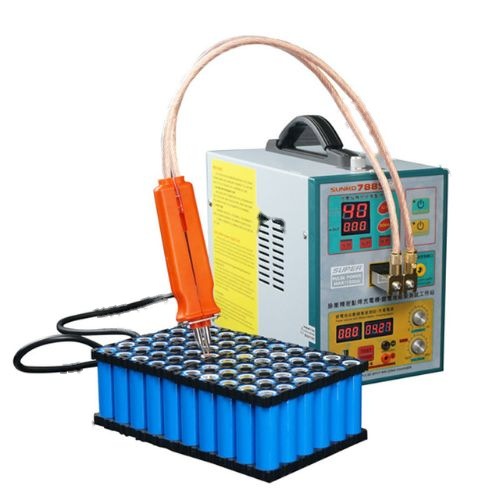

  • •Welding Pen (70B/71A/71B): Enables precise welding in tight spaces, with a total length of approximately 700mm.
• •

  Integrated Soldering Iron:

  • •Temperature Range: 150°C-450°C
  • •Power: 50W
  • •Output Voltage: 20V DC
• •

  Compact & Portable Design:

  • •Dimensions: 245mm x 140mm x 200mm
  • •Weight: Approximately 6.95kg

Technical Specifications

• •Product Name: SPOT WELDING MACHINE (SUNKKO)
• •Model: 788S-PRO
• •Input Voltage AC 110V/220V ±10%
• •Power Output 3.2KW (Instantaneous)
• •Welding Current Up to 1200A
• •Pulse Time (1 Pulse) 0.5-5ms
• •Pulse Time (2 Pulse) 1-10ms
• •Pulse Time (18 Pulse) 0-80ms
• •Welding Thickness 0.05-0.35mm (Fixed Head)<br>0.05-0.2mm (Welding Pen)
• •Soldering Iron Temp 150°C-450°C
• •Soldering Iron Power 50W
• •Dimensions 245mm x 140mm x 200mm
• •Weight 6.95kg

Applications

• •

  Battery Pack Assembly: Ideal for assembling 18650, 14500, and 32650 lithium-ion battery packs.

• •

  Nickel Strip Welding: Suitable for welding nickel strips up to 0.35mm thick.

• •

  Device Charging: Utilize the integrated soldering iron for soldering wires onto battery terminals.

• •

  DIY Projects: Perfect for hobbyists and professionals working on custom battery solutions.

The SUNKKO 788S-PRO spot welding machine is a reliable and efficient tool for assembling lithium-ion battery packs. With its adjustable settings, multiple pulse modes, and integrated soldering functions, it caters to both professionals and hobbyists seeking precision in their welding tasks.
