SUNKKO SPOT WELDING MACHINE A330H

SPOT WELDING MACHINE SUNKKO A330H

Product Data Sheet

SUNKKO A330H Series Gantry-style Pneumatic Battery Spot Welder – Capacitor Energy Storage Pulse Welding Machine

The SUNKKO A330H Series Gantry-style Pneumatic Battery Spot Welder is a super high-power industrial capacitor energy storage pulse welding machine specially designed for lithium battery pack manufacturing, energy storage systems, EV battery production, and heavy-duty metal welding applications. Equipped with advanced capacitor energy storage pulse technology and a precision gantry pneumatic welding structure, the A330H delivers extremely stable, accurate, and powerful welding performance for professional industrial production environments.

The A330H features an ultra-high 42KW pulse output with maximum welding current up to 7000A, making it suitable for welding thick pure nickel, nickel-plated strips, copper materials, LiFePO4 battery connections, and high-capacity lithium battery packs. Its advanced microcomputer-controlled system ensures precise pulse energy control, consistent welding quality, and minimal heat damage during continuous operation.

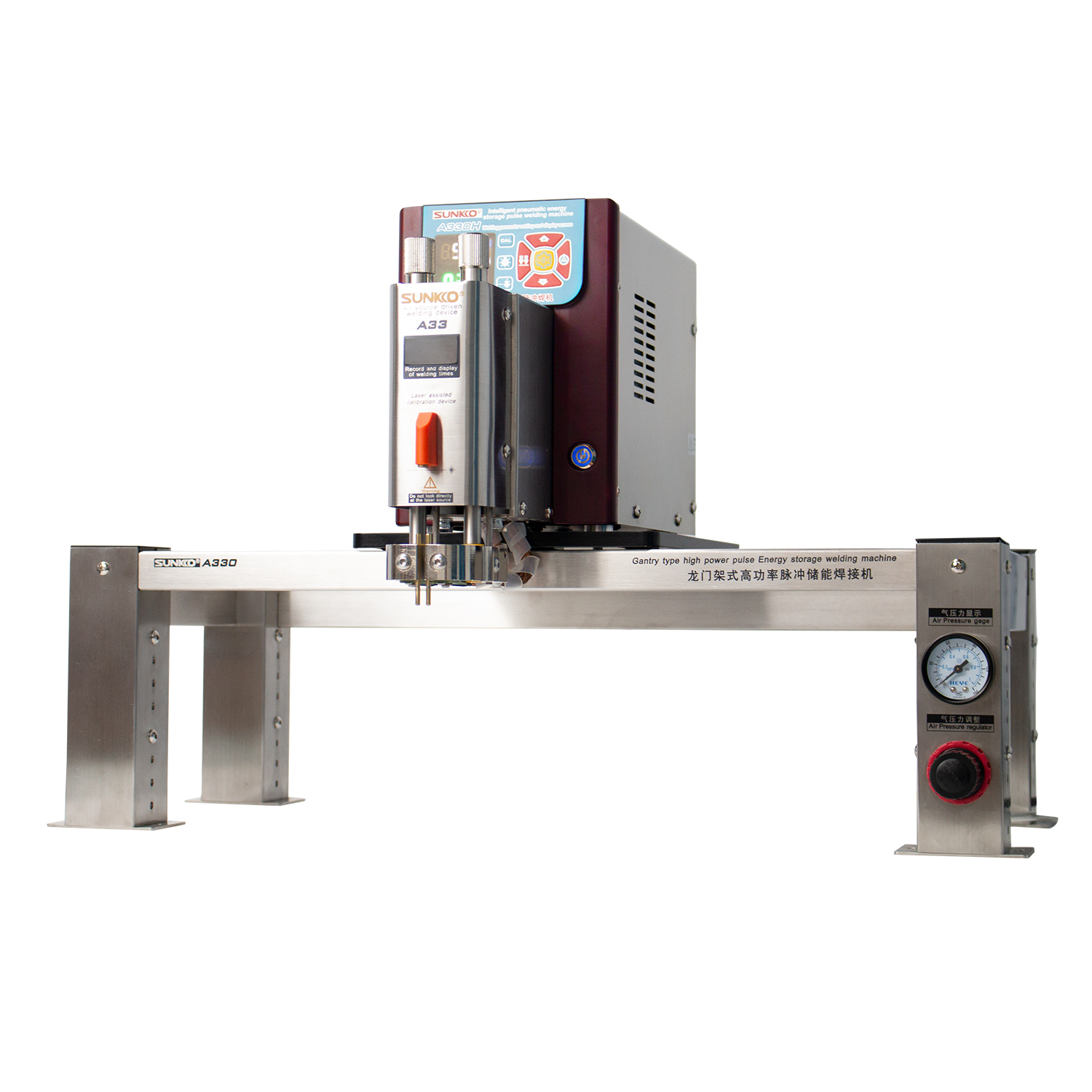

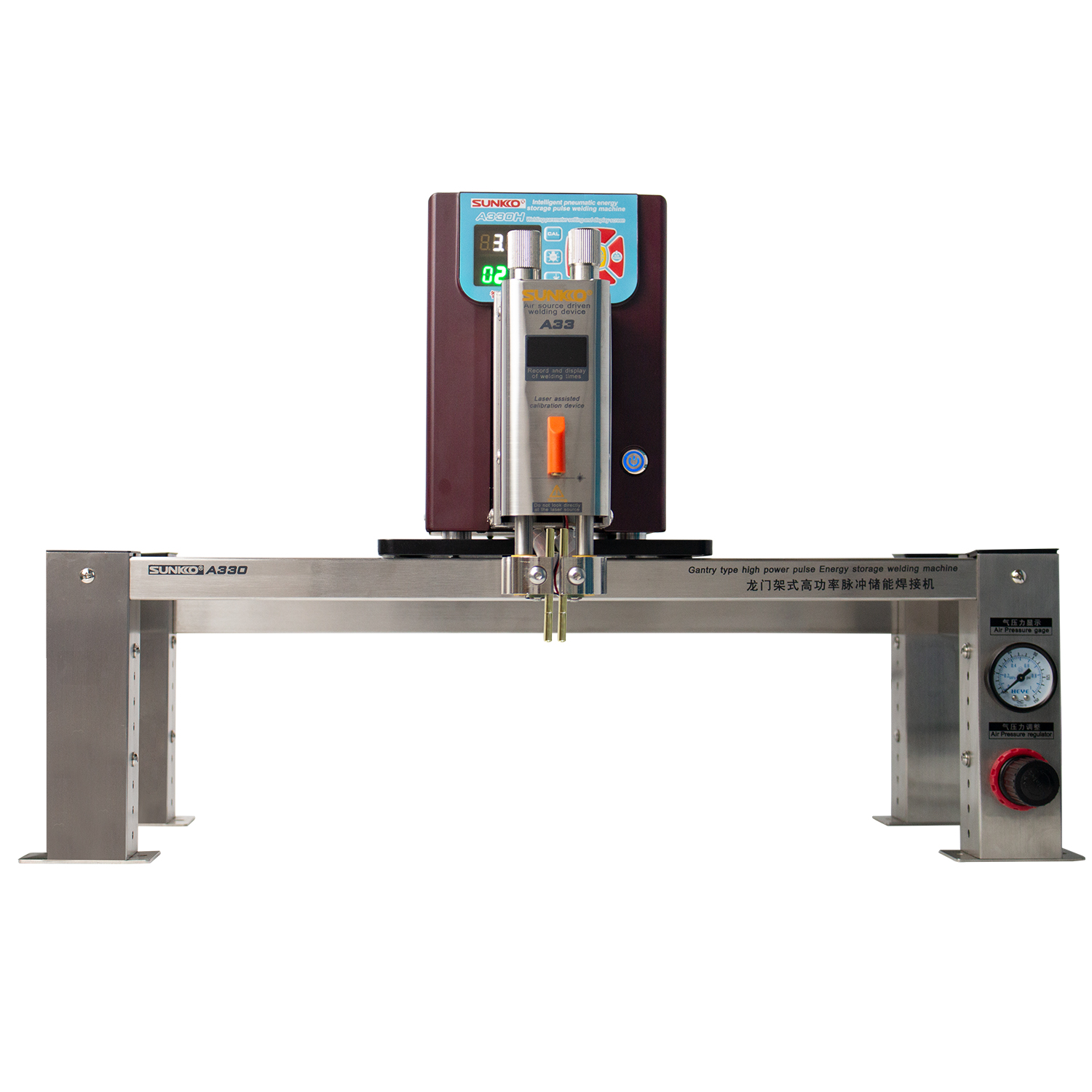

Designed with a durable 304 stainless steel gantry frame, the machine offers exceptional stability and adjustable height positioning for different battery pack sizes and welding applications. The pneumatic welding head uses buffering technology that independently adjusts welding needle pressure, reset speed, and downward pressing speed for improved welding precision and reliability.

The integrated laser red dot alignment system helps operators achieve fast and accurate welding positioning, while the LED welding needle lighting system improves visibility during detailed work. A real-time digital LED display monitors voltage and current output to help users evaluate welding quality during operation.

Key Features:

• •Industrial gantry-style pneumatic spot welding machine
• •Advanced capacitor energy storage pulse welding technology
• •Ultra-high 42KW pulse power output
• •Maximum welding current up to 7000A
• •Precision microcomputer-controlled welding system
• •Adjustable welding energy level (00–99)
• •Semi-automatic continuous spot welding function
• •Laser red dot alignment positioning system
• •LED welding needle lighting device
• •Real-time voltage and current monitoring display
• •Adjustable pneumatic welding head pressure and speed
• •Heavy-duty 304 stainless steel gantry frame
• •Intelligent cooling system for long-term production use
• •Suitable for pure nickel, nickel-plated strip, and copper welding

Applications:

• •18650 / 21700 / 26650 lithium battery pack building
• •LiFePO4 battery manufacturing
• •EV battery production
• •Energy storage battery assembly
• •Power tool battery pack production
• •Drone and UAV battery welding
• •Industrial metal spot welding
• •Copper and nickel welding applications

The SUNKKO A330H Series is an ideal solution for professional battery manufacturers and industrial workshops requiring ultra-high power, precise control, and reliable continuous welding performance for large lithium battery pack production and heavy-duty welding applications.
