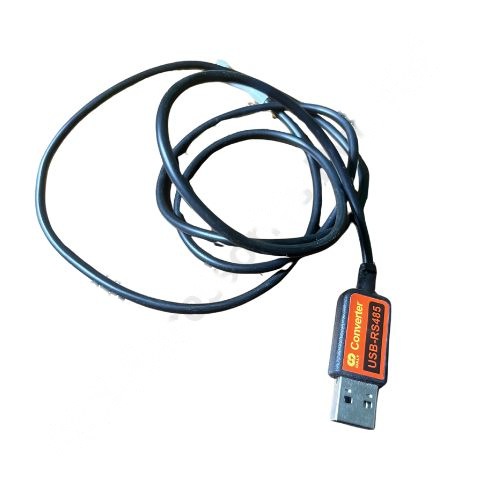

USB TO RS485 DALY (K TYPE) (8596)

The USB to RS485 (K-Type) Converter Cable is a compact and reliable interface converter designed to connect industrial-grade RS485 devices to modern computers via a USB port. This cable provides seamless and efficient data communication between a PC and RS485-based equipment such as DALY BMS units, inverters, energy meters, and other serial communication-based hardware.

KEY FEATURES

• •

  Interface Compatibility: Converts standard USB (Type-A) signals to RS485 protocol, enabling integration with legacy and modern systems.

• •

  K-Type Connector (DALY BMS Compatible): Specifically designed for use with DALY BMS systems and other devices using the K-type communication interface, offering a secure and reliable connection.

• •

  Plug-and-Play Operation: No external power supply required. Supports plug-and-play functionality with automatic installation on most Windows, macOS, and Linux systems.

• •

  Robust Cable Design: Durable outer sheath and strain relief protection ensure long-term stability in industrial environments.

• •

  High-Speed Communication: Supports baud rates up to 1 Mbps with automatic direction control for RS485 data flow.

• •

  LED Indicators (Optional, if applicable): Some versions may feature built-in LEDs for TX/RX status monitoring (check variant specifications).

Specifications

• •

  Input: USB 2.0 Type-A (Male)

• •

  Output: RS485 (K-Type Connector)

• •

  Cable Length: Approx. 1 meter

• •

  OS Support: Windows XP/7/8/10/11, macOS, Linux

• •

  Driver Support: FTDI / CH340 / CP2102 (depending on chipset version)

Applications

Battery Management Systems (BMS) – especially DALY BMS units Solar inverters and power monitoring equipment PLC and SCADA communication Industrial automation and data acquisition systems HVAC and Building Management Systems

Use Cases

Commissioning: Program custom over‑charge/discharge profiles. Diagnostics: Track cell imbalance or fault histories accurately. Networked Systems: Manage multiple BMS units across a facility with single USB interface.
