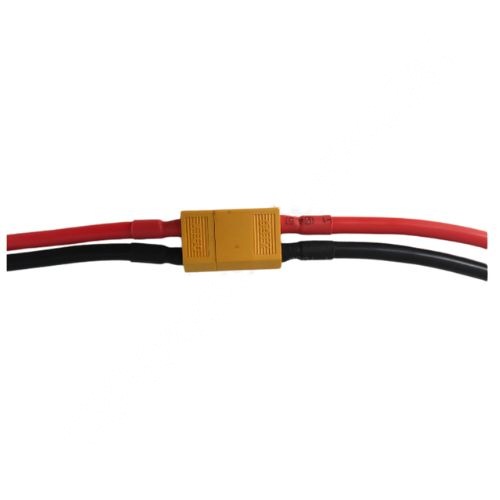

XT60 MALE+FEMALE (WITH 12AWG 150MM WIRE) (8361)

The XT60 connector is renowned in the battery and electronics world for its tight contact design, ensuring minimal resistance and heat generation. The included wires are 12 AWG silicone wires, providing excellent current capacity and flexibility even in high-temperature or tight installation areas.

This version is pre-soldered and insulated, giving you a ready-to-use power line that saves time and improves wiring consistency across your power distribution systems.

---

Key Features

• •

  Genuine XT60 Male & Female Pair Ensures a reliable and tight connection for all battery and ESC interfaces.

• •

  High-Quality 12 AWG Silicone Wire (150mm) Pure copper stranded wires offer low resistance and high conductivity, ideal for up to 60A continuous current.

• •

  Heat & Shock-Resistant Nylon Housing XT60 connectors are made from durable, flame-retardant materials to prevent melting or deformation under load.

• •

  Plug-and-Play Convenience Pre-attached and professionally soldered wire segments minimize setup time and errors.

• •

  Color-Coded Polarity (Red + / Black -) Easy identification and reverse-polarity protection with correct pairing.

---

Technical Specifications

Specification	Details
Connector Type	XT60 Male + Female (Gold Plated)
Wire Type	12 AWG Silicone Insulated Copper Wire
Wire Length	150mm (Each Connector)
Rated Voltage	DC up to 500V
Current Capacity	Continuous: 60A / Peak: 100A
Temperature Range	-20°C to 120°C
Applications	BMS, EV Battery, Drones, Robotics, Solar

---

Applications

• •Lithium-ion Battery Packs (3S–16S)
• •DIY EV & e-bike battery systems
• •Solar charging connections
• •RC helicopters, drones, and boats
• •Battery Management Systems (BMS)
• •Power tool and robotic applications

---

Package Contents

• •1 x XT60 Male Connector with 150mm 12AWG wire (Red & Black)
• •1 x XT60 Female Connector with 150mm 12AWG wire (Red & Black)

---
